Electronics Design Service

Drawing on its in-house motor control development board “VIPER”, 3T crafted a high-performance solution for the next generation of battery-powered rescue equipment. This ambitious project entailed the creation of an exceptionally efficient and innovative sensorless motor control system, enabling ultra-smooth and powerful operation.
Additionally, the self-contained device needed to be submersible and capable of withstanding the most challenging conditions.

Our innovative multi-sensor module revolutionizes environmental sensing in office spaces. This compact, ceiling-mounted solution may resemble a standard motion detector used for light switching, but it offers much more.

Equipped with a range of sensors, this module comprehensively monitors the office environment. It provides precise measurements of local temperature, humidity, CO2 levels, and VOC concentration. In addition, it captures sound and light levels, enhancing its capabilities.

Furthermore, it incorporates an infrared sensor to measure desk temperatures, enabling precise local climate control. This cutting-edge design communicates via Bluetooth low energy, facilitating personal location beaconing. Remarkably, it maintains energy efficiency with an AC mains power consumption as low as 0.25 W.

The Sirius Pintuition System presents an innovative solution for breast cancer surgery. The procedure involves the insertion of a tiny titanium-encased magnet into the tumor using a needle. To assist the surgeon further, a specialized rod is introduced through a small incision in the breast. This rod detects the magnetic field and offers valuable guidance during the surgical process. Notably, this innovative approach enhances cosmetic outcomes and facilitates more breast-conserving surgeries.

Throughout the system's development, 3T spearheaded the electronic aspects, addressing challenges in accurately detecting and interpreting the magnetic field. Collaborating with a third-party provider, we devised sophisticated mathematical algorithms for precise positioning.

As a result, the device's screen now provides real-time information, displaying the distance between the rod and the magnetic seed in millimeters, proving to be a vital asset during surgery.

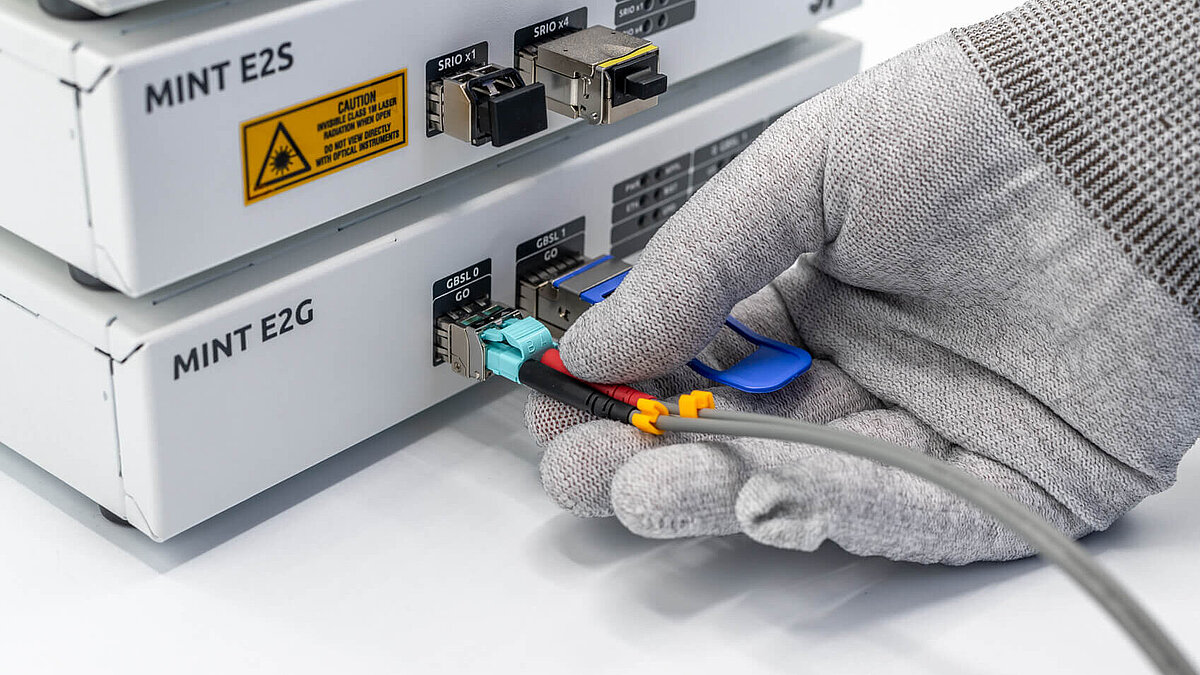

MINT, short for Multi INTerface, is a versatile development tool known for its high-speed solution capabilities.

Inside the development board MINT, you'll find an Intel Arria V SoC, a powerful fusion of an FPGA and a Dual-core ARM CortexTM-A9 MPCoreTM. This unique combination harnesses the computing power of an FPGA and the adaptability of software on an ARM-based hard processor system (HPS). All interfaces are readily accessible from both the FPGA and the ARM-based HPS.

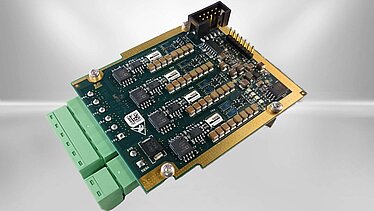

PEPPER, our cutting-edge development board, houses an exceptionally precise digital amplifier. This 4-channel platform boasts state-of-the-art Gallium-Nitride (GaN) FETs, offering unprecedented control over both voltage and current outputs.

Highly versatile, the power converter development board accommodates a wide range of load impedances, from capacitive to inductive.

The motor control development board VIPER represents an electronic speed controller capable of delivering up to 1kW, ideal for motors with a supply voltage of 8 to 80V. The motor control solutions incorporates a robust processor, an intelligent FET driver, and discrete power stages. The strength of this building block lies in its full customization potential, making it a perfect fit for a wide array of applications.

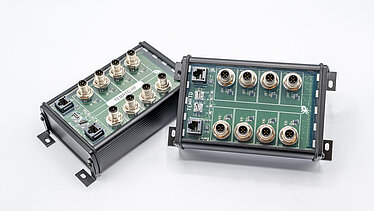

OCTOPUS is a robust and modular  I/O test platform. It offers comprehensive trigger functionality, enabling the execution and control of diverse test scenarios. OCTOPUS seamlessly interfaces with various programming environments, including Python scripts, LabVIEW, or MATLAB applications, enhancing its versatility and usability.
