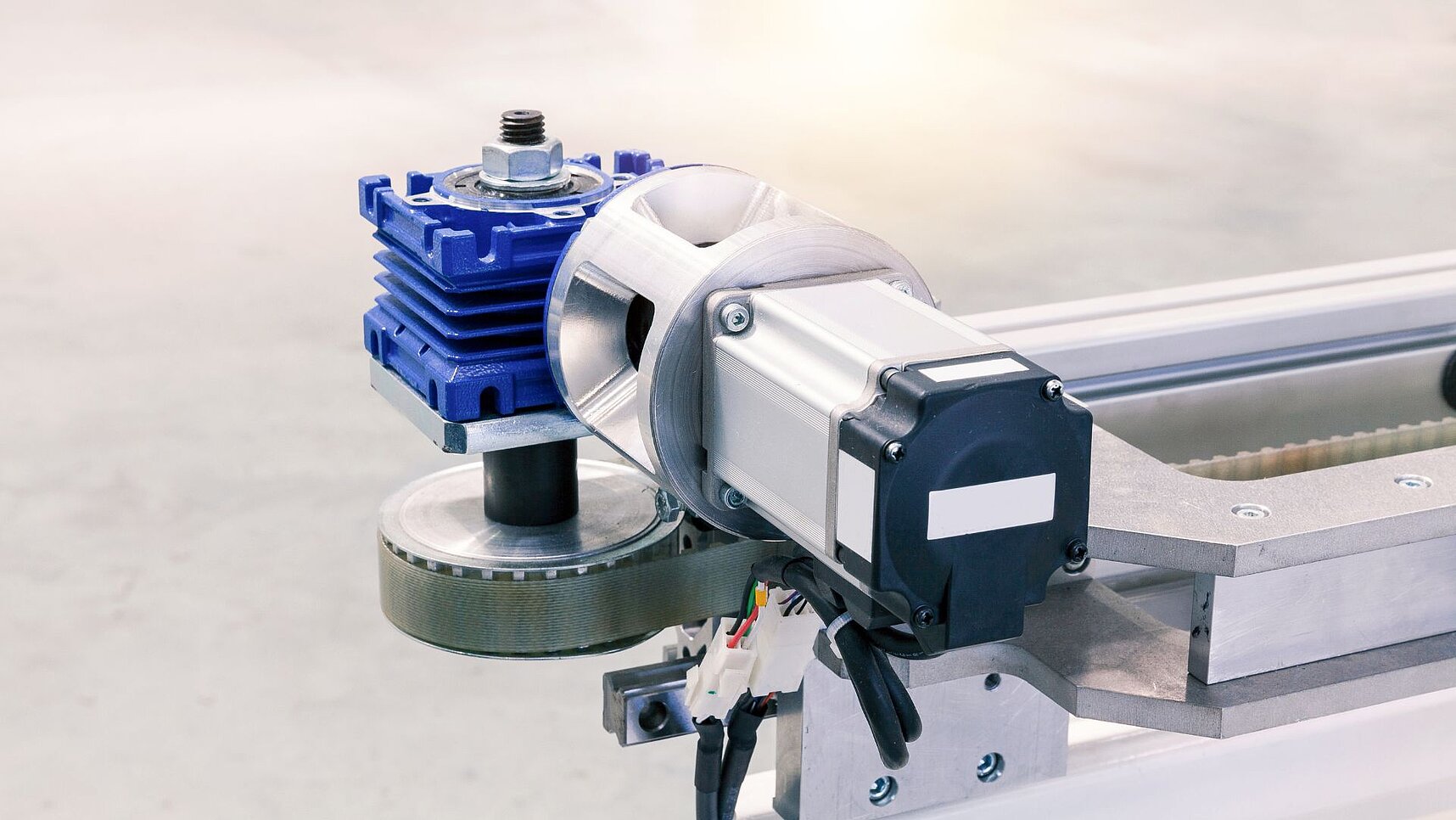

Electromagnetic Brakes for Small Motors

Our electromagnetic brakes & clutches are compact, yet deliver the precise performance and high reliability essential for demanding applications and tight spaces. Ideal for small motors used in a variety of industries, these brakes provide optimal safety and operational control in the most restricted spaces.

Benefits include

Flexible integration: Suitable for different mounting options, either integrated or externally mounted
Space-saving design: Saves space without sacrificing performance
High power density: Extraordinary performance in a compact form factor

The application determines the brake

There are two electromagnetic braking principles that can be used in servo motors: permanent magnet brakes (integrated mounting) and spring-applied brakes (integrated or external mounting). The choice between these two systems depends on the specific requirements of the application.

Seamless integration into small electric drives for automated guided vehicles, providing navigation support, controlled stopping, and precision braking in confined environments.

Further applications:

Roller drives
Tubular motors
Postal automation
Vending machines & rotor spinning machines
Laser cutters
Loading ramps
Stairlifts
Gripper machines

Reliable brake solutions for secure operation in electric bollard systems, enabling controlled extension and retraction, fail-safe holding, and secure positioning.

Further applications:

Blind drive
Cash dispensers & Banknote counters
High-speed doors
Holding function for work tables, tripods, guides & more
Shopping trolleys
Turnstiles & people guidance systems

Precision brakes for continuous and reliable machine operation in packaging processes, enabling precise folding, high-speed dependability and consistent performance.

Further applications:

Paper cutting machines
Document scanners and sorters
Conveying technology

Compact and reliable braking for agricultural robots and machinery used in various field tasks, such as planting seeds accurately, efficient weeding, and controlled harvesting.

Further applications:

Electric garden tools
Electric vehicles
Robotic grippers
Automatic stable doors
Suction robots
Mowing robots

Safe and precise braking for medical devices used in surgical settings, ensuring equipment positioning, patient safety, and fine adjustment control.

Further applications:

Patient chair & dentist's chair
Mobile X-ray units
Tripods
Microscopes & telescopes
Optical devices
E-Rollator & rolektro
Wheelchairs & E-wheelchairs

Smooth and efficient braking for electric golf trolleys, enabling safe handling on uneven terrain, including controlled speed, gentle braking and improved maneuverability.

Further applications:

Looms
Photocopiers
Plotters
Automatic pool covers
Professional hammer drills
Bar loading magazines
Commercial kitchen machines
Traverse drive for telescopic roofing system
Power Tools
Construction tools

Torque range 0.3 Nm to 3.6 Nm
Sizes 39 mm to 65 mm available
Torque transmission without torsional
Versatile usage: with different constructions of the stator and armature

Discover our INTORQ 14.100

Torque range 0.6 Nm to 4.5 Nm
Sizes 39 mm to 65 mm available
Different types of armatures
Tailor-made designs

Discover our INTORQ 14.110

Kendrion Servo Slim Line spring-applied brake is used in automated guided vehicles and robotics

Torque range from 0.27 Nm to 8 Nm
Sizes from 32 mm to 127 mm available
Suitable for hollow shaft motors
Temperature range from -10°C to +100°C

Discover our servo slim line size 1-5

Torque range 0.24 Nm to 4 Nm
Sizes 37 mm to 75 mm available
Flat, space saving design
Best suited for small DC motors

Discover our INTORQ BFK551 size 1-5

Kendrion HT Line permanent magnet brake for use in industrial robots and automation

Torque range 0.1 Nm to 280 Nm
Sizes from 19.3 mm to 205 mm available
Highest power density in small installation space
Extended temperature range down to -40°C possible

Discover our high torque line size 1-5

Kendrion PM Line permanent magnet brake for use in industrial robots and wind power

Torque range 0.01 Nm to 240 Nm
Sizes 14 mm to 200 mm available
Residual torque-free opening
Temperature range from -5°C to +120°C

Discover our pm line size 1-5

Kendrion Servo Line spring-applied brakes for integrated installation in servo motors

Torque range 0.27 Nm to 70 Nm
Sizes from 32 mm to 164 mm available
High power density due to patented air gap adjustment
Standard temperature range from -15°C to +120°C

Discover our servo line size 1-5

Our Brake Expert is here to help you. Get in Touch Today.

brake expert mail

Kendrion PM Line smallest permanent magnet brake in the world for use in small electric motors.

...at 14 mm in diameter, the smallest permanent magnet brake in the world is smaller than a 1-cent coin and therefore fits into the smallest electric motors?

Learn more about our PM LIne

Benefits at a glance

compact design
high safety due to currentless braking
low energy consumption due to overexcitation
high lateral force carrying capacity

Learn more about our emergency solenoid arrestor
