Electromagnetic Solutions for Automation

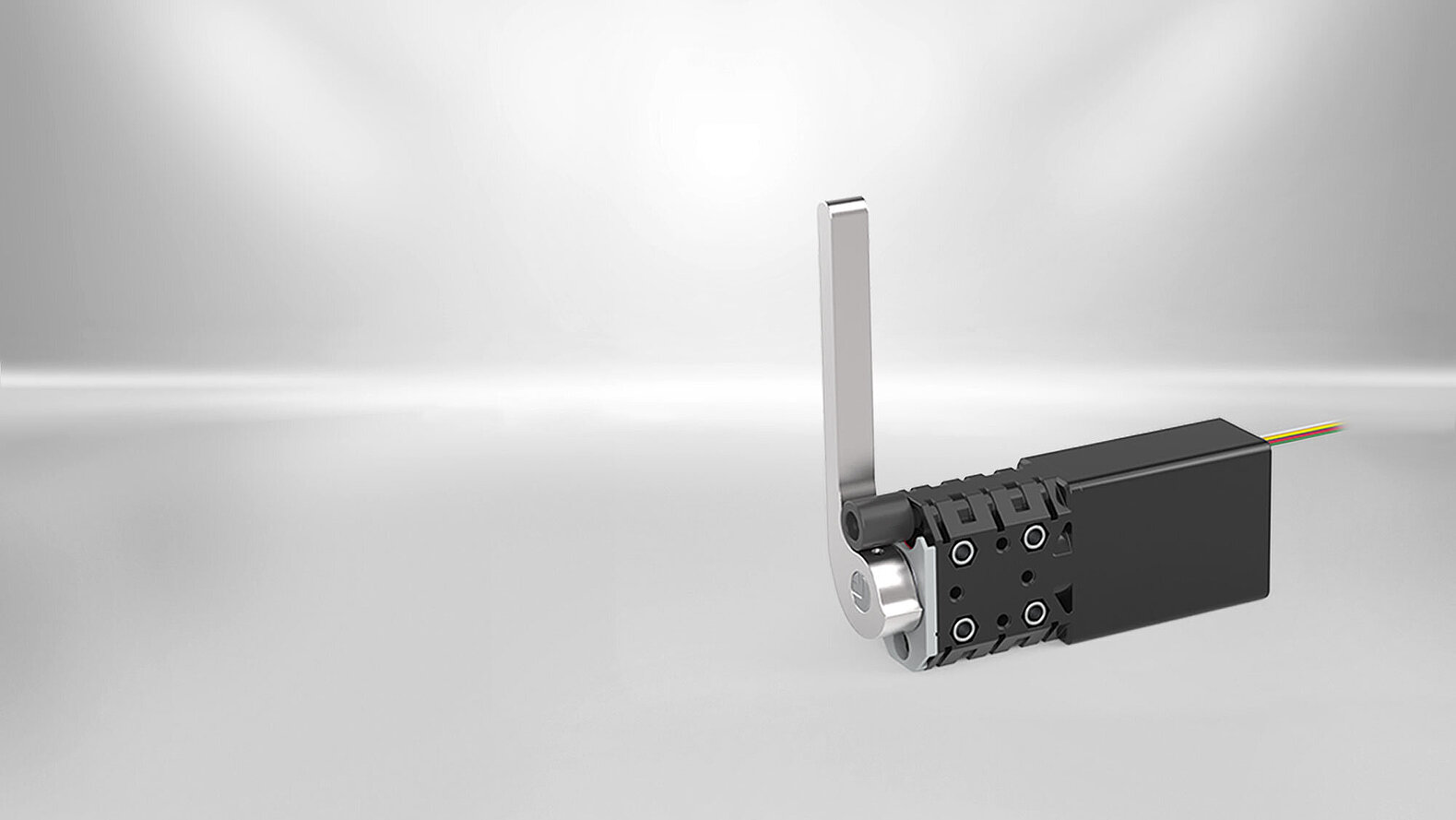

The shuttle finger rotary module based on a Kendrion rotary solenoid is specially designed for use as a stop/release slider in shuttle systems. The module consists of a bistable rotary solenoid that reliably and quickly performs a 90 degree rotary movement and has been extended with a robust, finger-shaped slider. The holding function of the end positions ensures that the respective position is maintained even without a power supply, so that the overall system impresses with its low power consumption.

Curious now?

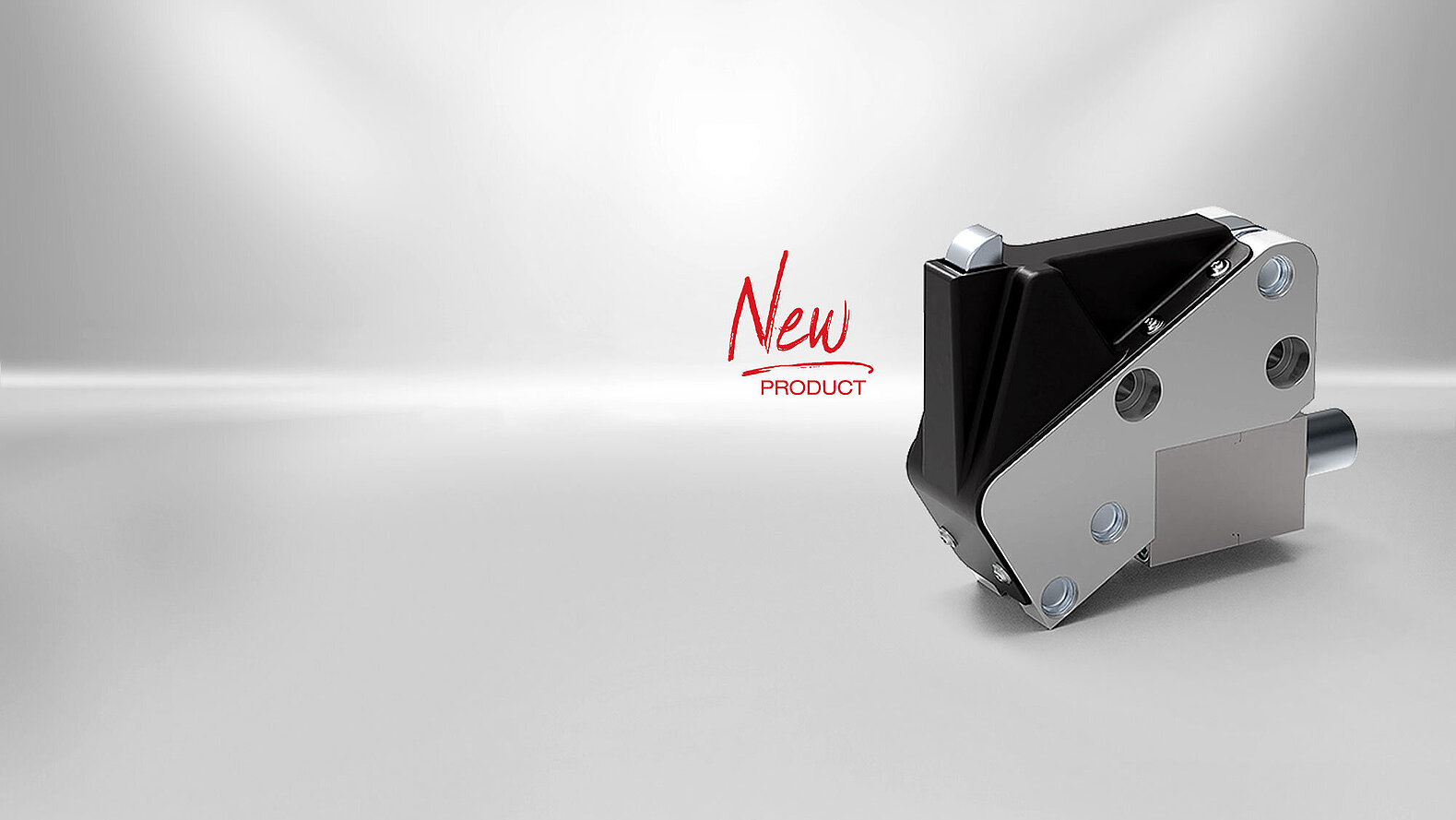

The new Kendrion pallet stop impresses with its outstanding product properties and enables compressed air-free and therefore clean and quiet operation of your transport system. In addition to its high reliability and robustness, the electro-mechanical actuated stopper from Kendrion offers simple control and the optional integration of sensors.

Want to learn more about the Kendrion Pallet Stop?

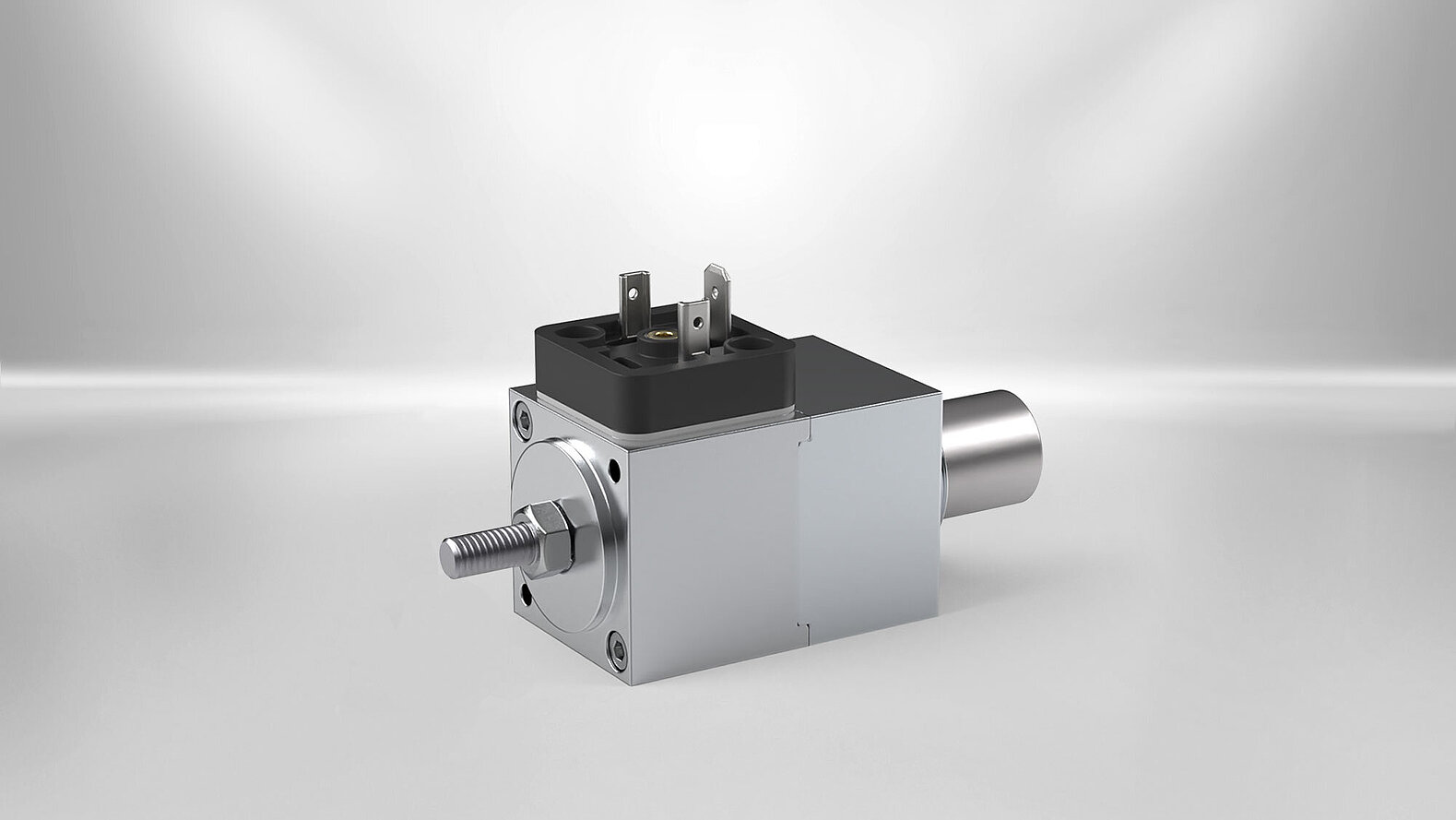

High Performance Solenoids are available in different versions with a stroke between 5 - 20 mm and a force between 5 - 120 N.

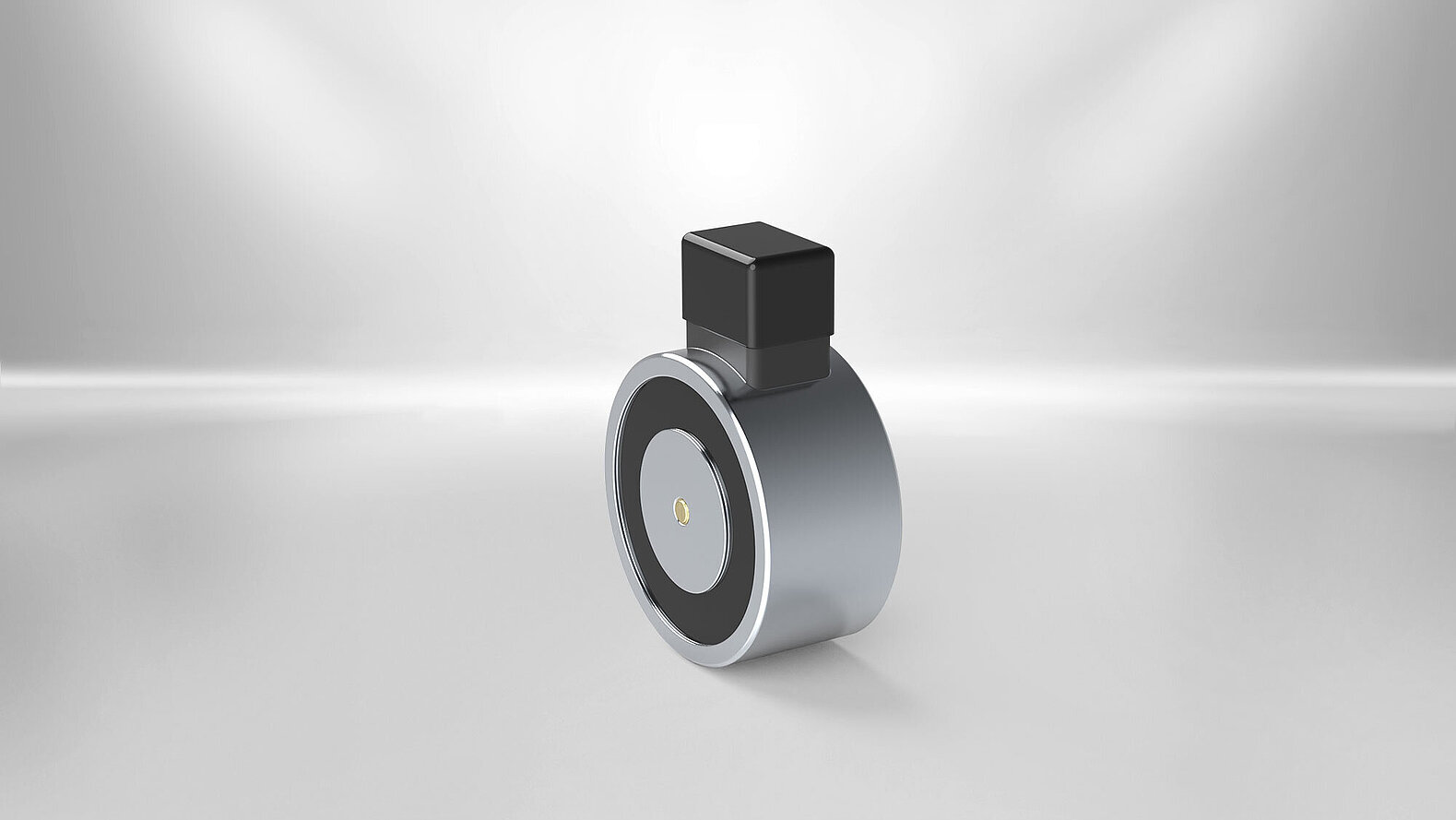

Electromagnetic holding magnets are available in many different sizes and with forces between 36 and 30.000 N.

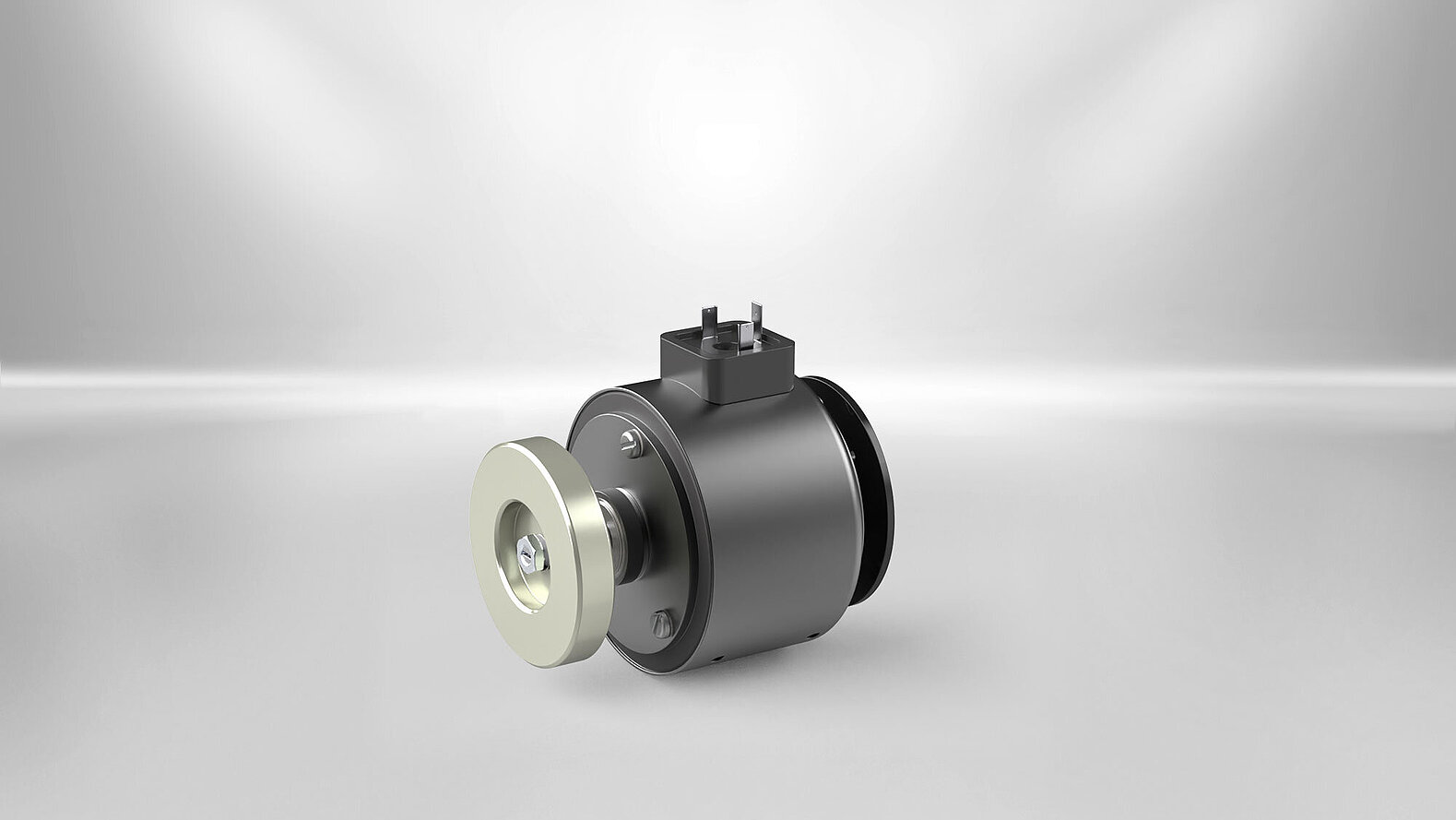

The Electromagnetic Linear Oscillator OLV has a closed design and a plug-in system. The oscillating solenoid can be used universally - it shows its advantages, particularly for funnel feeding or as a pump and metering drive.

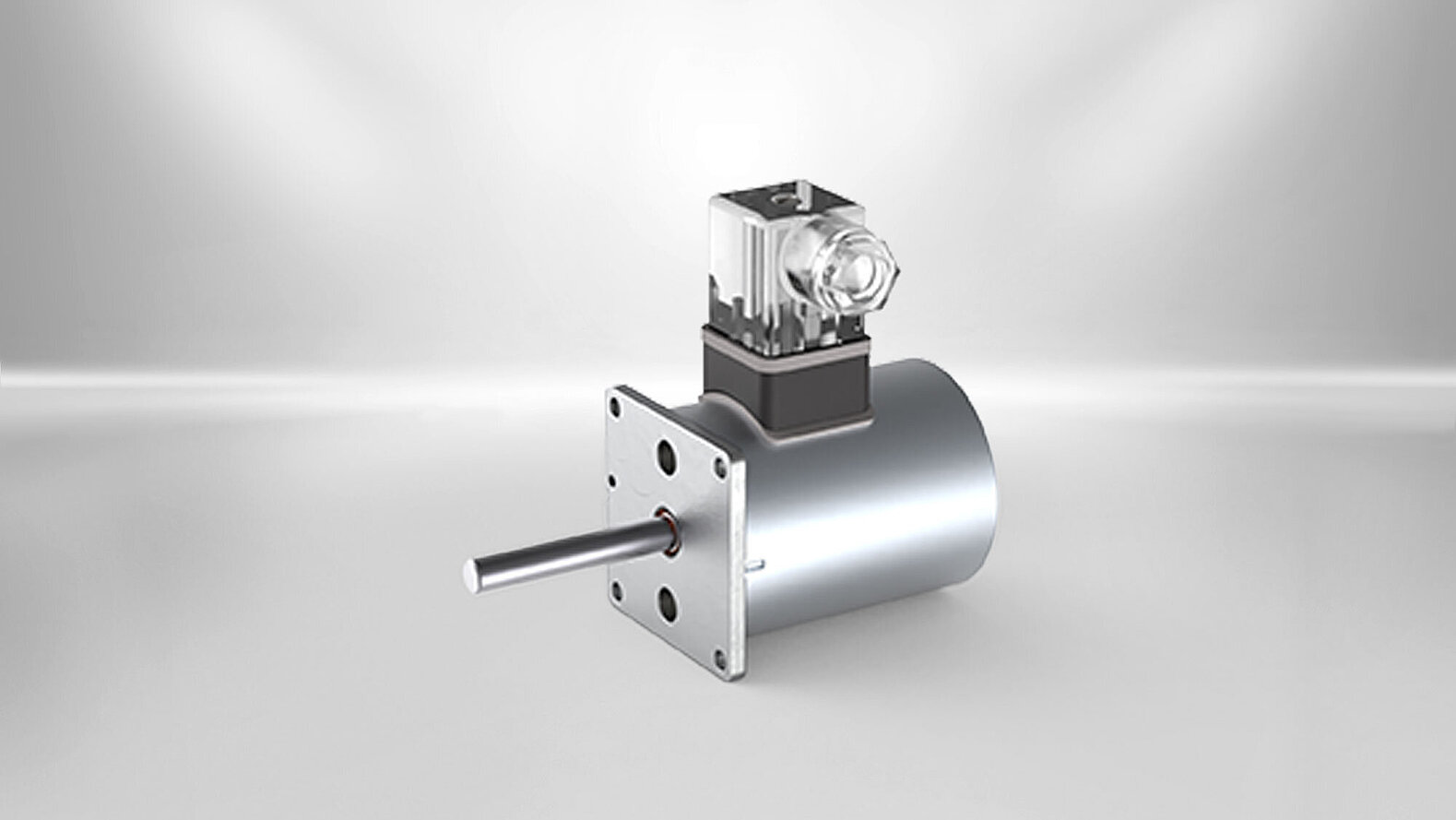

Bistable rotary solenoids are available in different versions with a switching time of less than 20 ms and a holding torque between 0.1 - 1 Nm.

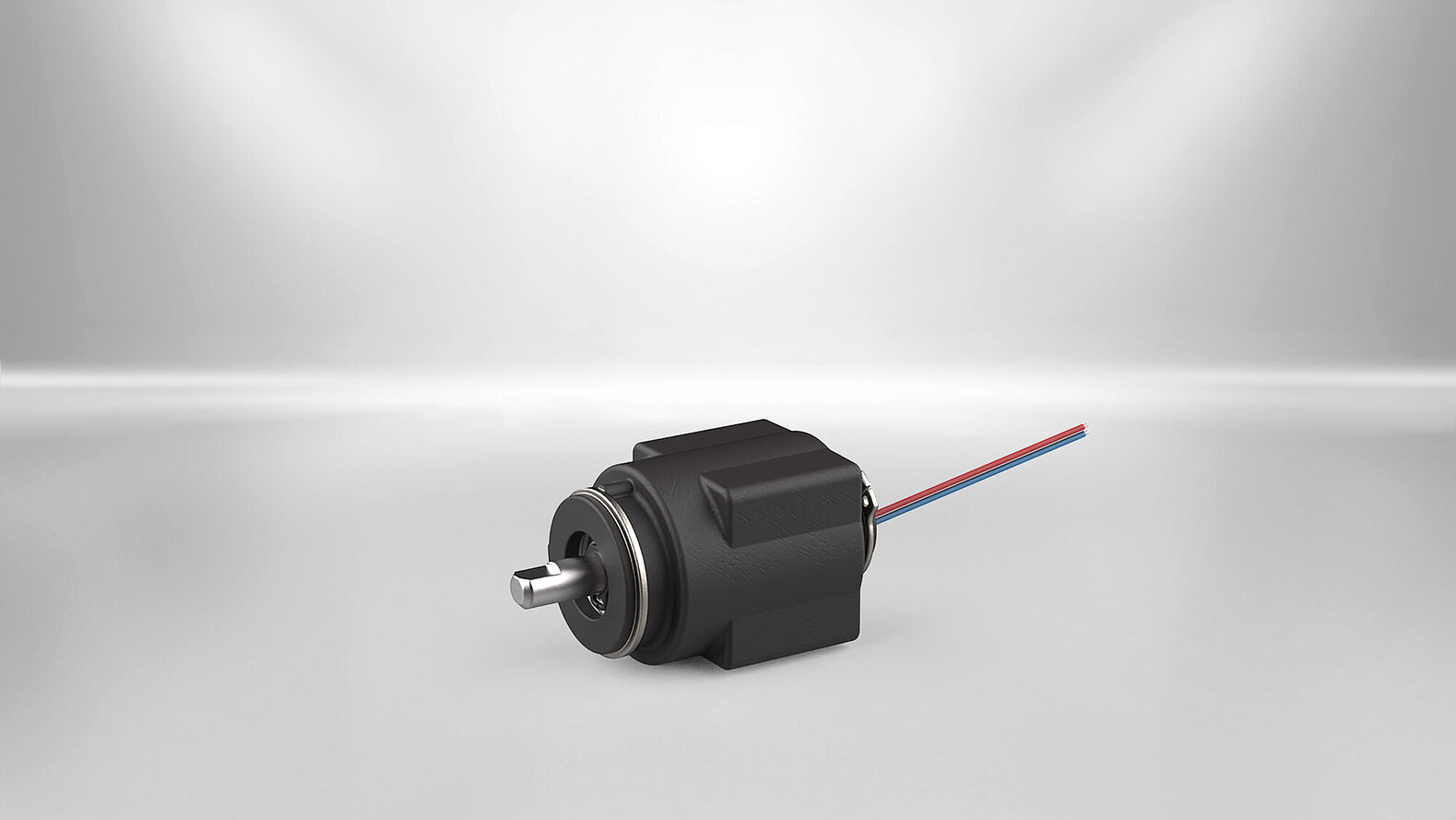

The compact rotary solenoid is available in different versions with a rotation angle between 1 - 90 ° and a torque between 0.5 - 3.5 Ncm.

With its specific properties, the bistable rotary solenoids are suitable for use in logistics systems where fast and reliable switching and a strong bistable behaviour are required.

The BDM043 bistable rotary solenoid is the perfect solution for automated storage systems. Its 90° turning angle, combined with an aluminum finger (or any other material), makes it easy to store, retrieve, and transport goods safely.

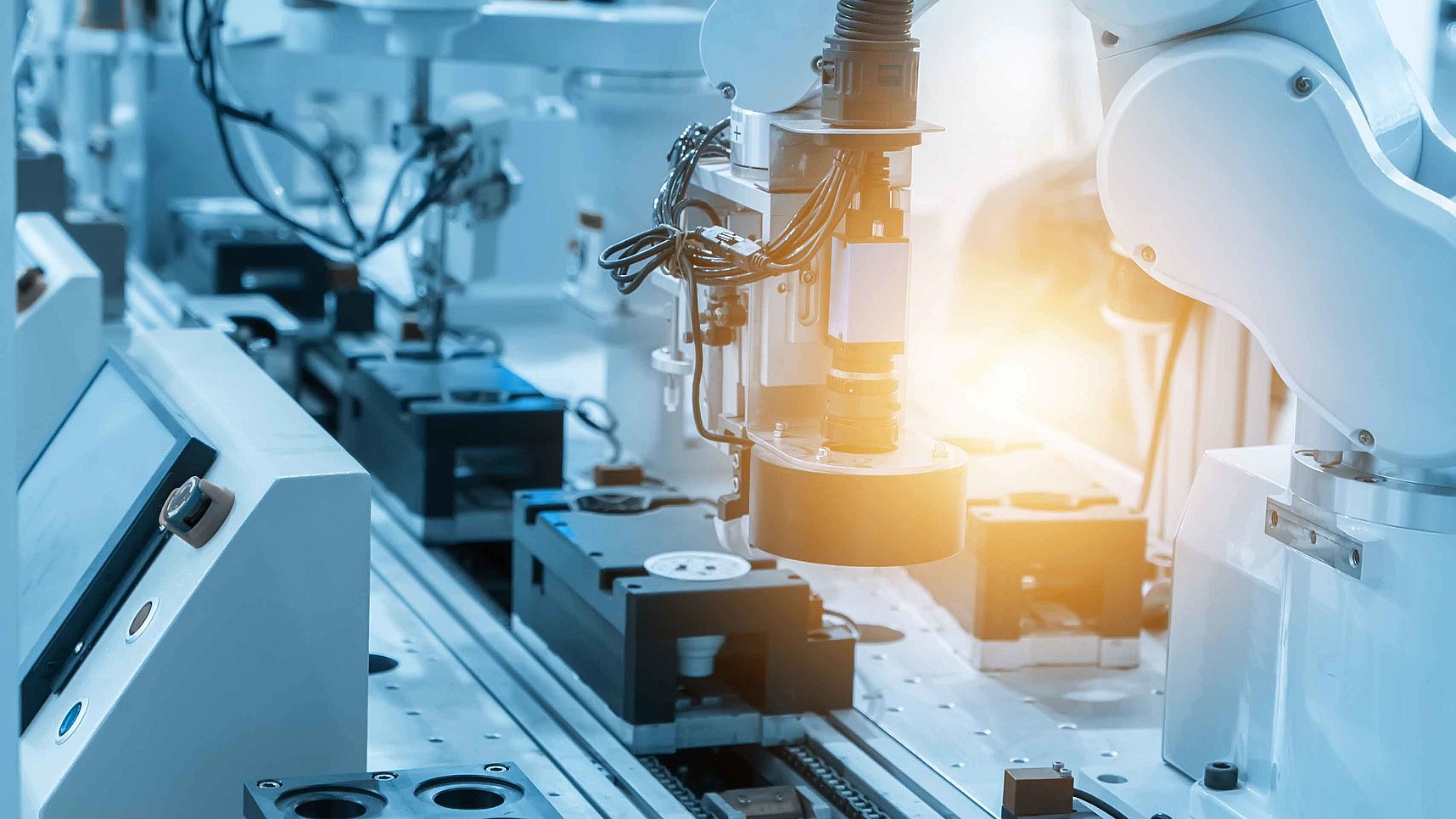

Linear solenoids and rotary solenoids by Kendrion are the ideal drives for stoppers, separating stops and positioning units. They are particularly impressive due to their long service life, high stroke force, and high lateral force bearing capacity.


Kendrion offers modular solutions for the conveyor technology, from single excitation systems via complete linear conveyor systems with integrated springs and defined cycle stroke to electronic control units.
