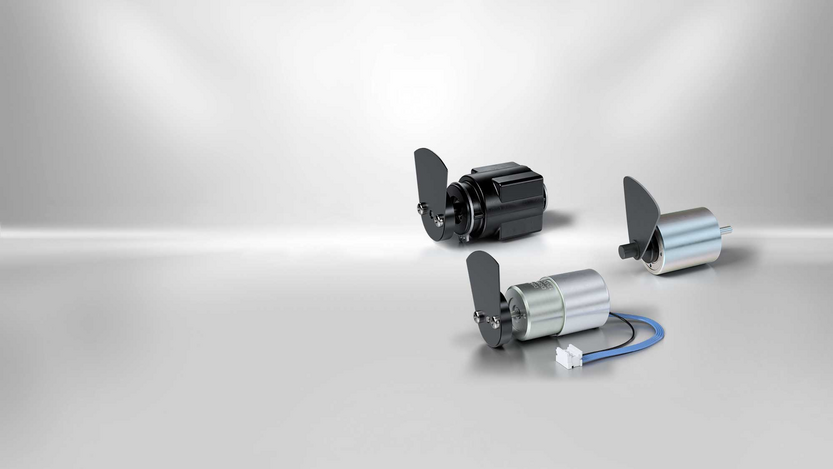

In the field of optical shutters, Kendrion offers ready-to-install solutions as well as customer-specific adaptations exactly for your requirements. If required, the rotary magnets with shutters in different shapes and materials can be equipped with an integrated sensor for position detection. This makes them suitable for many applications, including aircraft instruments and medical and analytical equipment.

The optical shutters offer extremely reliable operation over at least 10 million switching cycles. The shutters function even under extreme temperature conditions. They resist shocks and vibrations. The shutters for blocking the light beam are lightweight, require only a low drive power, and are extremely compact with only a few moving parts.

Reliable optical shutters for light and laser blocking

In the field of optical safety technology, Kendrion offers various highly reliable shutters for light and laser blocking.

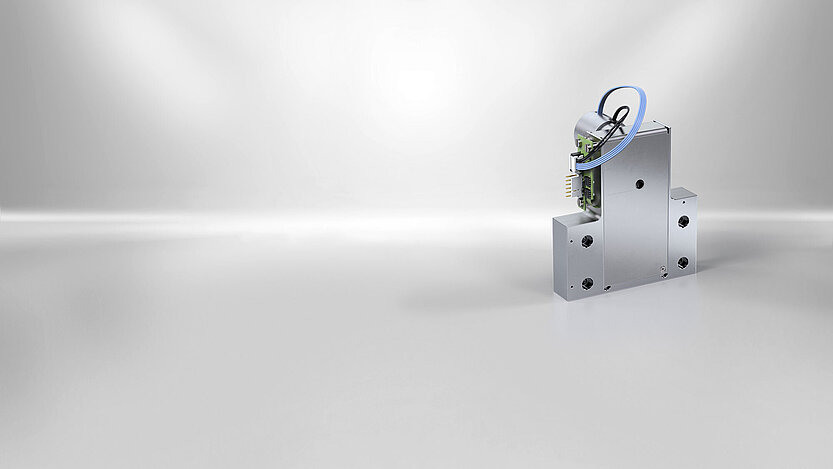

The precise beam shutters are manufactured on the basis of the proven rotary solenoids and are offered as standard and customized solutions. They are used in medical, analytical and chirurgical instruments, mass photometry, aerospace instruments, engraving and marking systems and fiber optic signal transmission systems. The optical blades feature long lifetimes of up to 10 million switching cycles and impress with fast closing times. Due to their compact design and low weight, the laser shutters require only low drive power. Customized solutions with orifice plates in various shapes, materials, dimensions and coatings can be realized on request.

Optical ShutterApplication report

Rotary solenoid for precise X-ray control

Our standard shutter D2 protects patients and medical staff from the harmful effects of ionizing radiation in radiology.

In combination with a lead paddle, the X-rays are reliably blocked and, if required, released with a reaction time of approx. 30 ms. The optical shutter also impresses with its compact design, long service life and fail-safe function (in the event of a power failure).


Download Application Report

Optical ShutterApplication report

High-tech medical laser systems

Lasers are used in medical technology, particularly in the fields of aesthetics, surgery, gynecology and dentistry. The laser technology has to guarantee a large number of switching operations with maximum reliability.

Our D2 laser shutters switch the laser beam in less than 10 ms and are reliably available for hundreds of millions of switching cycles.



Download Application Report

Optical shutterApplication
Protection shutter for lasers in AGVs
Kendrion offers electromagnetic components to enhance the efficiency of Automated Guided Vehicles (AGVs) in various applications. The Shutter D23 laser provides a quick switching time of approximately 30 ms to block laser beams for protection.

Using rotary solenoids D2 as a base, Kendrion provides reliable optical shutters with at least 10 million switching cycles for continuous operation, including an integrated damping mechanism to optimize the bouncing effect.
Read more about Laser-Shutters in AGVs

Benefits at a glance

  • Long lifetime

  • Short response time

  • High reliability

  • Low outgassing

  • High flexibility for miscellaneous customization

  • Simple on/off switching

Downloads

Brochures and Flyers
Application Report | Rotary solenoid as optical shutter for precise X-ray control
pdf - 416 KB
Brochures and Flyers
Application Report | Laser Shutter D2 for protecting AGV Laser
pdf - 425 KB
Brochures and Flyers
Application Report | Most reliable rotary solenoid for highest performance laser systems
pdf - 279 KB
Datasheets
Datasheet | Advanced optical shutter
pdf - 937 KB
Datasheets
Datasheet | Bistable optical shutter CDR030
pdf - 742 KB
Datasheets
Datasheet | High performance optical shutter
pdf - 230 KB
Datasheets
Datasheet | Miniature Optical shutter
pdf - 735 KB
