Rotary door lock for swing doors in machine, plant and equipment construction

Ready-to-install, compact and safe

Industrial applications require professional locking systems that offer high security for the user and functionality. Kendrion is a specialist in the field of locking technology with a broad portfolio of electromechanical locks.

Our new, ready-to-install rotary door lock is specifically designed for compression locking. This means that applications in which moisture, temperatures, or gases are handled can be securely sealed and locked.

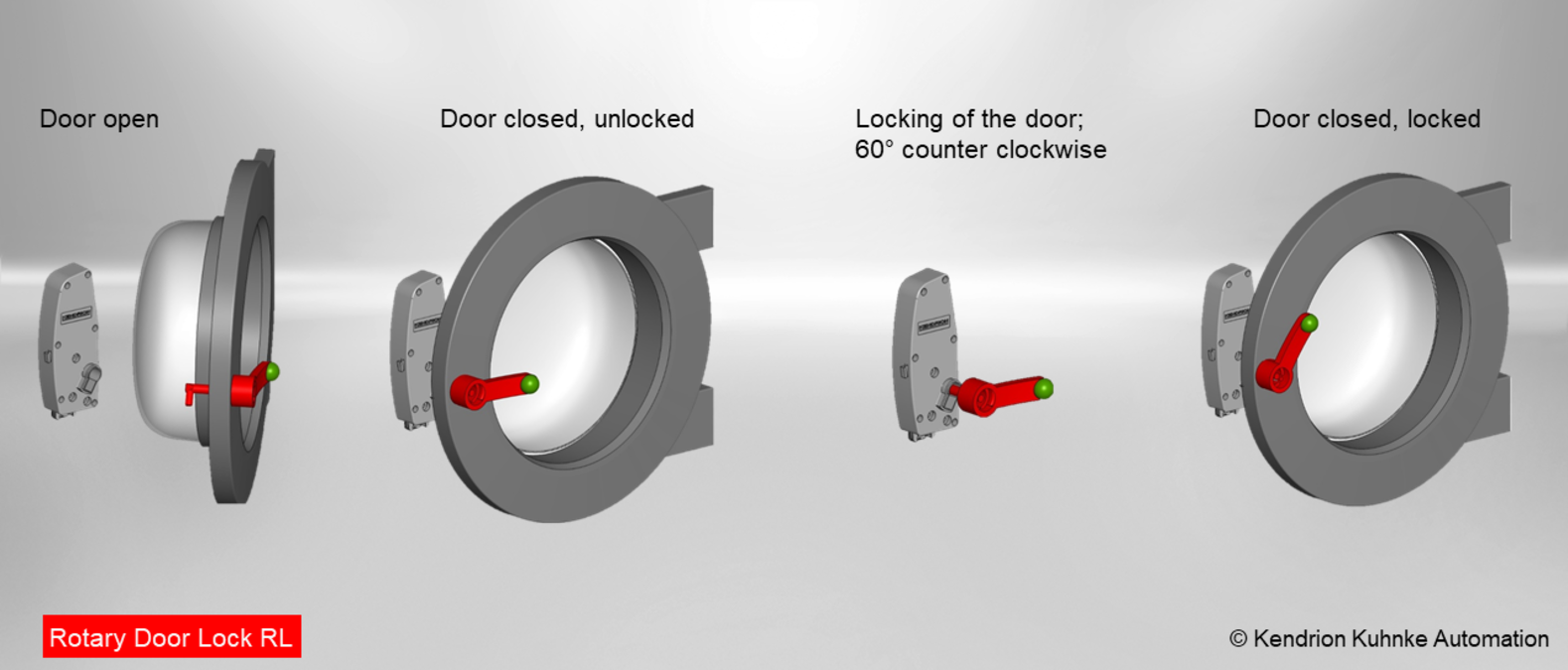

The electromechanical rotary door lock is based on a bistable reversing solenoid, ensuring secure locking even at high ambient temperatures. The flat and robust lock is installed vertically on the left-hand side of the door. The rotary lock has two microswitches used to check the positions "door closed" and "door locked". An emergency opening mechanism has also been implemented.

Frequent areas of application are


  • Professional washing machines
  • Industrial ovens and combi steamers
  • Climatic chambers and environmental simulation systems
  • Process and laboratory sterilisers and incubators





Benefits at a glance

  • Flat and robust design with emergency opener
  • Ready-to-install lock
  • Bistable solenoid suitable for high ambient temperatures
  • 2 sensors for closing and end position
Technical data
Operating voltage 24 V DC & 12 V DC (another voltage on request)
Duty cycle 15%
Nominal power 24 W (short impulse min. 100 ms and max. 2 s)

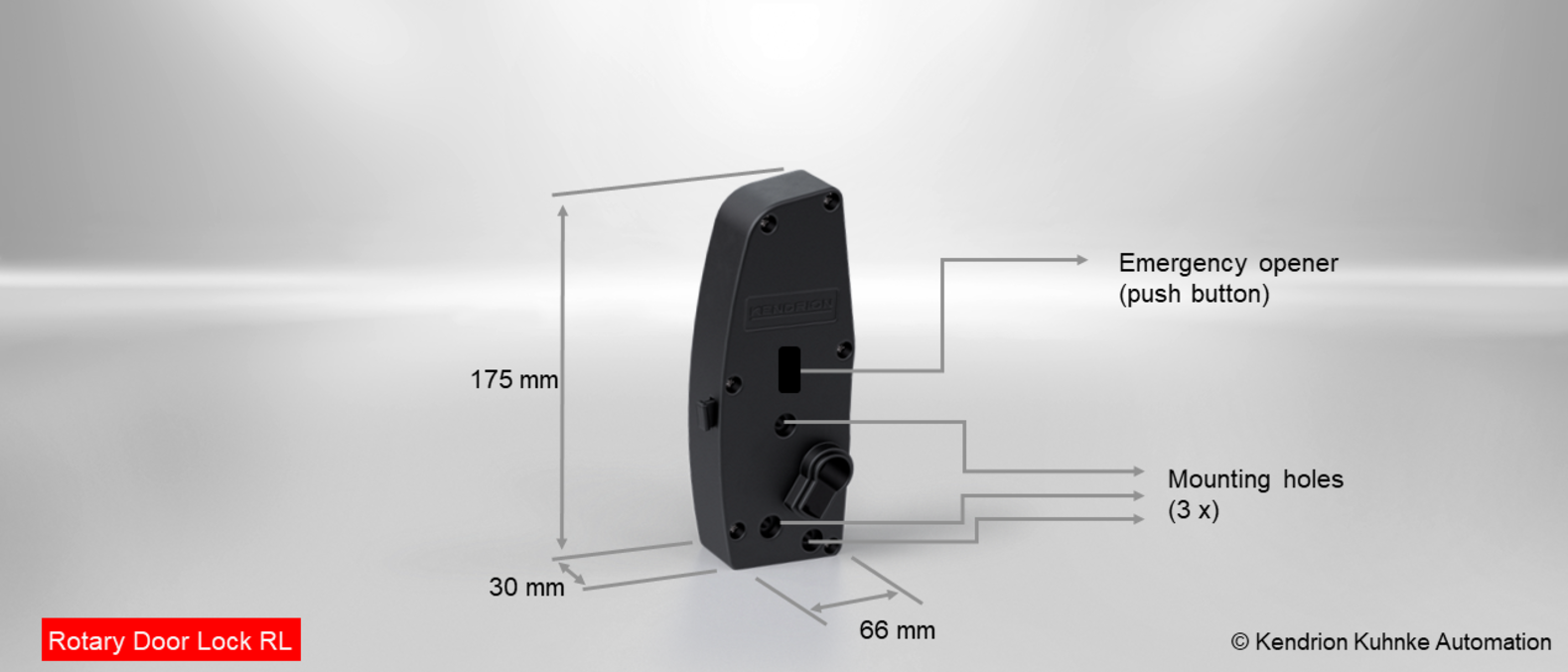

Dimension (Width x Length x Depth) Width 70 mm, length 174 mm and depth 30 mm
Seal compression distance 4 mm

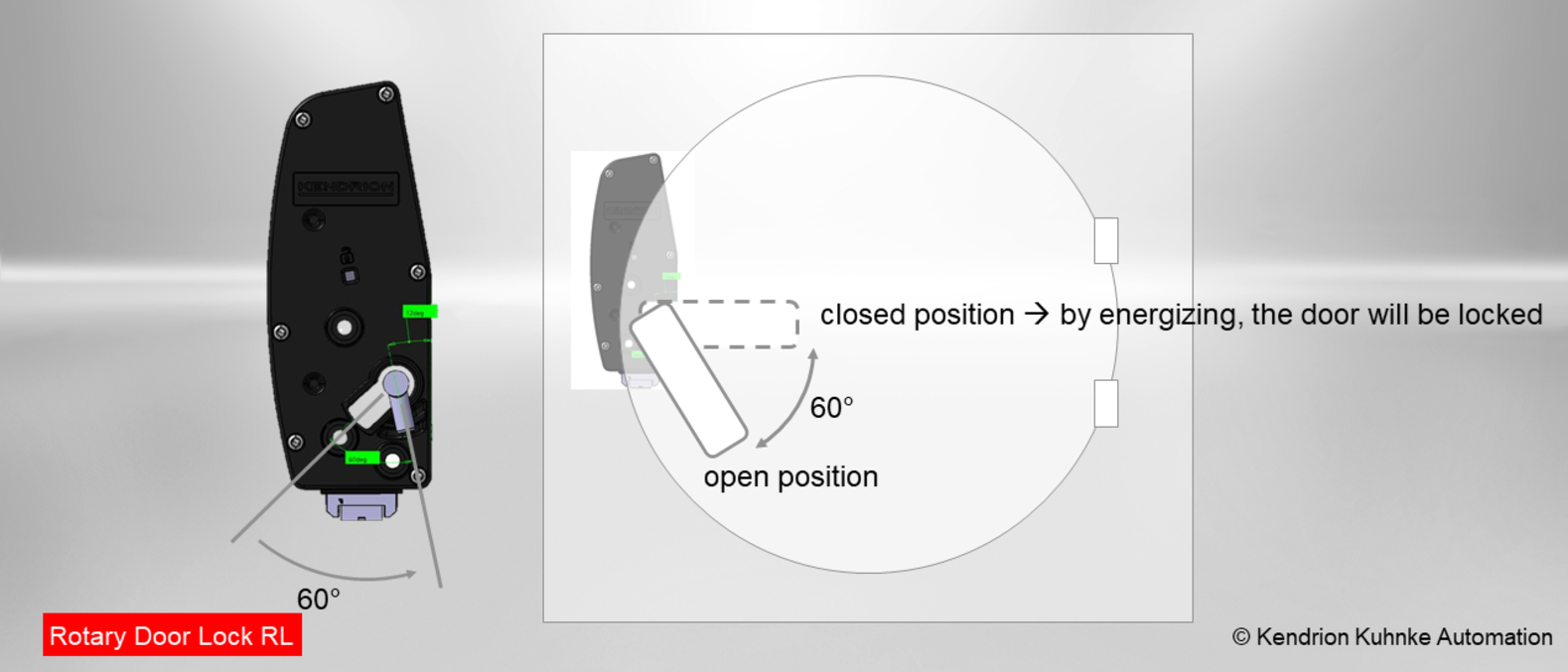

Rotation angle 60°
Mounting Door lock installed on the left side. Door hinge on the right side
Seal compression Up to 400 N
Sensors 2 to 3 microswitches for detecting “door-closed” and “door locked”
Ambient temperature 5 – 80° C
Lifetime 30.000 cycles
Vibration resistance Up to 14 g in all axis
Certificate RoHS and UL-listed materials
