Cost-effective touch operation for your machine

Control panels, CODESYS HMI, Panel PLC & web terminals for fully graphical visualization

Expand your machine cost-effectively with our high-quality fully graphical operating and visualization devices. Our control panels, web terminals and panel PLCs offer a modern operating concept and an attractive design. Optionally, they are available with multi-touch function. Furthermore, it is possible to integrate PLC functionality into the system. We would be happy to put together a device tailored to your individual needs.

Our embedded visualization systems include all common display sizes and resolutions. Due to their performance, they are a more cost-effective alternative to IPCs and allow a reliable and individual connection of your control process with an appealing operating unit.

Benefits at a glance

Maximum machine availability
  • Fast commissioning
  • Fast start of production
  • Maintenance-free due to passive cooling
  • Easy mounting and dismounting
  • Modern display technology, long service life
User-friendly operation
  • Brilliant widescreen display, continuously dimmable
  • IPS screen technology
  • 16 million colors
  • Up to 170° viewing angle
  • Touch or multi-touch with gesture control
Flexible use
  • Screen diagonals 4.3", 5.7", 7.0", 10.1", 12.1", 15.6"
  • Display of modern visualization functions from CODESYS
  • Data transfer from CODESYS V2 or intelligent drives
  • Use of new technologies such as HTML5 or OPC UA
  • Seamless display surface in IP65/66
  • Low weight due to plastic housing
  • Robust due to metal housing and safety glass
  • Low installation depth
Open communication
  • LAN (HTTP5, OPC UA, TCP/IP, Modbus TCP, EtherCAT, Profinet...)
  • USB, RS232, RS485 (Modbus RTU)
  • CANopen
  • CODESYS symbol data exchange
  • Networking of several visualization devices
  • Communication with additional input devices such as scanners and RFID readers
  • Data transfer from CODESYS V2 or intelligent drives
Excellent visualization
  • CODESYS HMI
  • CODESYS Runtime with TargetVisu
  • Web Terminal
  • IIoT Controller with OPC UA
  • Multitouch with gesture control
  • Program code execution
Tailored solutions from Kendrion
  • Complete control systems with integrated operating, drive and safety solutions with coordinated components
  • Customized design
  • Individual adaptation to your needs

Downloads

Datasheets
Datasheet | CODESYS HMI Visualisation (Kuhnke Vico HMI)
pdf - 664 KB
Brochures and Flyers
Application report | Touch Displays for AGV in various sizes
pdf - 359 KB
Brochures and Flyers
Application report | Touch & visualization in thermoforming processes
pdf - 245 KB
KendrionSteuerungstechnik
CODESYS HMI Panel
In this video, Volker Marks explains how you can equip your machine with simple CODESYS visualization options.
Read more

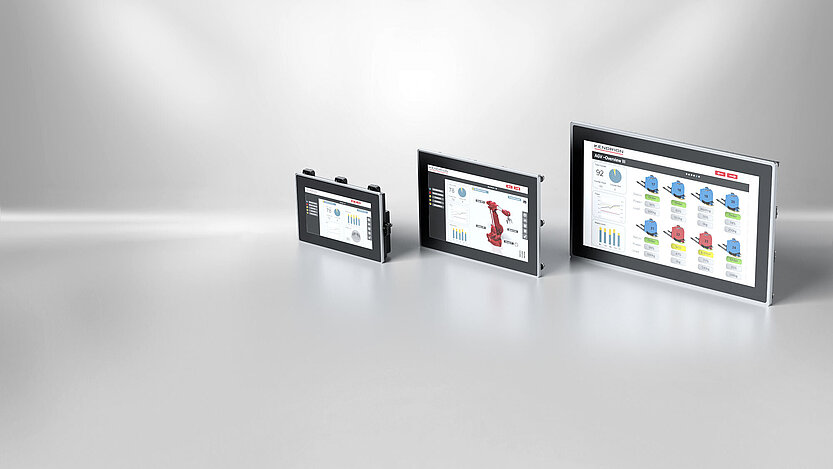

Our embedded visualisation systems include various display sizes and resolutions.
Maximum flexibility through a modern control concept with optional multi touch functionality in combination with an attractive device design. Additional PLC functionality can be integrated on demand.
KENDRIONProduct Finder

Looking for more details? Our Product Finder is happy to help!

FAQs: HMI touch panels

What is an operator panel?

An operator panel is a device used to provide a human-machine interface (HMI) for industrial automation systems. It enables machines or processes to be monitored and controlled.

Is CODESYS multitouch capable?

Yes, CODESYS HMI supports multitouch functionality. This enables the operation of multitouch control panels with multiple fingers and gestures, similar to modern smartphones or tablets.

What is a touch panel PLC?

A touch panel PLC is an operator panel that also operates as a programmable logic controller (PLC/SPS). It combines the functions of an operator panel for user interaction with the capabilities of an industrial controller for automating processes.

Which benefits do web terminals offer for the operation of automation systems?

Web terminals enable access to automation systems via a web browser. This allows users to access and monitor or control the systems from different locations. Web terminals offer flexibility and facilitate remote control of machines or processes.

Can I connect multiple CODESYS HMI control panels or web terminals to one automation system?

Yes, it is usually possible to connect several CODESYS HMI control panels or web terminals to one automation system. This allows multiple users to access and operate the system simultaneously.

Does CODESYS HMI support the connection of external devices or interfaces?

Yes, CODESYS HMI offers various interfaces and protocols for communication with external devices or systems. This enables the integration of input devices, sensors, actuators or other devices into the automation system.

Can I collect and analyze data with CODESYS HMI?

Yes, CODESYS HMI allows you to collect process data and provides functions for analyzing and visualizing this data. You can create diagrams, trends or reports to obtain important information about the operation of the automation system.
