Fluid isolation valves
Fluid isolation valves for various media

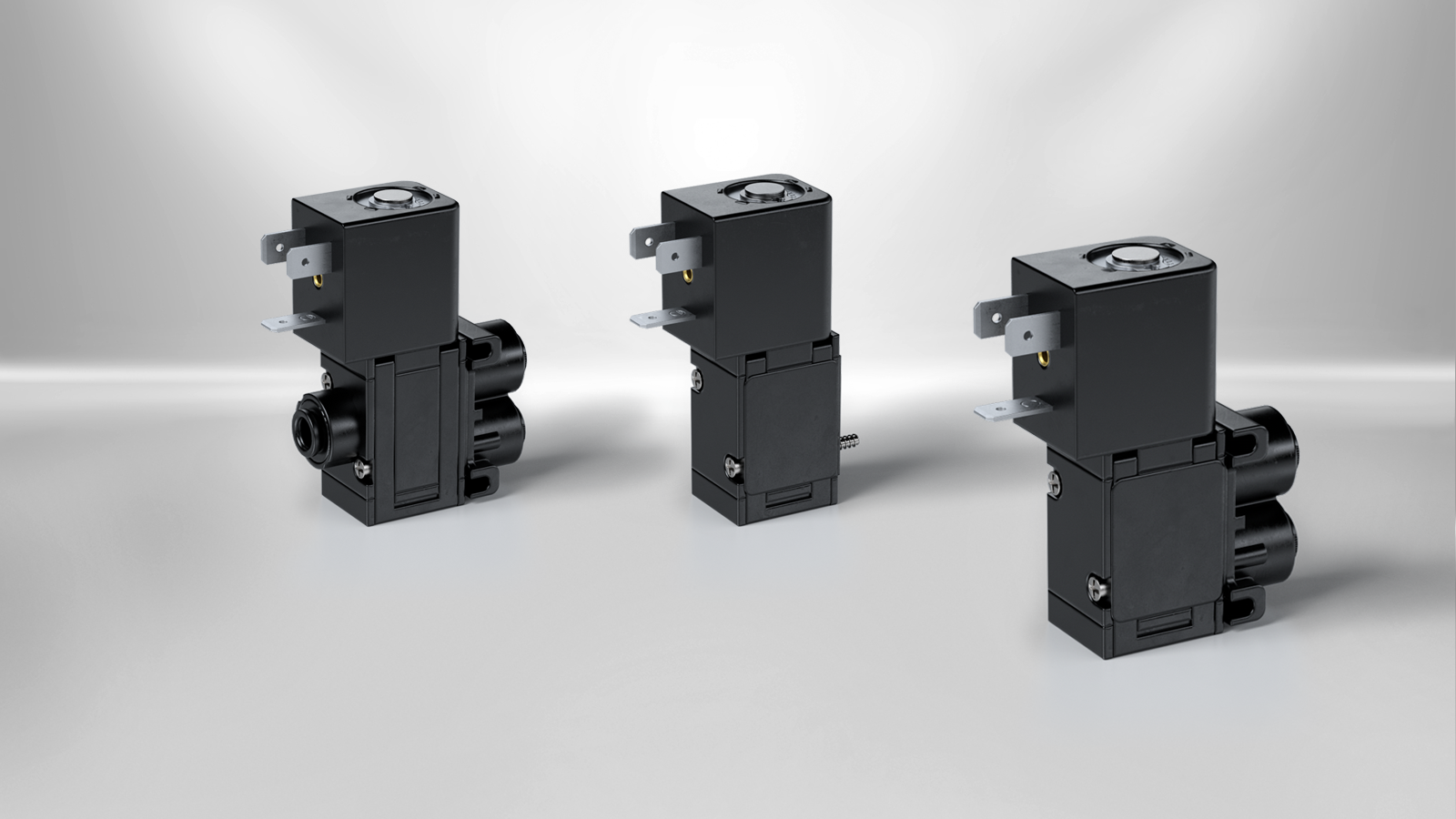

Fluid isolation solenoid valves from Kendrion enable the handling of aggressive and sensitive media by means of a hermetic separating diaphragm between the base in contact with the media and the armature system. It can be used flexibly and is designed for media such as acids, alkalis or special inks in the printing industry. The fluid isolation valve features high flow rates with low power consumption. The nominal orifice is 3.5 mm, so that high flow rates can be achieved even at high pressure up to 8 bar. The fluid isolation valve is available as 3/2 and 2/2-way valve in NO or NC version. Customized adaptations are possible on request.
Kendrion's fluid isolation solenoid valves were formerly known under the name Kuhnke.
Products
(11)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Function
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Nominal orifice (mm)
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Kv-value (l/min)
ascending
descending
|
Size (mm)
ascending
descending
|
Actuation type
ascending
descending
|
Duty cycle (% ED)
ascending
descending
|
Type of electric connection
ascending
descending
|
Medium
ascending
descending
|
Nominal power (W)
ascending
descending
|
Nominal voltage (V DC)
ascending
descending
|
Nominal current (mA)
ascending
descending
|
Returning mechanism
ascending
descending
|
Protection class
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Valve type
ascending
descending
|
Materials
ascending
descending
|
Actuation
ascending
descending
|
Identification number
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

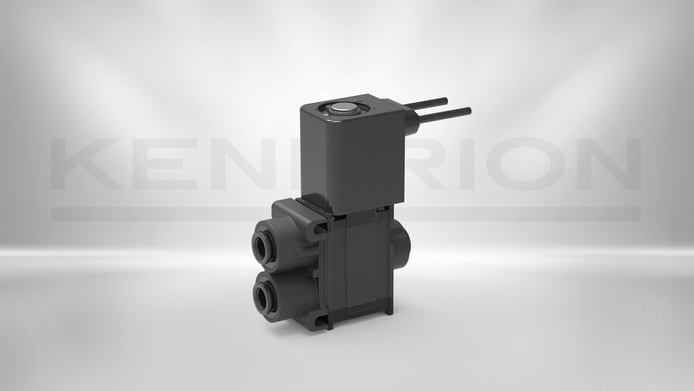

Fluid Isolation Valve Type 97
|
97.210.24.20 | 3/2 way NO | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | 3.5 | 22 | electrically actuated | 100 | Lead wire | Water and filtered (5 µm), lubricated and non lubricated air | 6.0 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | 189728 | to the product |
|

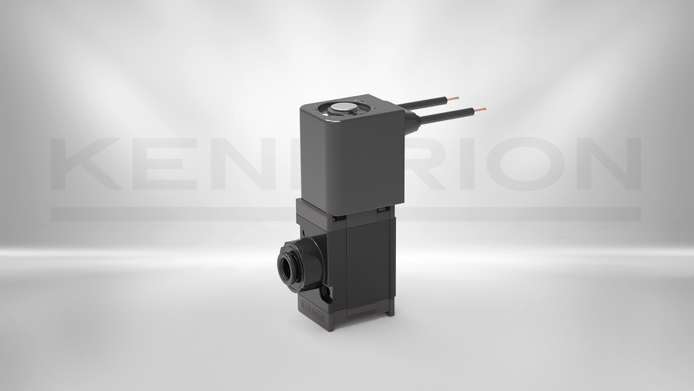

Fluid Isolation Valve Type 97
|
97.200.20.21 | 3/2 way NC | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | Flange | 3.5 | 22 | electrically actuated | 100 | Lead wire | Water and filtered (5 µm), lubricated and non lubricated air | 6.0 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | 194212 | to the product |
|

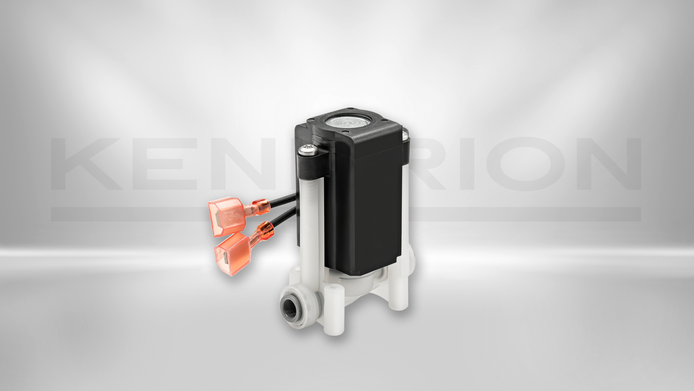

Fluid Isolation Valve
|
31100001 | 2/2 way NC | 0 - 8.0 | 5.0 | 1/4" Push-in | - | 32 | electrically actuated | 25 | Lead wire with spade terminals | Water, syrup concentrates and filtered (5 µm), lubricated and non lubricated air | 18.0 | 24 | 750 | Spring | IP00 | 0 … + 55 | Poppet valve | Housing: PA, Sealing: EPDM | directly controlled | 31100001 | to the product |
|

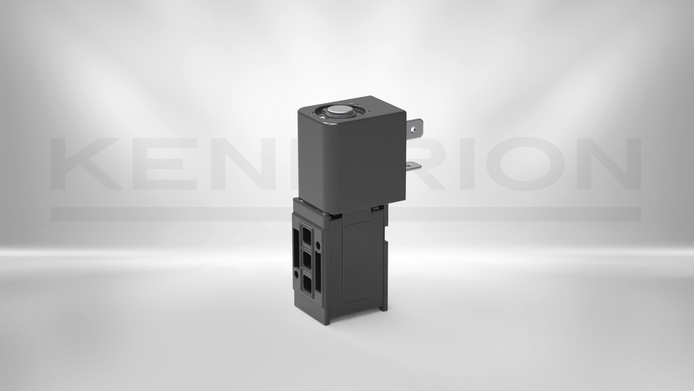

Fluid Isolation Valve Type 97
|
97.100.00.00 | 3/2 way NC | -0.9 - 3.5 | 3.5 | Flange | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|
Fluid Isolation Valve Type 97
|
97.100.24.00 | 3/2 way NC | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|

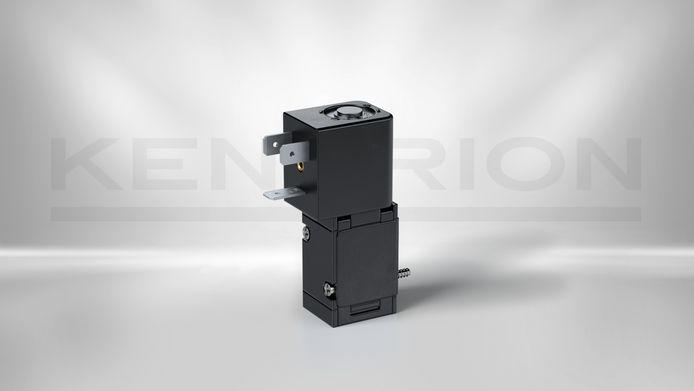

Fluid Isolation Valve Type 97
|
97.110.00.00 | 3/2 way NO | -0.9 - 3.5 | 3.5 | Flange | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|
Fluid Isolation Valve Type 97
|
97.110.24.00 | 3/2 way NO | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|
Fluid Isolation Valve Type 97
|
97.120.00.00 | 2/2 way NC | -0.9 - 3.5 | 3.5 | Flange | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|

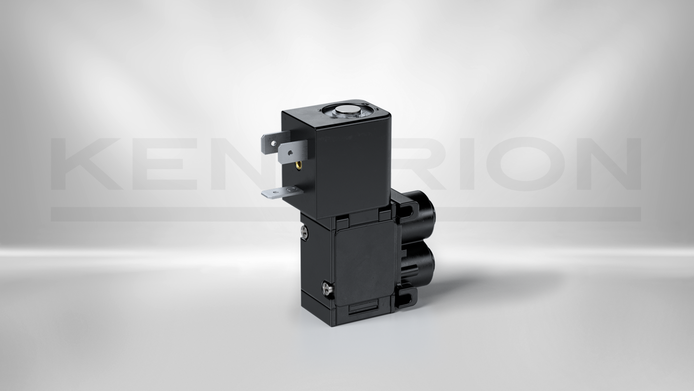

Fluid Isolation Valve Type 97
|
97.120.04.00 | 2/2 way NC | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|
Fluid Isolation Valve Type 97
|
97.130.00.00 | 2/2 way NO | -0.9 - 3.5 | 3.5 | Flange | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
|

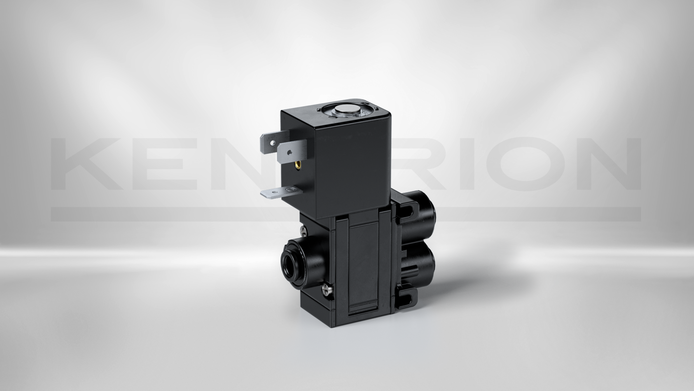

Fluid Isolation Valve Type 97
|
97.130.04.00 | 2/2 way NO | -0.9 - 3.5 | 3.5 | Push-in for 6 mm tube | 3.5 | 22 | electrically actuated | 100 | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads | Water and filtered (5 µm), lubricated and non lubricated air | 4.6 | 24 | 250 | Spring | IP65 (with plug-in socket and occupied pneumatic connections or leads) | 0 … + 55 | Poppet valve | Housing: PPSU, sealing: either EPDM, NBR or FKM | directly controlled | - | to the product |
