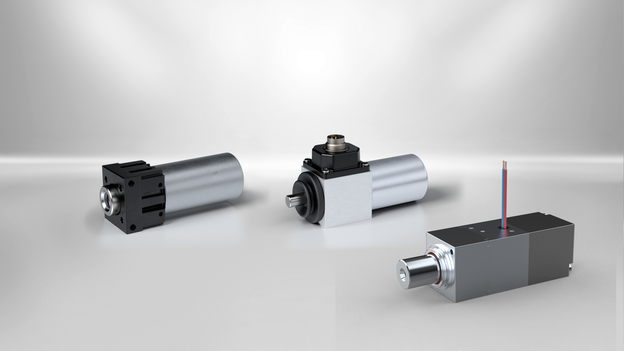

Locking solenoids
Locking solenoids from Kendrion were developed specifically for use in protective devices. They are characterized by a compact design, long service life and a high lateral force load capacity.
The locking solenoids are available in different designs for the following applications:
- Devices unlocked without voltage, in which a spring resets the locking bolt.
- Devices locked without voltage, in which an electromagnetic force resets the locking bolt.
Do you need help choosing the right product? Use our product guide now.
Products
(14)
|
Title
|
Type
|
Nominal voltage (V)
|
Locking mode
|
Radial work load bearing (N)
|
Duty cycle (%)
|
Power consumption (W)
|
Stroke (mm)
|
Inital force (N)
|
Return mechanism
|
Emergency opener
|
Thermal class
|
Position monitoring via microswitch
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Locking Solenoid LHP035 (CL) | LHP0350291 | 24 | currentless locked | 3000 | 100 | 14.1 | 15 | 7.8 | Spring | no | F 155 | - | |
|

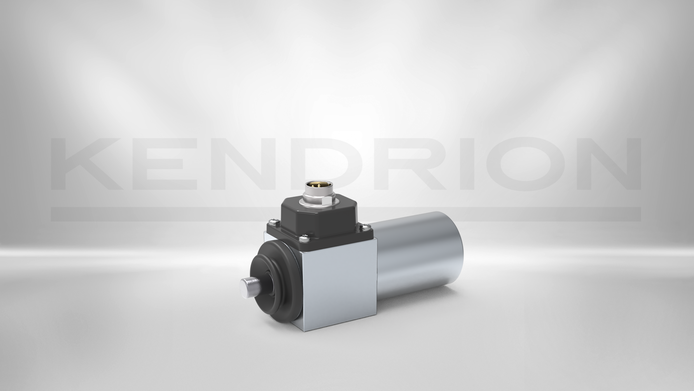

Locking Solenoid LLV040 (CU) | 1333420 | 24 | currentless unlocked | 1200 | 100 | 12.8 | 8 | 5 | Spring | no | F 155 | locked, unlocked | |
|

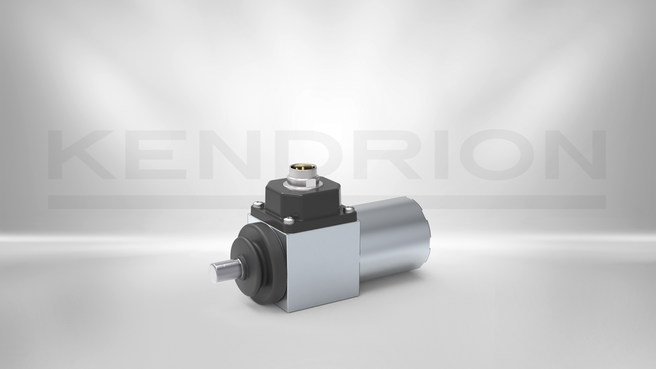

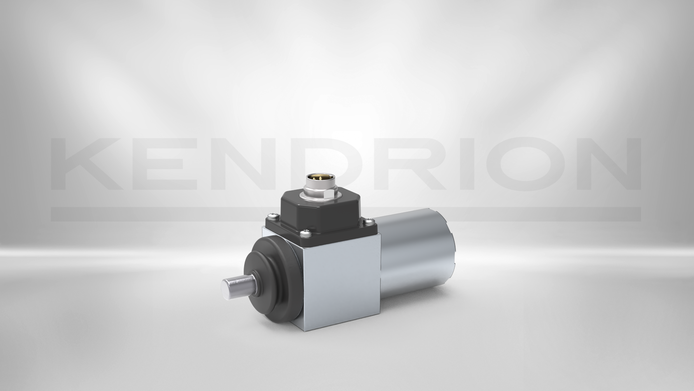

Locking Solenoid LLV040 (CL) | 1333424 | 24 | currentless locked | 1200 | 100 | 12.8 | 8 | 5 | Spring | no | F 155 | locked, unlocked | |
|

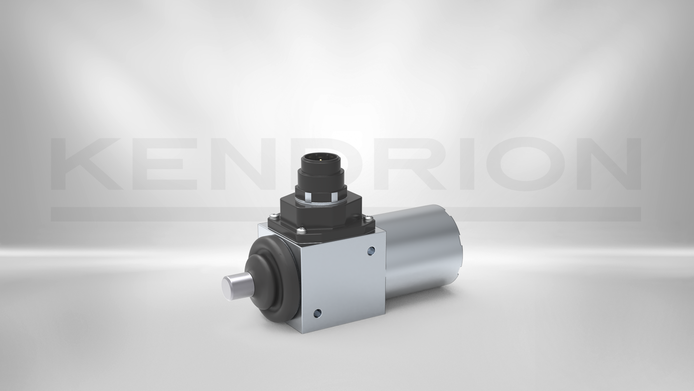

Locking Solenoid LLV050 (CL) | 1333547 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | locked, unlocked | |
|

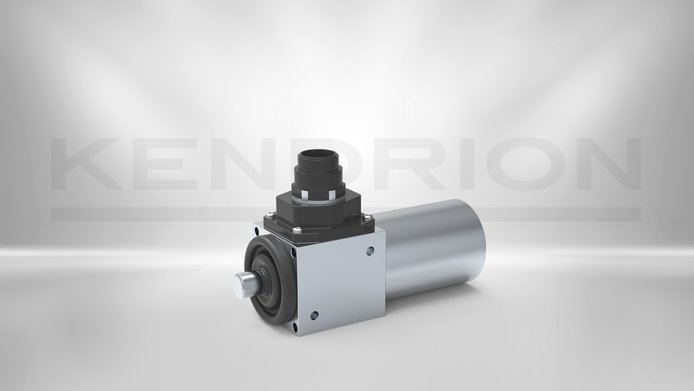

Locking Solenoid LLV050 (CU) | 1333550 | 24 | currentless unlocked | 3000 | 100 | 18.5 | 10 | 7 | Spring | no | F 155 | locked, unlocked | |
|

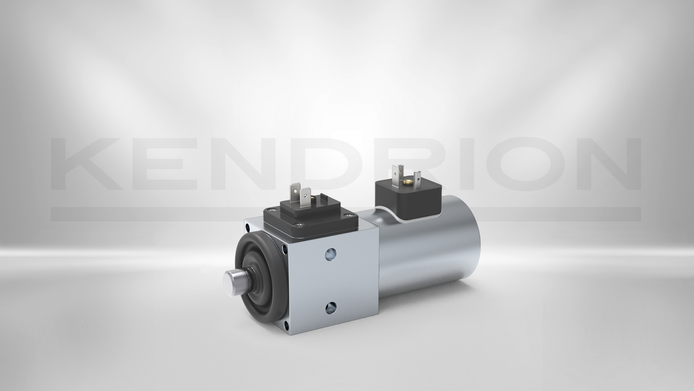

Locking Solenoid LLV050 (CU) | 1333560 | 24 | currentless unlocked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | unlocked | |
|

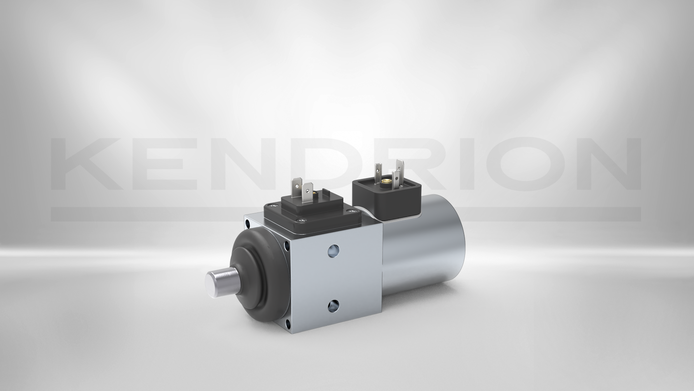

Locking Solenoid LLV050 (CL) | 1333585 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | locked | |
|

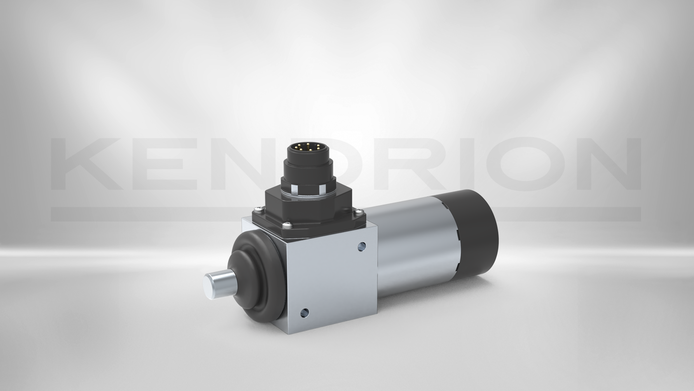

Locking Solenoid LLV050 (CL) | 1333580 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | yes | F 155 | locked, unlocked | |
|

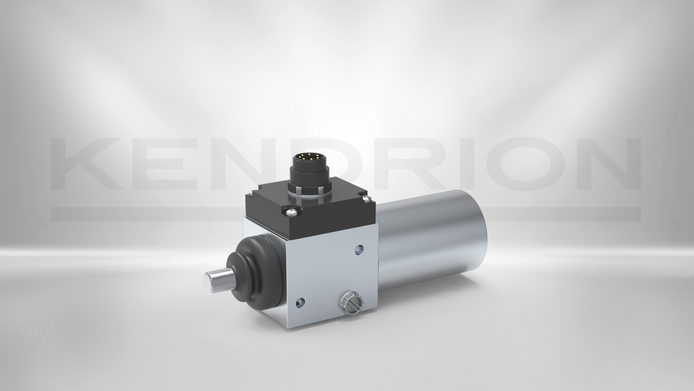

Locking Solenoid LLV060 (CU) | 1333655 | 24 | currentless unlocked | 4000 | 100 | 30 | 15 | 12 | Spring | yes | F 155 | locked, unlocked | |
|
Locking Solenoid 57x80 (CL) | 17040001 | 24 | currentless locked | 1500 | 100 | 16 | 12 | 17.5 | Spring | no | B 130 | unlocked | |
|
Locking Solenoid 57x80 (CU) | 17040002 | 24 | currentless unlocked | 1500 | 100 | 16 | 12 | 17.5 | Spring | no | B 130 | unlocked | |
|

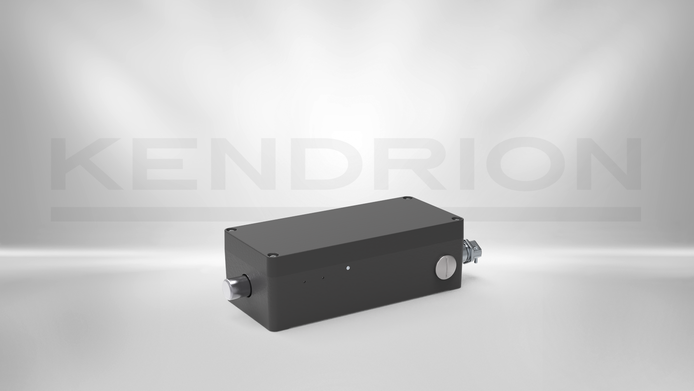

Locking Solenoid 57x80 (CL) AC | 17040003 | 230V AC | currentless locked | 1500 | 100 | 21.5 | 12 | 17.5 | Spring | no | B 130 | unlocked | |
|

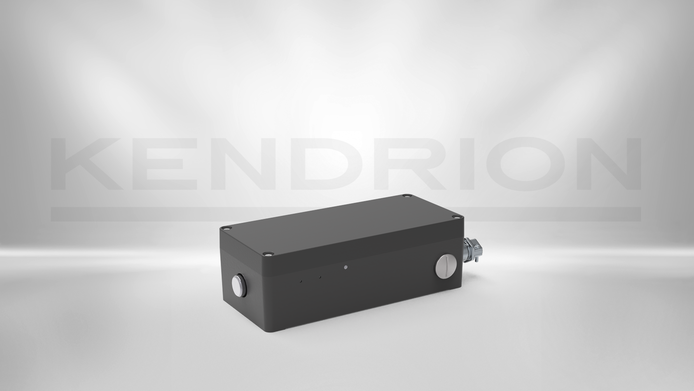

Locking Solenoid 57x80 (CU) AC | 17040004 | 230V AC | currentless unlocked | 1500 | 100 | 21.5 | 12 | 17.5 | Spring | no | B 130 | unlocked | |
|
|

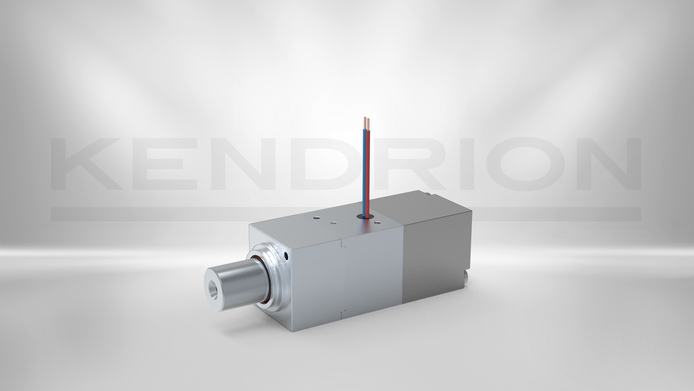

Locking Solenoid LHP035 | LHP0350284 | 24 | currentless unlocked | 3000 | 100 | 14.1 | 15 | 7.8 | Spring | no | F 155 | - |
