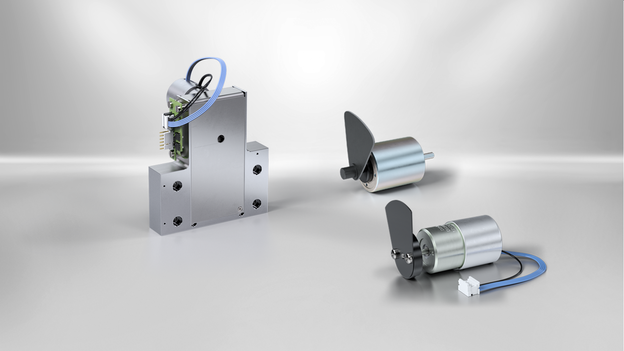

Optical shutter
Reliable optical shutters for light and laser blocking
Kendrion offers various optical shutters for light and laser blocking based on rotary solenoids. The laser shutters convince with a short closing time and a long lifetime of more than 10 million switching cycles. Due to their compact design and low weight, they require only low drive power. The shutters can be equipped with a sensor for position detection and are manufactured in different shapes and materials. The rotary solenoids with shutter are used in various applications in aviation, medical technology and analytics.
Customized adaptations are possible on request.
Products
(4)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Rotation angle
ascending
descending
|
Return mechanism
ascending
descending
|
End position detection
ascending
descending
|
Housing type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Dimensions
ascending
descending
|
Switching time (ms)
ascending
descending
|
Switching frequency (Hz)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

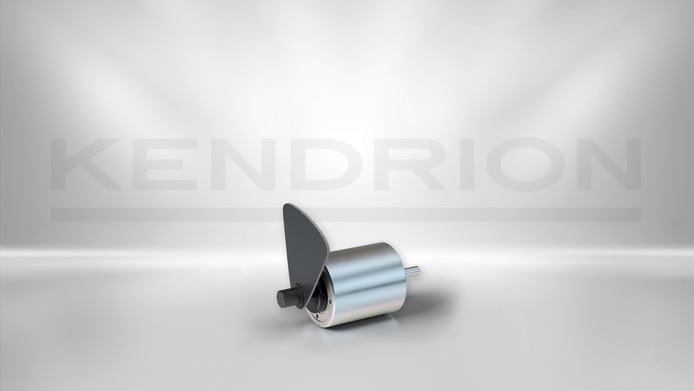

Miniature optical shutter D1
|
D16 Shutter | 65° | Spring return | No | round | 12V DC | 100% ED | 2, 4 | B (130 °C) | Wire 20 cm | Durchmesser 15 / Länge 20 mm | ≤ 20 ms | max. 5 Hz | to the product |
|

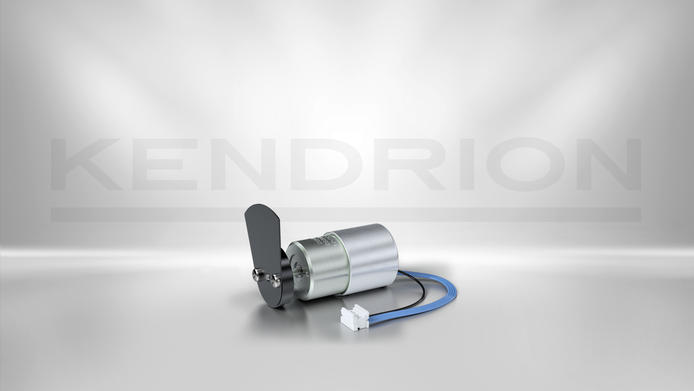

High performance optical shutter D2
|
D23 Shutter | 30° | Spring return | Yes | round | 24V DC / 12V DC optional | 100% ED | 3, 8 | B (130 °C) | Wire 20 cm | Durchmesser 27, 6 / Länge 42mm | ≤ 15 ms | max. 5 Hz | to the product |
|

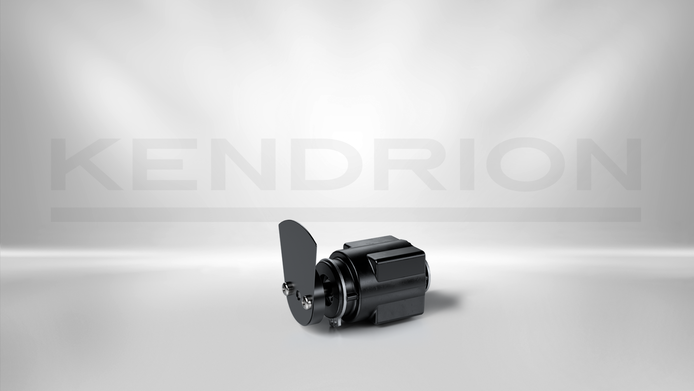

Bistable optical shutter CDR030
|
CDR030 Shutter | 60° / 90° | Two end positions | Yes optional | square | 12V DC / 24V DC | 15% ED | 30 | B (130 °C) | Wire 20 cm | 30 x 30 x 57, 7mm | ≤ 20 ms | max. 30 Hz | to the product |
|

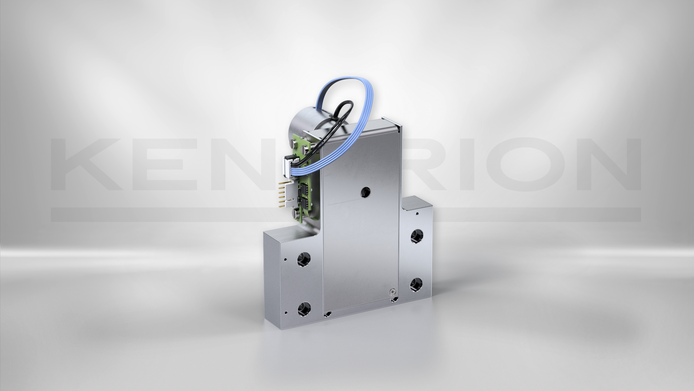

Advanced optical shutter
|
DS200X8 Lasershutter | 30° | Spring return | Yes | round | 12V DC / 24V DC optional | 100% ED | 4 | B (130 °C) | Wire 20 cm | 100 x 60 x 100mm | ≤ 15 ms | max. 5 Hz | to the product |
