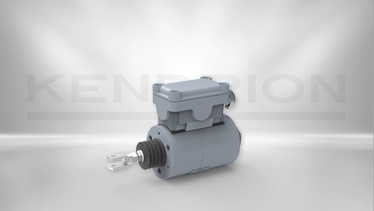

DC stroke solenoid EX06
41060020
Ex-Solenoid EX06 with Ignition Protection Type „Increased Safety”, Ex “e”.
The explosion-proof solenoid convince through high forces, dynamic switching and long service life.
It consists of a pot magnet and an aluminium connector housing. According to EN 60079 the connector housing provides a connection for the protective conductor.
The linear solenoid comply with the European ATEX guideline 2014/34/EU for devices and protection systems intended for proper use in explosive areas and can be used in temperature class T4 (up to +135°C).
It is supplied with 24 V DC as standard, other voltages are available on request.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 21 W |
| Stroke | 15 mm |
| Inital force | 25 N |
| End force | 55 N |
| Return spring | no |
| Dimensions (length, width, height) | 122,62,62 mm |
| Thermal class | B 130 |
| Connection | connection box |
