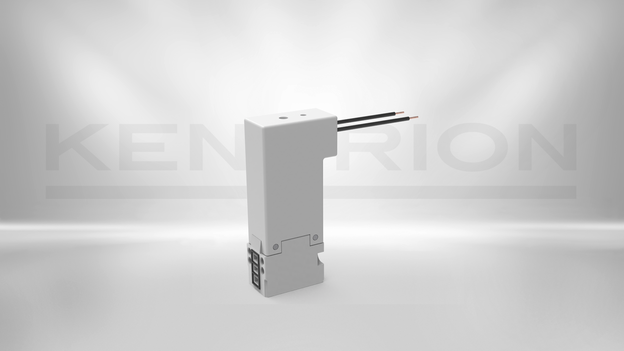

Bistable Solenoid Valve Type 63.0 BI

63.050.20 BI

10 mm width, bistable latching solenoid valve or bistable 3/2-way solenoid valve which require only a short electrical power pulse to change the state. On request other sealing materials like EPDM or FKM are possible.

Technical details

Description Value
Function 3/2-way Bistable
Pressure range 0 - 8 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Kv-value 0.23 l/min
Size 10 mm
Actuation type electrically actuated
Duty cycle 100 % ED
Type of electric connection Wire
Medium Filtered (5 µm), lubricated and non lubricated air
Nominal power 2.9 W
Nominal voltage 24 V DC
Returning mechanism Spring
Protection class IP65
Ambient temperature -10 ... +50 °C
Valve type Poppet valve
Materials Base: PBT, seal: NBR
Actuation directly controlled
