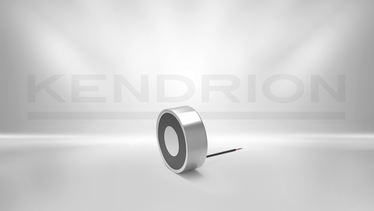

Permanent flat gripper HF
550 4035 04712
Flat gripper with a hard ferrite magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded socket with an internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded bush |
| Material | hard ferrite |
| Force | 180 N |
| Diameter | 47 mm |
| Height | 9 mm |
| Total height | 21 mm |
| Diameter threaded bush | 12 mm |
| Weight | 91 g |
| Thread | M6 |
| Temperature | 200 °C |
| Housing | galvanized |
