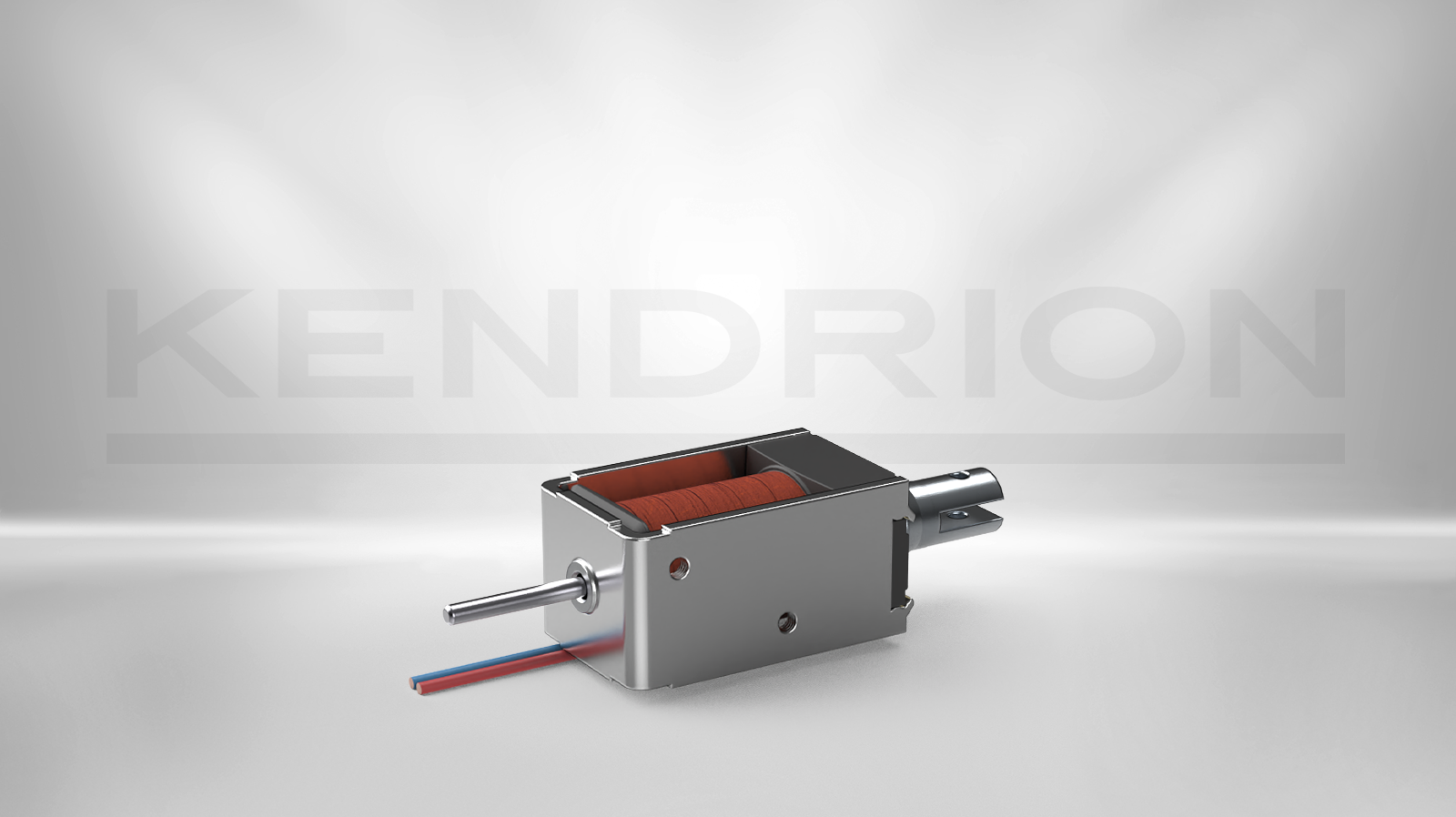

Bistable Linear Solenoid BI 16
BI 16-F-24V DC 10 ED
Bistable linear solenoid with permanent magnetic support in open frame technology. Our preferred types are available in small quantities from stock. Other versions or other voltages are available on request. More information can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 10 % |
| Power consumption | 19 W |
| Stroke | 4 mm |
| Inital force | 5 N |
| Nominal voltage | 24 V |
| End force | 12 N |
| Return spring | Yes |
| Dimensions (length, width, height) | 19 x 16 x 31 mm |
| Length | 19 |
| Width | 16 |
| Height | 31 |
| Design | Yes |
| Protection class | IP 00 |
| Thermal class | F, 155 |
| Connection | 10 cm lead |
| Solenoid weight | 47 g |
| Armature weight | 14 g |
| Product Line | Bistable Linear Solenoids |
