Kuhnke FIO
Shielding terminal 2x14 mm
694 412 06

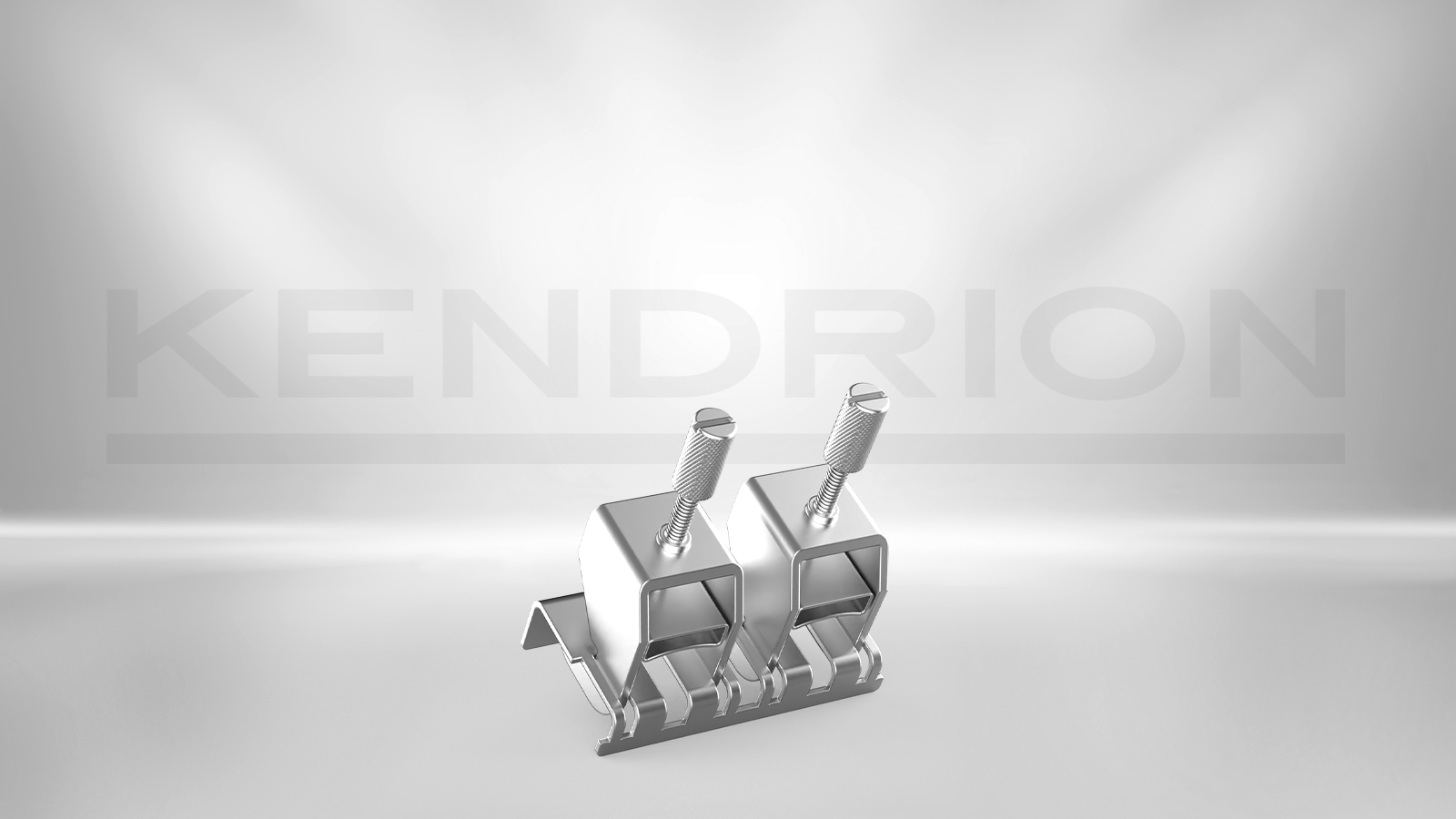

The Kuhnke FIO shielding terminal allows a simple installation of the cable screen. The shielding terminal leads the potential of the cable shield to the DIN rail on which the Kuhnke FIO module is snapped.
The 2x14 mm shield clamp is suitable for all double-width (42 mm) FIO modules.
- EMC improvement
- Discharge of interference directly at the FIO module
- Strain relief for cables and wires with small cross-sections
Technical details
| Description | Value |
|---|---|
| Function | Accessories - Shielding terminal |
| Dimensions (W x H x D) | 2x14 mm |
| Product status | Standard product |
| Mounting | Mounted directly on the module, mounting material included |
| Certifications | CE, UL |
| IP-Protection Class | IP 20 |
