Kuhnke FIO

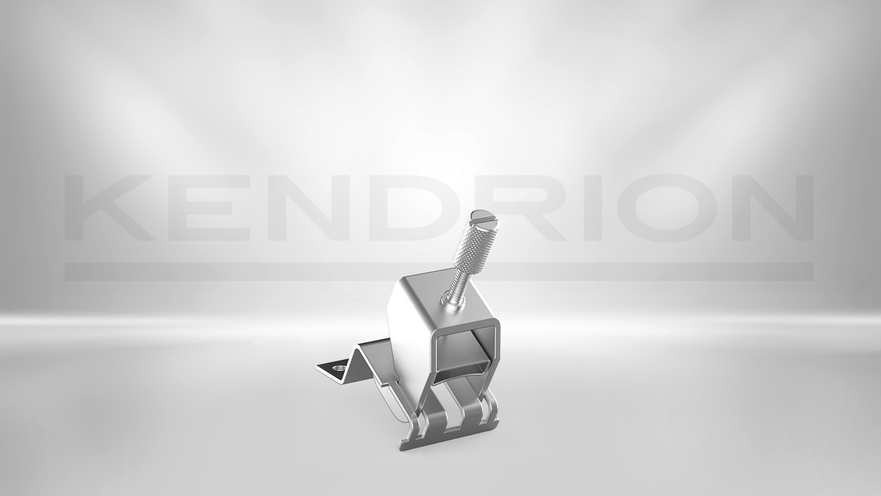

Shielding terminal 1x14 mm
694 412 04

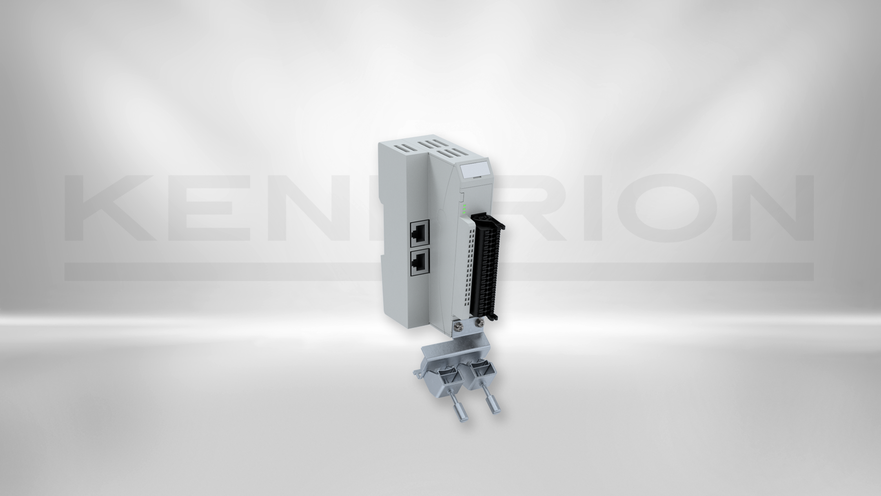

The Kuhnke FIO shielding terminal allows a simple installation of the cable screen. The shielding terminal leads the potential of the cable shield to the DIN rail on which the Kuhnke FIO module is snapped.
The shield clamp 1x14 mm is suitable for all FIO modules.
- EMC improvement
- Discharge of interference directly at the FIO module
- Strain relief for cables and wires with small cross-sections
Technical details
| Description | Value |
|---|---|
| Function | Accessories - Shielding terminal |
| Dimensions (W x H x D) | 1x14 mm |
| Product status | Standard product |
| Mounting | Mounted directly on the module, mounting material included |
| Certifications | CE, UL |
| IP-Protection Class | IP 20 |
