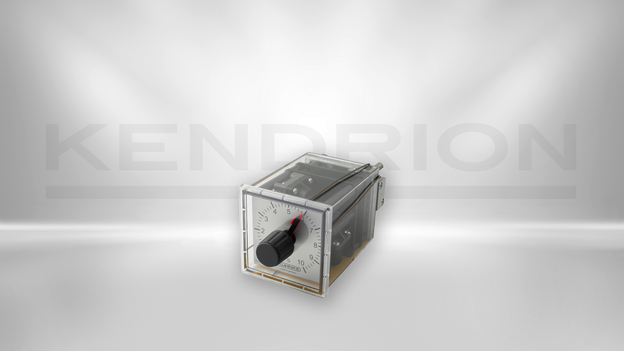

Pneumatic Timers (5/2-way, panel mounting)

54.022

The simple and compact design of this miniature PE converter with fixed switch-on pressure of 0.8 bar allows its use in various applications such as medical technology, dental treatment units, robotics, analysis systems, process and safety engineering. Easy mounting and high functional reliability are other advantages. By using silver contacts a long lifetime can be ensured even at high switching frequencies. As a result of the fire-risk evaluation according to EN 13463-1, the pneumatic timers are not subject to ATEX regulations. This means they may also be used in explosion hazardous areas as defined in IIG/ IID.

Technical details

Description Value
Time intervall 3 - 100 s
Function 5/2-way
Pressure range 0 - 10 bar
Type of pneumatic connection M5
Product type Timer
Mounting Panel mounting
Medium Compressed air, non lubricated
Ambient temperature -10 ... +60 °C
