Rod gripper NdFeB
550 4010 06

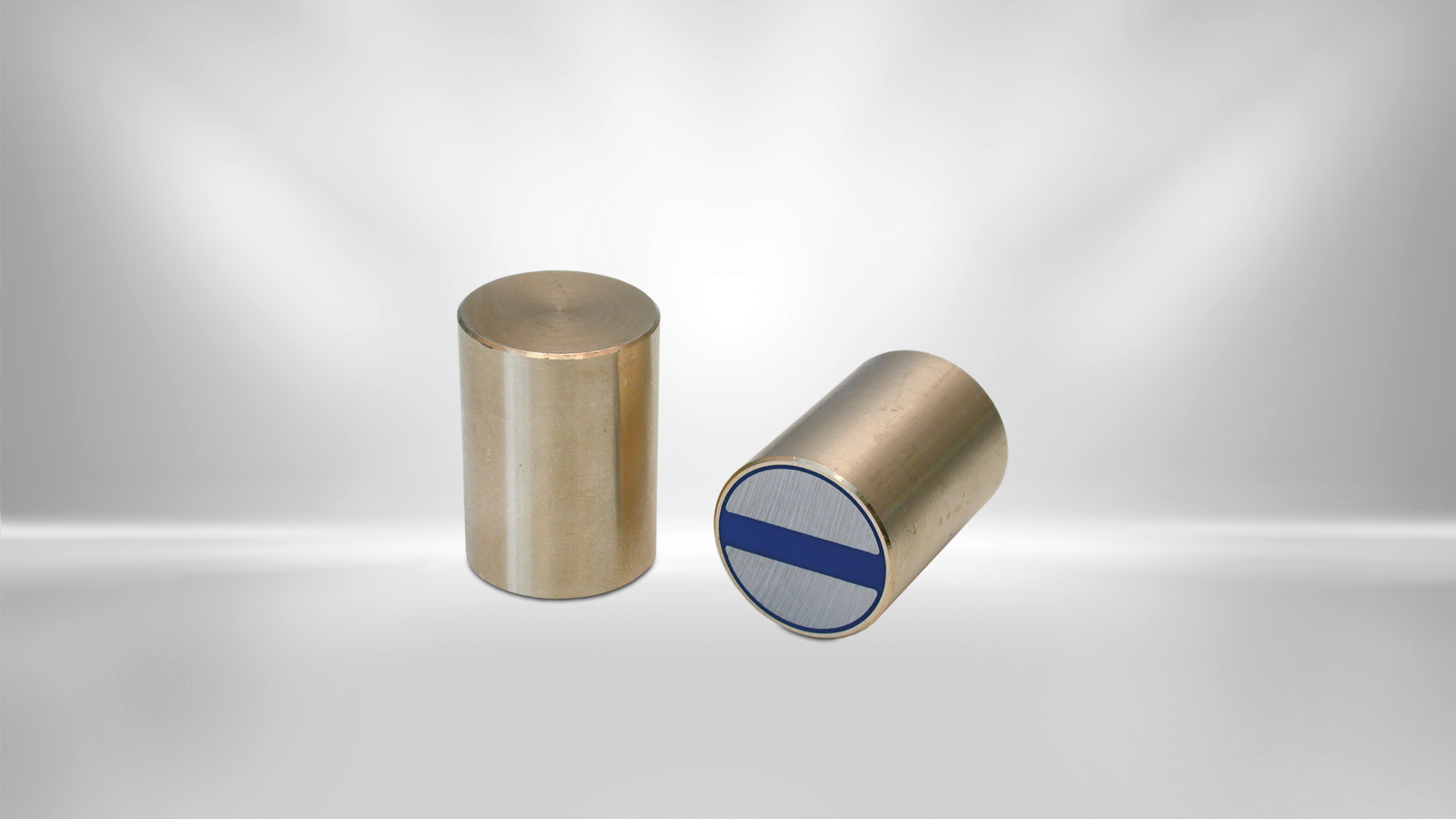

Rod gripper with a neodymium magnet in a brass housing.. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The rod gripper has no thread and is usually glued or pressed in.
Technical details
| Description | Value |
|---|---|
| Design | without thread |
| Material | NdFeB |
| Force | 10 N |
| Height | 20 mm |
| Shortened to | 10 mm |
| Measure "D" | 1.5 mm |
| Weight | 4.5 g |
| Temperature | 80 °C |
| Fitting Tolerance | h6 |
| Housing | brass |
