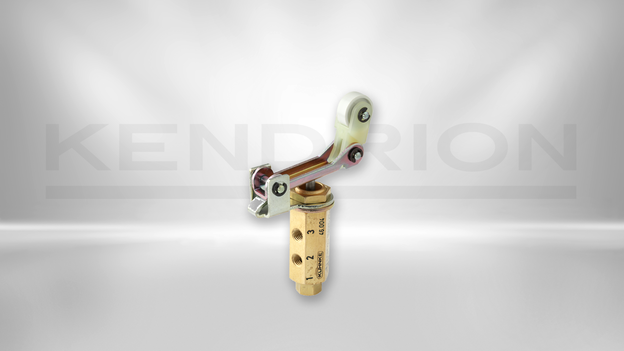

Mechanically Actuated Valve Type 46
46.004
Because of its hexagonal shape, this 3/2 way NC valve requires only a minimum of space.
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NC |
| Pressure range | 0 - 12 bar |
| Nominal orifice | 2 mm |
| Kv-value | 1.65 l/min |
| Actuation type | mechanically actuated, one way lever |
| Stroke | 4 mm |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Type of pneumatic connection | M5 |
| Returning mechanism | Spring |
| Ambient temperature | -10 ... +70 °C |
| Valve type | Poppet valve |
| Materials | Housing: brass, plunger: CrNi steel (corrosion-resistant), seal: NBR (oil-resistant) |
| Actuation | directly controlled |
| Accessories | Mounting flange (order no. 43.010-1), mounting bracket (order no. 43.010-2) |
| Identification number | 12127 |
