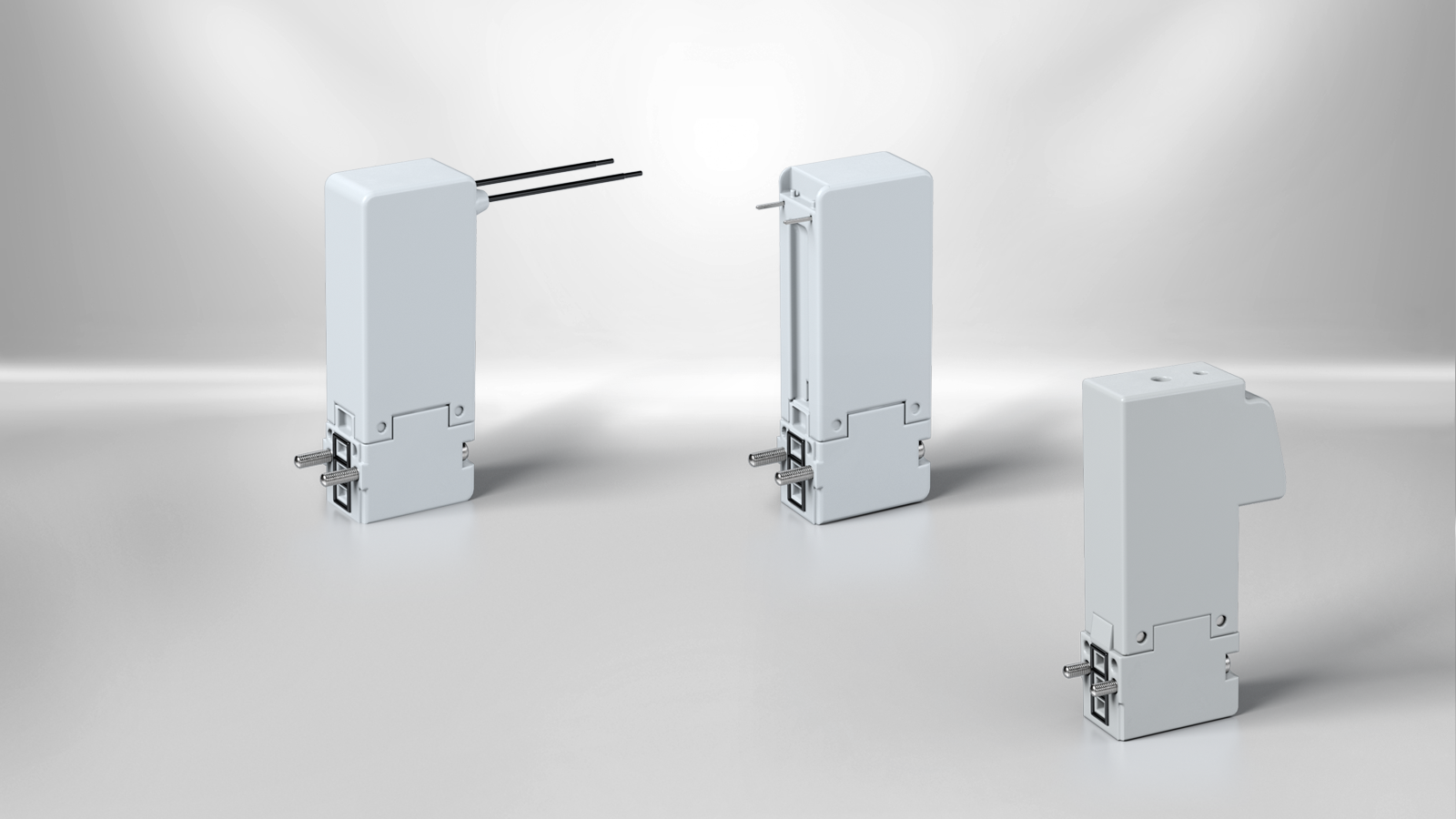

Proportional valves

Control and dosing of liquids and gases

Kendrion proportional valves enable discrete switching positions and intermediate positions of valve openings by means of external electronic control. Liquids and gases can be precisely metered. The compact proportional valves are used when variable volume flows have to be adjusted and have a 2/2-way NC function. They can be flexibly adapted and are used in a wide range of applications. On request, the valves can be designed to meet oxygen requirements in accordance with DIN EN ISO 15001. This means that they can be used in respirators, for example.

On request, the proportional valves can also be offered as customer-specific assemblies.

Kendrion proportional valves were formerly known under the name Kuhnke.

Find the right product now!

+49 (0) 4523 402-0

sales-ics@kendrion.com

Contact now

Function	2/2-way NC
Pressure range	0 - 3.5 bar
Nominal orifice	2.3 mm
Kv-value	2.05 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 8 bar
Nominal orifice	1.3 mm
Kv-value	0.65 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 6.5 bar
Nominal orifice	1.6 mm
Kv-value	1.05 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 6.5 bar
Nominal orifice	1.6 mm
Kv-value	1.05 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 6.5 bar
Nominal orifice	1.6 mm
Kv-value	1.05 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 5.0 bar
Nominal orifice	1.9 mm
Kv-value	1.4 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 4.0 bar
Nominal orifice	2.1 mm
Kv-value	1.75 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 3 bar
Nominal orifice	2.5 mm
Kv-value	2,4 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 8 bar
Nominal orifice	0.5 mm
Kv-value	0.11 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 5 bar
Nominal orifice	0.7 mm
Kv-value	0.23 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 3 bar
Nominal orifice	0.9 mm
Kv-value	0.33 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 8 bar
Nominal orifice	0.5 mm
Kv-value	0.11 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 5 bar
Nominal orifice	0.7 mm
Kv-value	0.23 l/min

Go to product

Function	2/2-way NC
Pressure range	0 - 3 bar
Nominal orifice	0.9 mm
Kv-value	0.33 l/min

Go to product

Title ascending descending	Type ascending descending	Function ascending descending	Pressure range (bar) ascending descending	Nominal orifice (mm) ascending descending	Kv-value (l/min) ascending descending	Size (mm) ascending descending	Actuation type ascending descending	Duty cycle (% ED) ascending descending	Type of electric connection ascending descending	Medium ascending descending	Nominal power (W) ascending descending	Nominal voltage (V DC) ascending descending	Type of pneumatic connection ascending descending	Returning mechanism ascending descending	Protection class ascending descending	Ambient temperature (°C) ascending descending	Valve type ascending descending	Materials ascending descending	Actuation ascending descending	Identification number ascending descending	Details

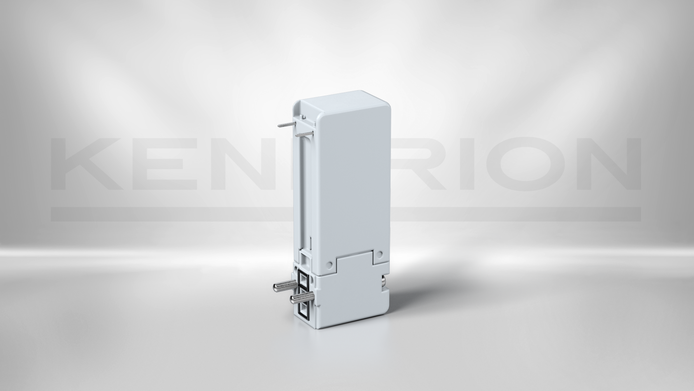

Proportional Valve Type 68P	68.058.71P	2/2-way NC	0 - 3.5	2.3	2.05	15	electrically actuated	100	Wire	Filtered (5 µm), lubricated and non lubricated air	5.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: FKM	directly controlled	200270	to the product
Proportional Valve Type 68P	68.038.30P	2/2-way NC	0 - 8	1.3	0.65	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	4.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	195464	to the product
Proportional Valve Type 68P	68.038.41P	2/2-way NC	0 - 6.5	1.6	1.05	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	4.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: FKM	directly controlled	79907	to the product
Proportional Valve Type 68P	68.058.40P	2/2-way NC	0 - 6.5	1.6	1.05	15	electrically actuated	100	Wire	Filtered (5 µm), lubricated and non lubricated air	4.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	187069	to the product
Proportional Valve Type 68P	68.038.40P	2/2-way NC	0 - 6.5	1.6	1.05	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	4.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	77821	to the product
Proportional Valve Type 68P	68.038.50P	2/2-way NC	0 - 5.0	1.9	1.4	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	4.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	196010	to the product
Proportional Valve Type 68P	68.038.60P	2/2-way NC	0 - 4.0	2.1	1.75	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	5.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	197830	to the product
Proportional Valve Type 68P	68.038.80P	2/2-way NC	0 - 3	2.5	2, 4	15	electrically actuated	100	Plug pins / pins	Filtered (5 µm), lubricated and non lubricated air	5.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	197833	to the product

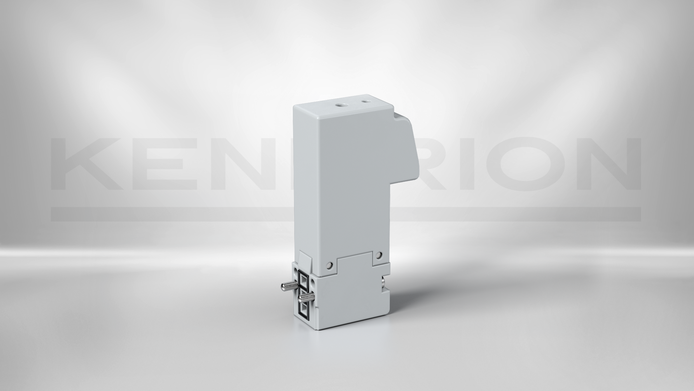

Proportional Valve Type 63P	63.028.10P	2/2-way NC	0 - 8	0.5	0.11	10	electrically actuated	100	Plug	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	196193	to the product
Proportional Valve Type 63P	63.028.20P	2/2-way NC	0 - 5	0.7	0.23	10	electrically actuated	100	Plug	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	196190	to the product
Proportional Valve Type 63P	63.028.30P	2/2-way NC	0 - 3	0.9	0.33	10	electrically actuated	100	Plug	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	183126	to the product

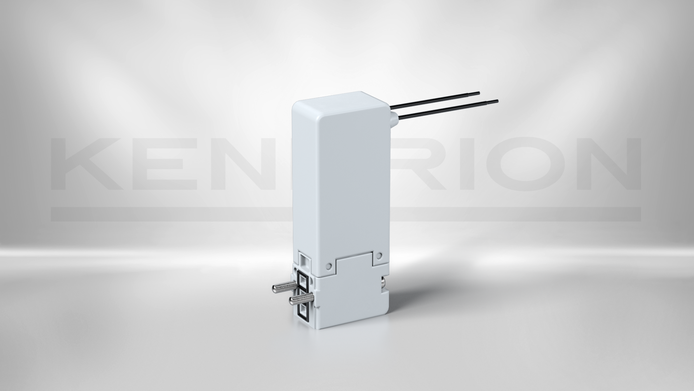

Proportional Valve Type 63P	63.058.10P	2/2-way NC	0 - 8	0.5	0.11	10	electrically actuated	100	Wire	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	-	to the product
Proportional Valve Type 63P	63.058.20P	2/2-way NC	0 - 5	0.7	0.23	10	electrically actuated	100	Wire	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	-	to the product
Proportional Valve Type 63P	63.058.30P	2/2-way NC	0 - 3	0.9	0.33	10	electrically actuated	100	Wire	Filtered (5 µm), lubricated and non lubricated air	3.2	24	Flange	Spring	IP65	-10 ... +50	Poppet valve	Base: PBT, seal: NBR	directly controlled	-	to the product
