Roller inductors
Inductive Heating for Rotating Tools
Kendrion roller inductors provide uniform, contactless heating of rollers and cylinders used in plastics processing and textile applications. The homogeneous energy input enables reduced material thickness, lowers thermal mass, and improves process efficiency while reducing energy consumption. Roller inductors are designed using numerical field simulation and are adapted to the geometric and thermal requirements of the application. They ensure defined temperature distribution and reliable operation. The systems are suitable for continuous process temperatures of up to 300 °C and operate without water cooling, reducing infrastructure requirements, system complexity, and maintenance effort while increasing operational reliability.
Products
(14)
|
Title
|
Type
|
Inner diameter roller (mm)
|
Heated Section
|
Rated power
|
Temperature range
|
Power density
|
Heating circuits
|
Inductor current
|
Inductor voltage
|
Efficency
|
Duty cycle
|
Electrical control
|
Electrical connection
|
Dimensions (W x H x D)
|
Product status
|
Certifications / Standards
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Inductor for heating rollers | ROUND 60 mm HS10002 | 60 | approx. 75 mm circumferential | 1, 5 kW per single coil | 0 ... 240°C | 106 kW/m² | 1 | 5 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Standard Product | Low Voltage Directive | |
|
|
Inductor for heating rollers | ROUND 80 mm | 80 | approx. 75 mm circumferential | 2, 0 kW per single coil | 0 ... 240°C | 105 kW/m² | 1 | 5 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | In preparation | Low Voltage Directive | |
|
|
Inductor for heating rollers | ROUND 100 mm | 100 | approx. 75 mm circumferential | 2, 5 kW per single coil | 0 ... 240°C | 106 kW/m² | 1 | 5 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | In VorbereitungIn preparation | Low Voltage Directive | |
|
Inductor for heating rollers | ROUND 120 mm HS | 120 | approx. 115 mm circumferential | 3, 0 kW | 0 ... 240°C (max. 300°C HT-Version) | 69 kW/m² | 1 | 12, 3 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details can be found in the drawing | In preparation | 61010 / CE | |
|

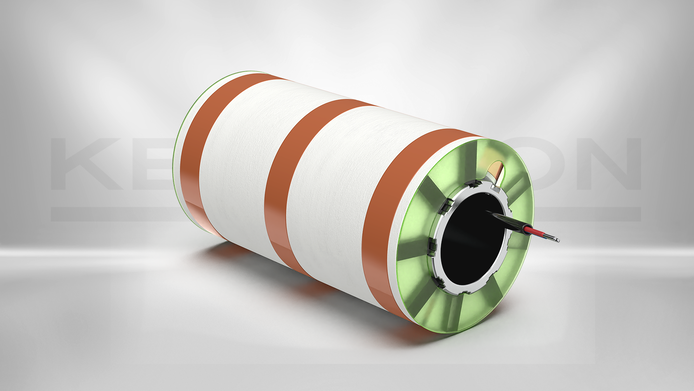

Inductor for heating rollers | ROUND 140 mm HS10015 | 144 | approx. 250 mm circumferential | 2, 5 kW | 0 ... 200°C | 22 kW/m² | 1 | 10, 3 A | 800 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Standard Product | 61010 / CE | |
|
Inductor for heating rollers | ROUND 160 mm HS | 160 | approx. 115 mm circumferential | 3, 0 kW | 0 ... 240°C (max. 300°C HT-Version) | 52 kW/m² | 1 | 12, 3 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Advance notice | 61010 / CE | |
|
|
Inductor for heating rollers | ROUND 180 mm HS | 180 | approx. 115 mm circumferential | 3, 0 kW | 0 ... 240°C (max. 300°C HT-Version) | 46 kW/m² | 1 | 12, 3 A | < 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Standard Product | 61010 / CE | |
|
|
Inductor for heating rollers | ROUND 200 mm HS 10018 | 200 | approx. 115 mm circumferential | 2 x 3, 2 kW | 0 ... 240°C (max. 300°C HT-Version) | 88 kW/m² | 2 | 13, 0 A | 670 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Standard Product | 61010 / CE | |
|

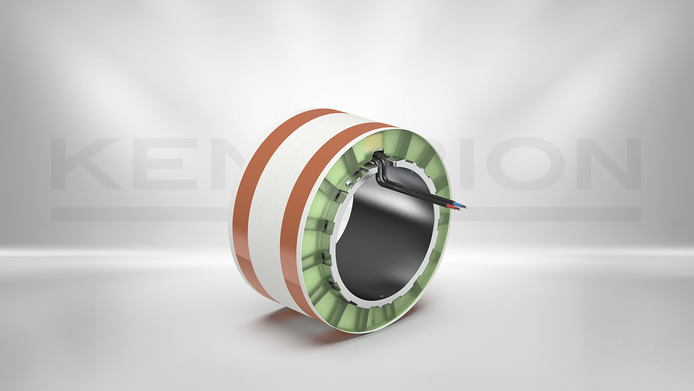

Inductor for heating rollers | ROUND 220 mm HS10010 | 220 | approx. 115 mm circumferential | 3, 5 kW | 0 ... 200°C (max. 300°C HT-Version) | 44 kW/m² | 1 | 12, 8 A | 800 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind der Zeichnung zu entnehmen | Standard Product | 61010 / CE | |
|
|
Inductor for heating rollers | ROUND 250 mm HS/HT | 250 | approx. 115 mm circumferential | 3, 5 kW | 0 ... 240°C, in HT Version up to 300°C | 38 kW/m² | 1 | 14, 4 A | 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details can be found in the drawing | In preparation | 61010 / CE | |
|
|
Inductor for heating rollers | ROUND 300 mm HS/HT | 300 | approx. 115 mm circumferential | 3, 5 kW | 0 ... 240°C, in HT Version up to 300°C | 32 kW/m² | 1 | 14, 4 A | 1000 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details can be found in the drawing | In preparation | - | |
|
|
Inductor for heating rollers | ROUND 350 mm HS/HT | 350 | approx. 115 mm circumferential | 6 kW | 0 ... 240°C, in HT Version up to 300°C | 47 kW/m² | 1 | 24 Aeff | 1000 Veff | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details sind in der Zeichnung zu finden | In preparation | - | |
|
Inductor for heating rollers | ROUND 400 mm HS/HT | 400 | approx. 115 mm circumferential | 6 kW | 0 ... 240°C, in HT Version up to 300°C | 42 kW/m² | 1 | 24 Aeff | 1000 Veff | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details can be found in the drawing | In preparation | - | |
|
Inductor for heating rollers | ROUND 480 mm HS/HT | 480 | approx. 106 mm circumferential | 6 kW | 0 ... 240°C, in HT Version up to 300°C | 37 kW/m² | 1 | 24 Aeff | 1000 Veff | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Details can be found in the drawing | In preparation | - |
