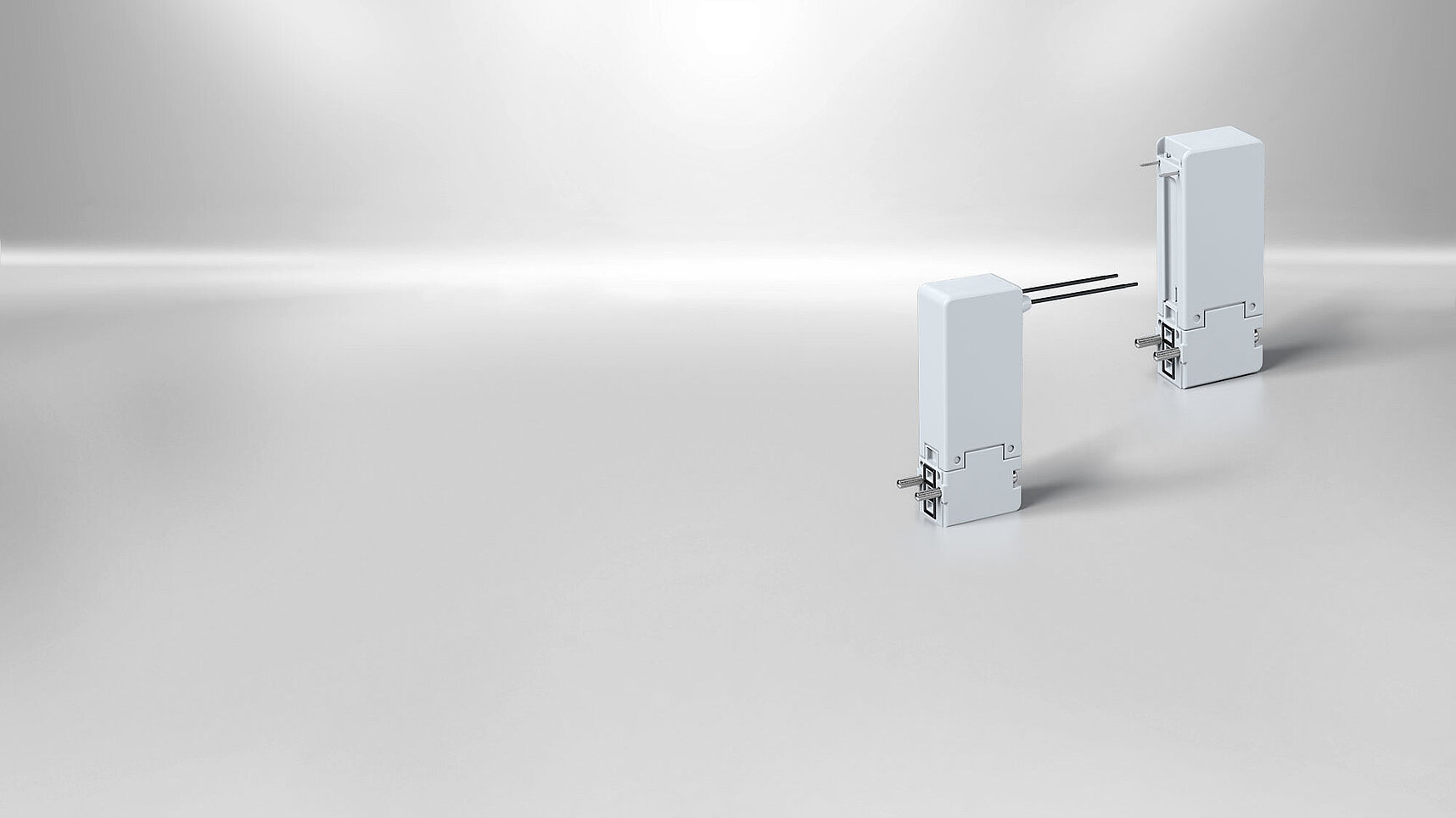

Precise Control of Liquids and Gases: Versatile Applications with KENDRION Proportional Valves

KENDRION proportional valves are used for control and dosing of liquids like water or gases like oxygen. The flexibility in adapting KENDRION proportional valves regarding media compatibility or performance data creates possibilities for various applications. The flow of 2/2-way proportional valves can be controlled by current input variation. If used in closed-loop with appropriate electronics and sensors, the flow can be continuously regulated to specific levels.

Not only can KENDRION proportional valves be delivered as a stand-alone product, moreover they can be designed as customer-specific valve manifolds or valve systems with integrated control electronics.KENDRION standard proportional valves series 68P with 15 mm width reaches flow rates of 0 to 160 l/min air.The KENDRION standard proportional valves series 63P with 10 mm width enlarges the field of possible applications in the area of low flows ranging from 0 to 30 l/min air.



Discover our Proportional Valves in the ProductFinder



Proportional ValvesVideo
Watch the Video: The Proportional Valve 68P offers precise control charcacteristics
The 15 mm proportional valve from Kendrion is versatile and is characterized by optimal control characteristics, thus combining even better technical performance with even greater commercial benefits!
With a scalable nominal width of 1.3-2.5 mm, the proportional valve is ideal for controlling and dosing gaseous media such as inert gases or medical oxygen. Our video shows the precise control characteristics and flow rates in the various opening positions.

Benefits at a glance

  • Compact design
  • Higher flows at low power consumption
  • Low-noise version on request
  • Use of different media possible
  • Cost-efficient design
  • Small hysteresis
  • Good regulation properties

General Technical Specifications

Parameter Value
Nominal voltage 24 V DC; others on request
Pressure range 0 to 8 bar; depending on orifice size
Nominal orifice 0.5 to 2.5 mm
Valve functions 2/2-way NC
Ambient temperature From -10 °C to +40 °C
Power consumption 3.2 to 5.2 W
Duty cycle 100%
Electrical connections Series 63P: Plug; Series 68P: Wire or pin
Operating medium 5 micron filtered, lubricated or non-lubricated compressed air; also suitable for other media conforming to ISO-VG 10.

Download

Datasheet | 15mm Proportional valves
pdf - 759 KB
Brochures and Flyers
Application Report | Mixing and dosing of fuel gases
pdf - 249 KB
Brochures and Flyers
Application Report | Precise air control of dental turbines
pdf - 297 KB
Brochures and Flyers
Application report | Smart solutions for dental treatment units
pdf - 306 KB
Operating instructions
Chemical resistance of plastics | Kendrion valves
pdf - 987 KB


Visit our Kendrion ProductFinder

Find technical data and product-specific information about our Standard-Portfolio in our Product Finder!

Product Finder
