Brakes
Electromagnetic actuated
Electromagnetically actuated brakes are designed to bring a moving load to a standstill and hold it (working brake) or to fix the position of an inactive load (holding brake). The activation (closing or opening) of the brake usually must happen in a split of a second to be able to brake loads quickly and safely in high-frequency applications.
Electromagnetic brakes are mainly used in electric motors, but also in integrated solutions. Applications include servo and geared motors, robotics, AGVs, industrial trucks, wind power, medical technology and many more. Depending on the application, either spring-applied brakes or permanent magnet brakes are used.
Products
(201)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Brake size
ascending
descending
|
Torque (Nm)
ascending
descending
|
Torque definition
ascending
descending
|
Operation mode
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Nominal power (W)
ascending
descending
|
Max. switching energy per ES (J)
ascending
descending
|
Number of emergency stops
ascending
descending
|
Temperature range
ascending
descending
|
Max. rotation speed (min-1)
ascending
descending
|
E-Stop rotation speed (min-1)
ascending
descending
|
Backlash
ascending
descending
|
Thermal class
ascending
descending
|
IP Protection class
ascending
descending
|
Weight (kg)
ascending
descending
|
Brake type
ascending
descending
|
Armature type
ascending
descending
|
Hub type
ascending
descending
|
Hand release
ascending
descending
|
Counter friction part
ascending
descending
|
PWM control
ascending
descending
|
Outer diameter (mm)
ascending
descending
|
Lenght (mm)
ascending
descending
|
Hub diameter (mm)
ascending
descending
|
Keyway
ascending
descending
|
Pitch circle front side (mm)
ascending
descending
|
Pitch circle flange side (mm)
ascending
descending
|
Product Line
ascending
descending
|
Total work (kJ)
ascending
descending
|
Inner diameter (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

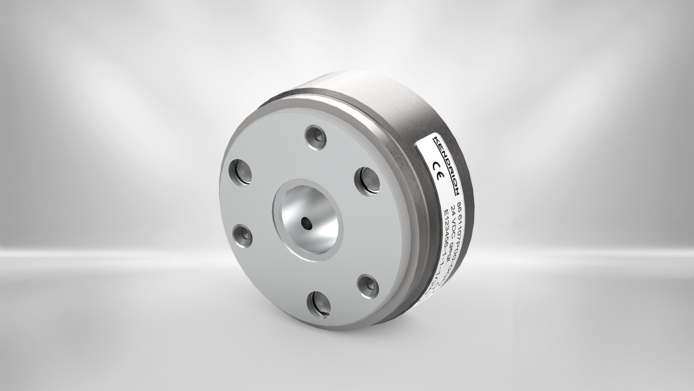

Permanent Magnet Brake - PM Line
|
86 62114H00-0039 | 14 | 80 | M4 (static) | Holding Brake | 24 | 27 | 1450 | 500 | -5°C...120°C | 8000 | 3000 | 0° | F | IP00 | 4.1 | 621 | 400 | - | - | - | possible | 162 | 53.5 | 50 | yes | - | 151 | PM Line | 725 | 70 | to the product |
|
|
Permanent Magnet Brake - PM Line
|
86 62114H00-0018 | 14 | 80 | M4 (static) | Holding Brake | 24 | 27 | 1450 | 500 | -5°C...120°C | 8000 | 3000 | 0° | F | IP00 | 4.1 | 621 | 800 | - | - | - | possible | 162 | 54 | 60.2 | - | - | 151 | PM Line | 725 | 70 | to the product |
|
|
Permanent Magnet Brake - PM Line
|
86 62116H00-0011 | 16 | 120 | M4 (static) | Holding Brake | 24 | 35 | 1550 | 500 | -5°C...120°C | 8000 | 3000 | 0° | F | IP00 | 6.0 | 621 | 200 | - | - | - | possible | 190 | 50.5 | - | - | - | 175 | PM Line | 775 | 80 | to the product |
|
|
Permanent Magnet Brake - PM Line
|
86 62116H00-0022 | 16 | 120 | M4 (static) | Holding Brake | 24 | 35 | 1550 | 500 | -5°C...120°C | 8000 | 3000 | 0° | F | IP00 | 6.0 | 621 | 300 | - | - | - | possible | 190 | 90.5 | 30 | yes | - | 175 | PM Line | 775 | 80 | to the product |
|
|
Permanent Magnet Brake - PM Line
|
86 62116H00-0019 | 16 | 120 | M4 (static) | Holding Brake | 24 | 35 | 1550 | 500 | -5°C...120°C | 8000 | 3000 | 0° | F | IP00 | 6.0 | 621 | 400 | - | - | - | possible | 190 | 60 | 40 | yes | - | 175 | PM Line | 775 | 80 | to the product |
|
|
Permanent Magnet Brake - PM Line
|
86 62121H00-0003 | 21 | 240 | M4 (static) | Holding Brake | 24 | 50.3 | 2000 | 500 | -5°C...120°C | 4000 | 3000 | 0° | F | IP00 | 10.5 | 621 | 200 | - | - | - | possible | 230 | 55.2 | - | - | - | 215 | PM Line | 1000 | 215 | to the product |
|
Permanent magnet brake - High Torque Line
|
86 61104P00-0003 | 04 | 2.5 | M4 (static) | Holding Brake | 24 | 9 | 30 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 44 | 26.9 | 10.2 | - | 35 | - | High Torque Line | 15 | 14.9 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61105P00-0002 | 05 | 5 | M4 (static) | Holding Brake | 24 | 12 | 30 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 56 | 34.8 | 17.2 | - | 42 | - | High Torque Line | 15 | 23 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61106P00-0001 | 06 | 9 | M4 (static) | Holding Brake | 24 | 15 | 300 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 65 | 34.5 | 17.2 | - | 48 | - | High Torque Line | 150 | 23 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61107P00-0001 | 07 | 10 | M4 (static) | Holding Brake | 24 | 14 | 300 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 72 | 31 | 20.2 | - | 54 | - | High Torque Line | 150 | 27 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61108P00-0002 | 08 | 15 | M4 (static) | Holding Brake | 24 | 18 | 900 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 82 | 36.3 | 20.2 | - | 54 | - | High Torque Line | 450 | 27 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61109P00-0005 | 09 | 22 | M4 (static) | Holding Brake | 24 | 19 | 900 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 92 | 38 | 26.2 | - | 72 | - | High Torque Line | 450 | 32 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61110P00-0004 | 10 | 32 | M4 (static) | Holding Brake | 24 | 22.5 | 1400 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 102 | 52 | 30.2 | - | 83 | - | High Torque Line | 700 | 44 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61111P00-0003 | 11 | 60 | M4 (static) | Holding Brake | 24 | 25 | 2000 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 122 | 52.4 | 36 | - | 83 | - | High Torque Line | 1000 | 48.5 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61114P00-0003 | 14 | 80 | M4 (static) | Holding Brake | 24 | 36.5 | 5300 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 140 | 56.6 | 40.2 | - | 97 | - | High Torque Line | 2650 | 56.5 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61116P00-0002 | 16 | 140 | M4 (static) | Holding Brake | 24 | 43 | 5300 | 500 | -15°C...120°C | 6000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 160 | 74.6 | 45.5 | - | 120 | - | High Torque Line | 2650 | 63 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61121P00-0001 | 21 | 280 | M4 (static) | Holding Brake | 24 | 41.8 | 10000 | 500 | -15°C...120°C | 6000 | 3000 | 0° | F | IP00 | - | P00 | 800 | - | - | - | possible | 205 | 80.8 | 48 | - | 167 | - | High Torque Line | 5000 | 91 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61103K00-0002 | 03 | 0.4 | M4 (static) | Holding Brake | 24 | 6 | 10 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | K00 | 300 | - | - | - | possible | 32 | 29.6 | 8 | - | 27 | - | High Torque Line | 5 | 9.6 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61104K00-0004 | 04 | 2.5 | M4 (static) | Holding Brake | 24 | 9 | 30 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | K00 | 300 | - | - | - | possible | 44 | 26.9 | 10 | - | 35 | - | High Torque Line | 15 | 14.9 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61105K00-0007 | 05 | 5 | M4 (static) | Holding Brake | 24 | 12 | 30 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | K00 | 300 | - | - | - | possible | 56 | 34.8 | 17.2 | - | 42 | - | High Torque Line | 15 | 23 | to the product |
|
|
Permanent magnet brake - High Torque Line
|
86 61106K00-0003 | 06 | 9 | M4 (static) | Holding Brake | 24 | 15 | 300 | 500 | -15°C...120°C | 10000 | 3000 | 0° | F | IP00 | - | K00 | 300 | - | - | - | possible | 65 | 34.5 | 18 | - | 48 | - | High Torque Line | 150 | 23 | to the product |
