Direct-operated solenoid valves
Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of direct-operated solenoid valves. Direct operated solenoid valves from Kendrion achieve high flow rates of liquids and gases with low power consumption and compact design. The solenoid valves are used, among other, in respiratory and anesthesia devices to control oxygen or in dental technology to control air, vacuum and water.
Standard Kendrion solenoid valves consist of several models with different sizes. On request, the standard solenoid valves can be customized.
- 10mm: 63.0 (bistable valves) and 63.1 series
- 15mm: 68 series
- 16mm: 64 series
- 20mm: 65 series
Want to learn more about how Kendrion direct-operated solenoid valves work and their applications?
Products
(146)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Function
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Nominal orifice (mm)
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Kv-value (l/min)
ascending
descending
|
Size (mm)
ascending
descending
|
Actuation type
ascending
descending
|
Duty cycle (% ED)
ascending
descending
|
Type of electric connection
ascending
descending
|
Medium
ascending
descending
|
Nominal power (W)
ascending
descending
|
Nominal voltage (V DC)
ascending
descending
|
Nominal current (mA)
ascending
descending
|
Returning mechanism
ascending
descending
|
Protection class
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Valve type
ascending
descending
|
Materials
ascending
descending
|
Actuation
ascending
descending
|
Identification number
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Solenoid Valve Type 68
|
68.050.41 | 3/2-way NC | 0 - 10 | 1.3 | Flange | 0.65 | 15 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 3 | 24 | - | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: FKM | directly controlled | 75005 | to the product |
|

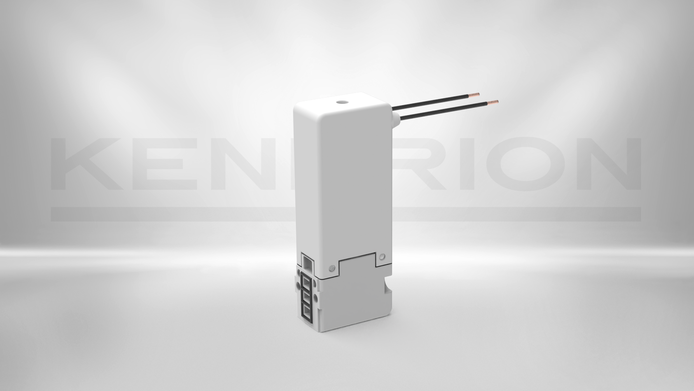

Solenoid Valve Type 68
|
68.050.51 | 3/2-way NC | 0 - 5 | 1.9 | Flange | 1.2 | 15 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 3 | 24 | - | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: FKM | directly controlled | 75006 | to the product |
|
Solenoid Valve Type 98
|
98.020.00 | 3/2-way NC | 0 - 7 | 2.4 | Flange | 2.4 | 16 | electrically actuated | 100 | Tag connector | Filtered (5 µm), lubricated and non lubricated air | 3 | 24 | - | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 75361 | to the product |
|

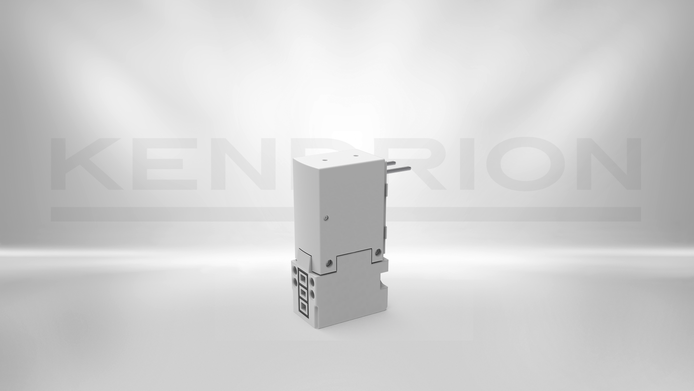

Solenoid Valve Type 63.1
|
63.132.30 | 2/2-way NC | 0 - 2 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.3 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|

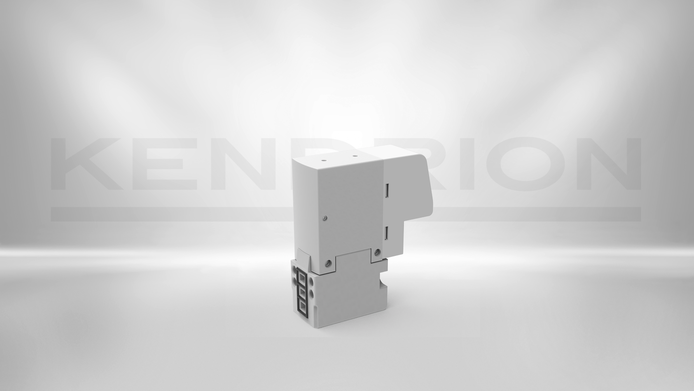

Solenoid Valve Type 63.1
|
63.111.20 | 3/2-way NO | 0 - 3 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
Solenoid Valve Type 63.1
|
63.112.10 | 2/2-way NC | 0 - 8 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
Solenoid Valve Type 63.1
|
63.112.20 | 2/2-way NC | 0 - 3 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
Solenoid Valve Type 63.1
|
63.112.30 | 2/2-way NC | 0 - 2 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
Solenoid Valve Type 63.1
|
63.113.20 | 2/2-way NO | 0 - 3 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|

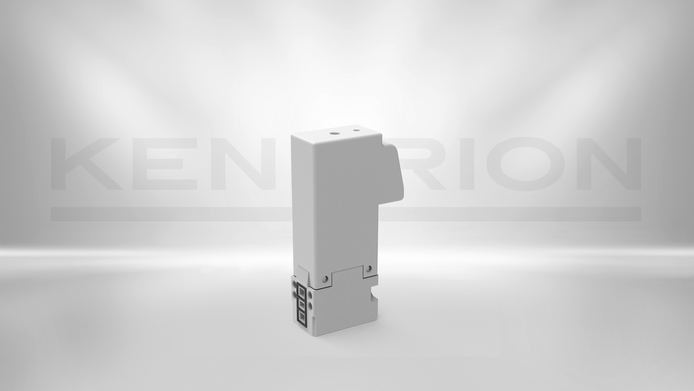

Solenoid Valve Type 63.0
|
63.022.10 | 2/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 172345 | to the product |
|
Solenoid Valve Type 63.0
|
63.022.20 | 2/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 172914 | to the product |
|
Solenoid Valve Type 63.0
|
63.022.30 | 2/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 172916 | to the product |
|
Solenoid Valve Type 63.0
|
63.023.20 | 2/2-way NO | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 172918 | to the product |
|
Solenoid Valve Type 63.0
|
63.052.10 | 2/2-way NO | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
|
Solenoid Valve Type 63.0
|
63.052.20 | 2/2-way NO | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 182850 | to the product |
|

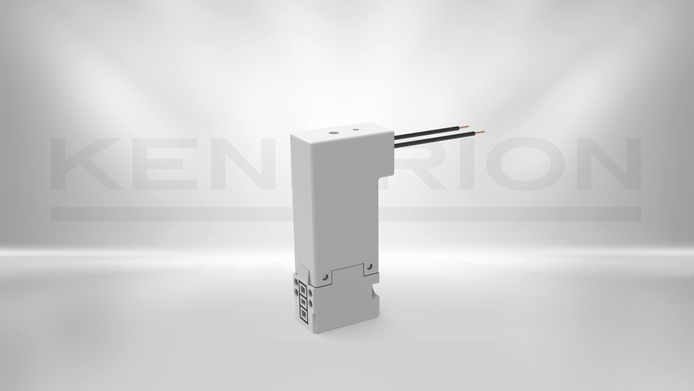

Solenoid Valve Type 63.0
|
63.052.30 | 2/2-way NO | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 179085 | to the product |
|
Solenoid Valve Type 63.0
|
63.053.20 | 2/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
|
Solenoid Valve Type 63.0
|
63.032.10 | 2/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 179024 | to the product |
|
Solenoid Valve Type 63.0
|
63.032.20 | 2/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 195561 | to the product |
|

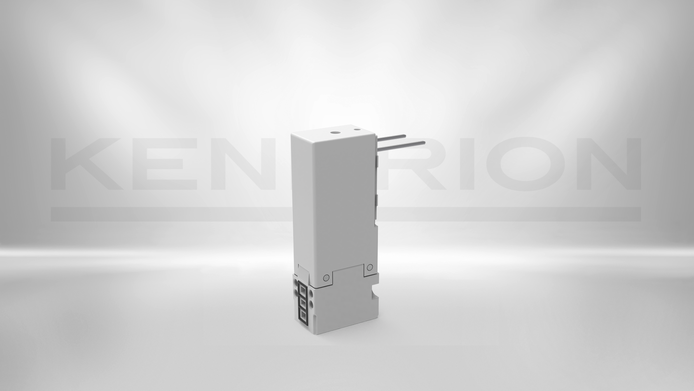

Solenoid Valve Type 63.0
|
63.033.20 | 2/2-way NO | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | - | to the product |
