Door holding magnets
Electromagnetic door holders
Kendrion offers a wide range of different door holding solenoids in tested quality. Doors are held open with low power consumption and high holding forces and closed by interrupting the power supply. Kendrion door holding solenoids are mainly used as holding devices on fire doors, gates or flaps. As a market-leading manufacturer, Kendrion offers a program for use in fire protection areas that complies with the guidelines. The electromagnetic door holding systems are also used on conventional doors in business and entrance areas and in special versions in maritime areas.
Products
(71)
|
Title
|
Type
|
Nominal voltage (V)
|
Duty cycle (%)
|
Power consumption (W)
|
Holding force (N)
|
Connection
|
Products Approvals
|
Mounting
|
Special Features
|
Design
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Door holding magnets GTR070 | GTR070.703101 | 24 | 100 | 2.6 | 1300 | free leads | VdS, ATEX | single magnet | - | - | |
|

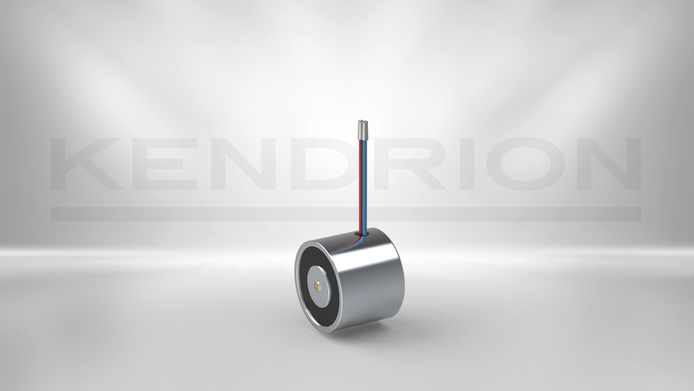

Door holding magnets GTR025 | GTR025.000501 | 24 | 100 | 1.6 | 107 | free leads | - | single magnet | - | - | |
|

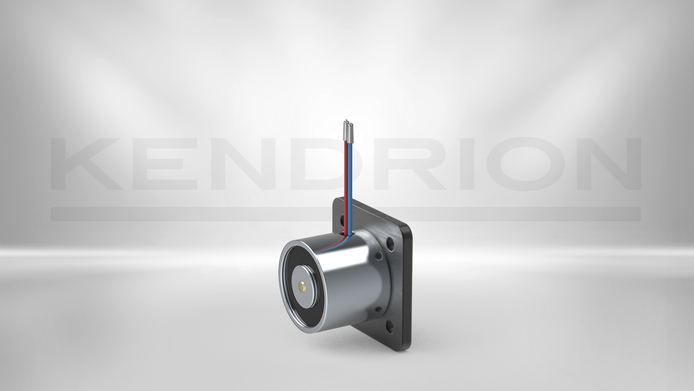

Door holding magnets GTR025 | GTR025.025501 | 24 | 100 | 1.6 | 107 | free leads | - | wall mounting | base plate | - | |
|

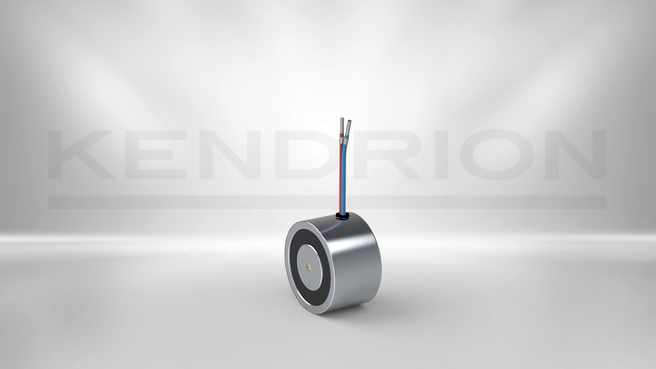

Door holding magnets GTR042 | GTR042.125012 | 24 | 100 | 1.5 | 300 | free leads | VdS | single magnet | - | - | |
|

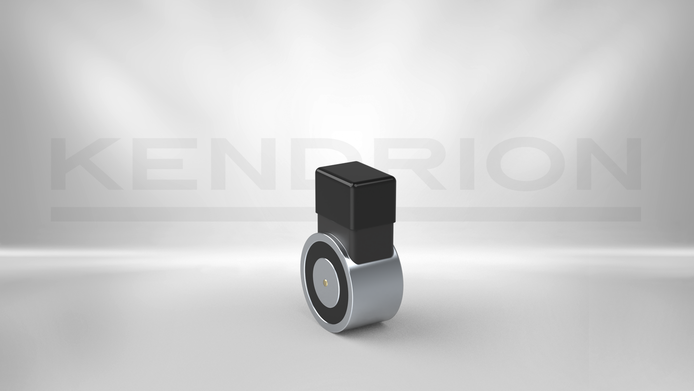

Door holding magnets GTR042 | GTR042.130003 | 24 | 100 | 1.5 | 300 | terminal clamp | VdS | single magnet | - | - | |
|

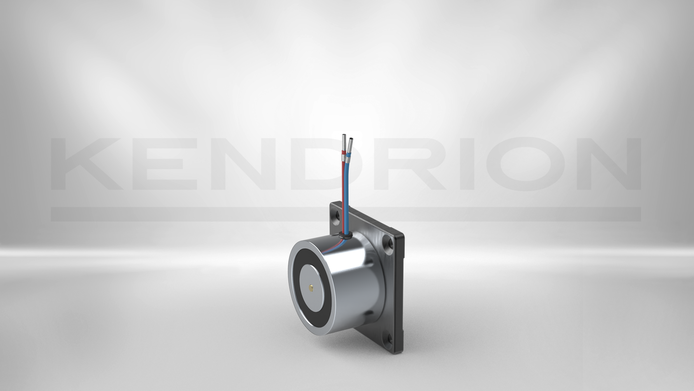

Door holding magnets GTR042 | GTR042.100003 | 24 | 100 | 1.5 | 300 | free leads | VdS | wall mounting | base plate | - | |
|

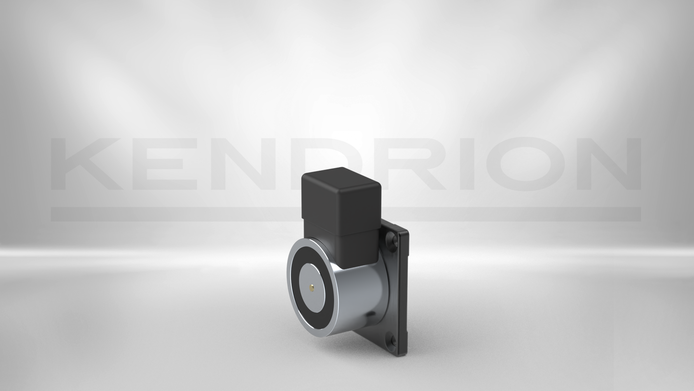

Door holding magnets GTR042 | GTR042.100011 | 24 | 100 | 1.5 | 300 | terminal clamp | VdS | wall mounting | base plate | - | |
|

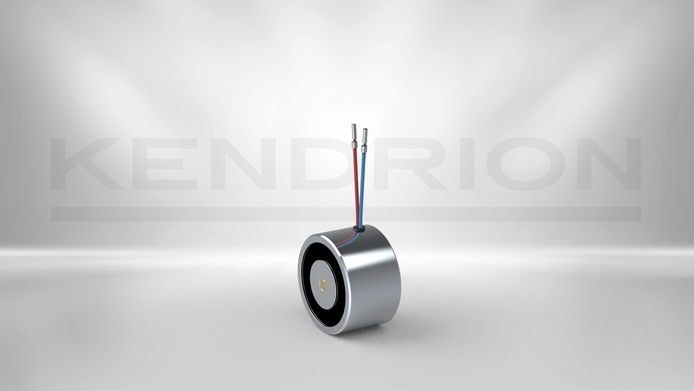

Door holding magnets GTR050 | GTR050.007008 | 24 | 100 | 1.5 | 490 | free leads | VdS | single magnet | - | - | |
|

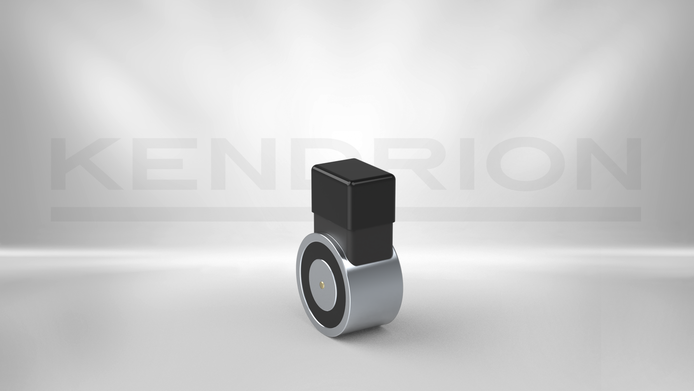

Door holding magnets GTR050 | GTR050.007013 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | single magnet | - | - | |
|

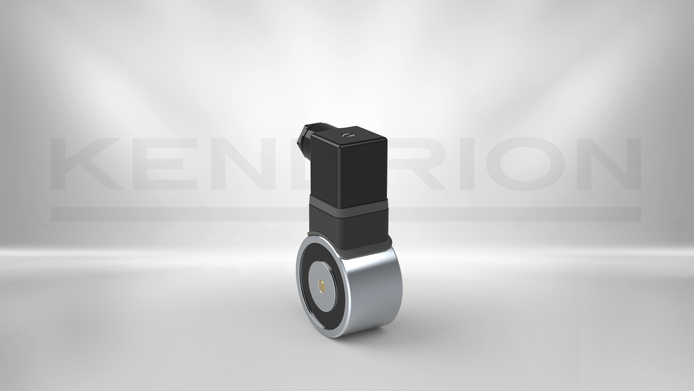

Door holding magnets GTR050 | GTR050.007015 | 24 | 100 | 1.5 | 490 | plug in connector | VdS | single magnet | - | - | |
|

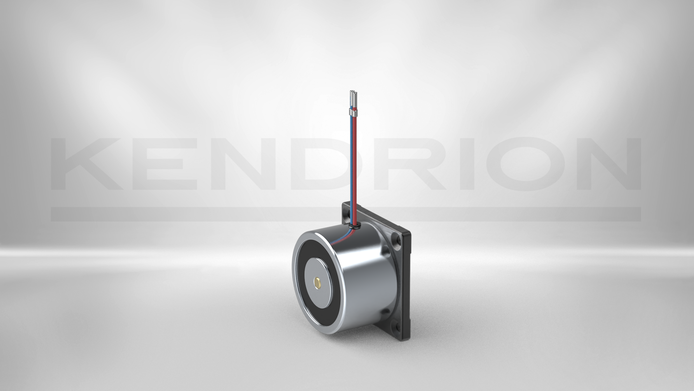

Door holding magnets GTR050 | GTR050.030506 | 24 | 100 | 1.5 | 490 | Free leads | VdS | wall mounting | base plate | - | |
|

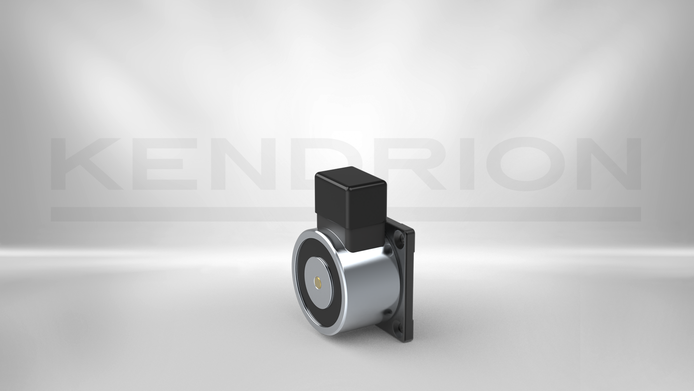

Door holding magnets GTR050 | GTR050.030507 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | wall mounting | base plate | - | |
|

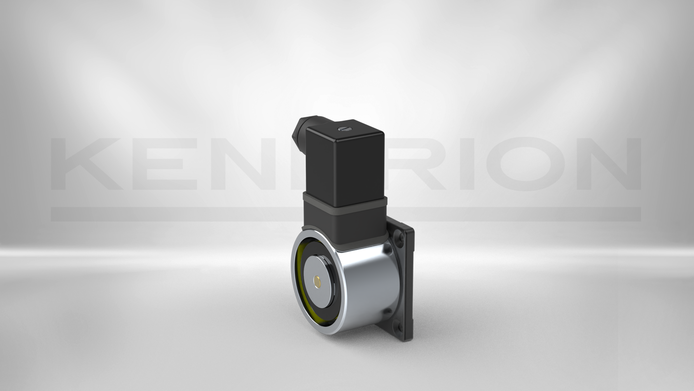

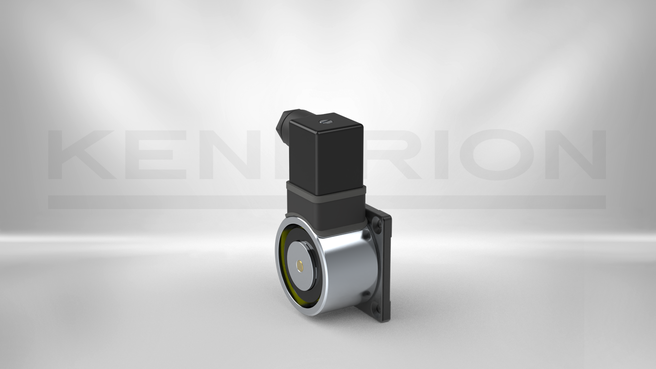

Door holding magnets GTR050 | GTR050.025012 | 24 | 100 | 1.5 | 490 | plug in connector | VdS | wall mounting | base plate | - | |
|

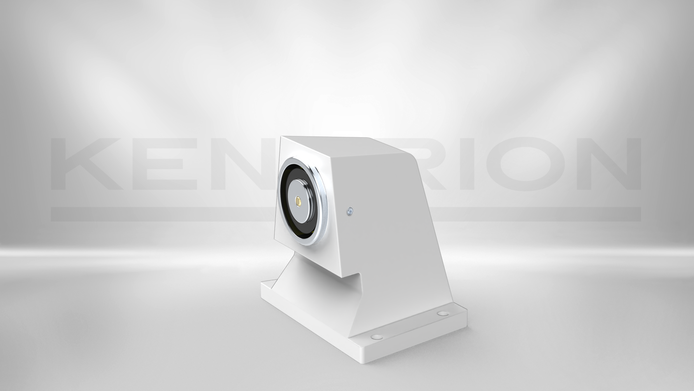

Door holding magnets GTR050 | GTR050.500002 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | floor mounting | housing | Aluminium housing | |
|

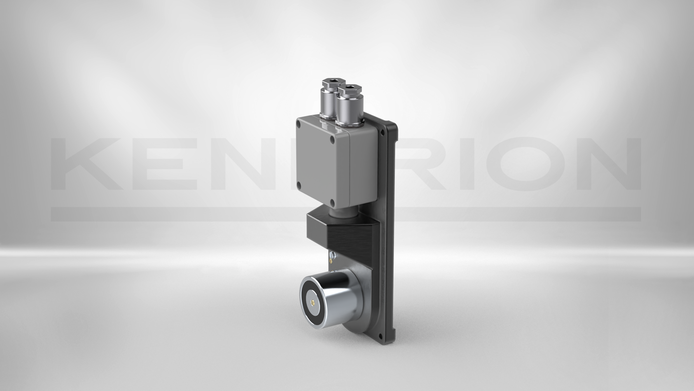

Door holding magnets GTR050 | GTR050.150002 | 24 | 100 | 1.5 | 490 | connection box | VdS, DNV | wall mounting | base plate | Ship model, IP56 | |
|
Door holding magnets GTR050 | GTR050.180501 | 24 | 100 | 3 | 588 | terminal clamp | VdS, ATEX | wall mounting | housing | EXprotected Zone 21/22 | |
|

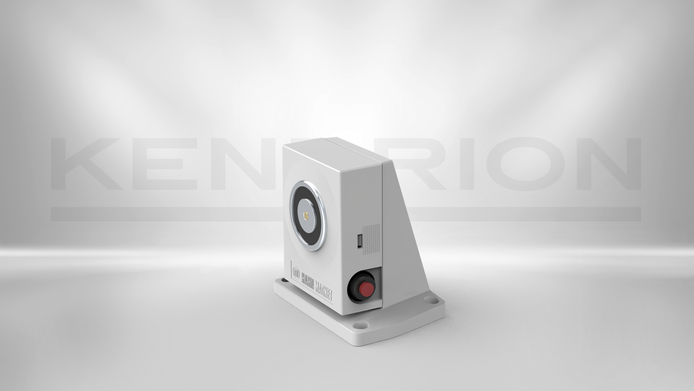

Door holding magnets GTR050 | GTR050.203010 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | floor mounting | housing, NC button | - | |
|

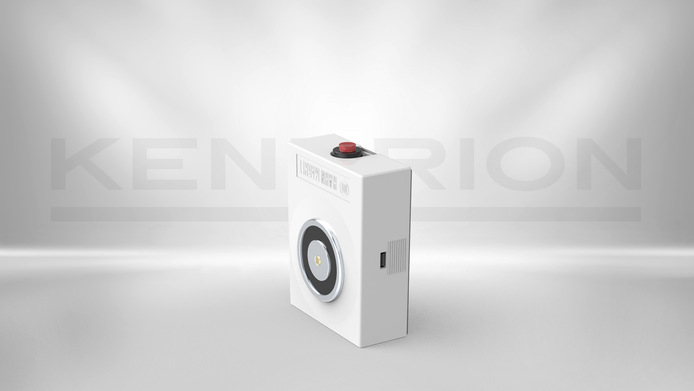

Door holding magnets GTR050 | GTR050.228503 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | wall mounting | housing, NC button | - | |
|

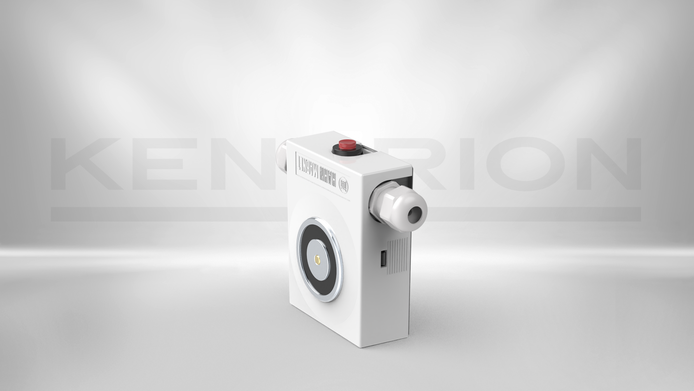

Door holding magnets GTR050 | GTR050.252505 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | wall mounting | housing, NC button | PG cable glands | |
|

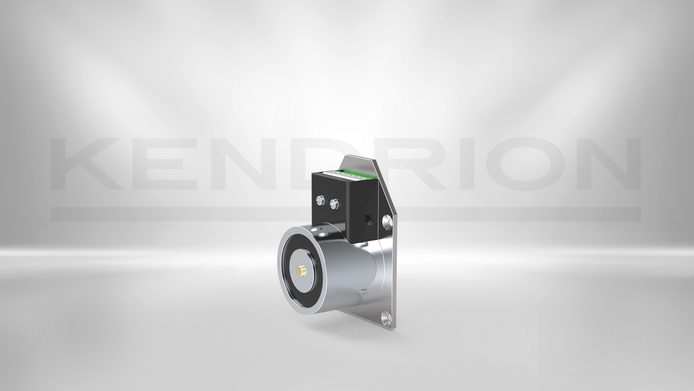

Door holding magnets GTR050 | GTR050.536001 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | wall mounting | base plate, sensing | Micro switch | |
|

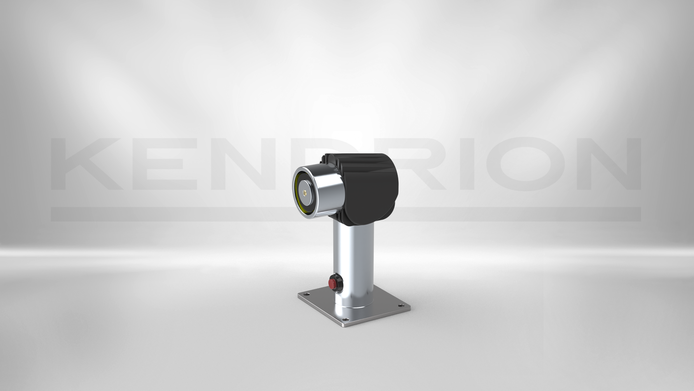

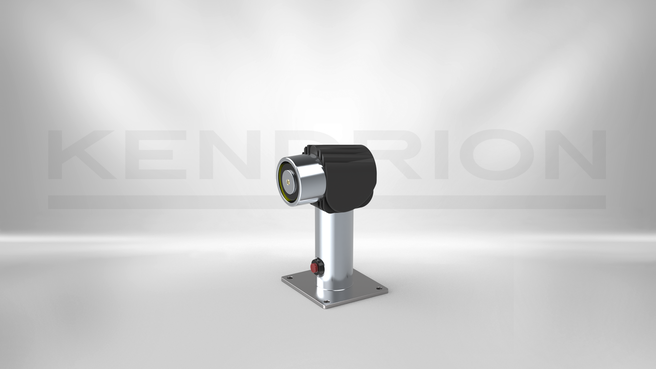

Door holding magnets GTR050 | GTR050.276020 | 24 | 100 | 1.5 | 490 | terminal clamp | VdS | floor mounting | extension tube, NC button | plastic swivel head 150/175 mm |
