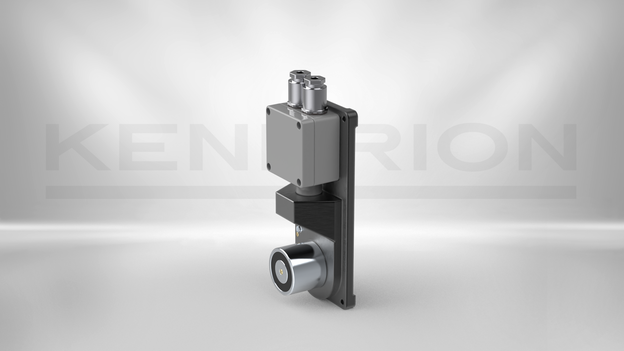

Door holding magnet GTR050 for the use on ships

GTR050.150002

The door holding magnet GTR050.150002 is especially designed and approved for the use on ships. It is certified by the DNV (certidicate No: TAE00002JD)

Door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard.

Product features:

  • Coil vacuum encapsulated (IP65)
  • VdS quality-controlled
  • Tested according to EN1155 & EN 14637
  • Optimised design and quality
  • Accessories: Anchor plate
Page as a PDF

Technical details

Description Value
Nominal voltage 24 V
Duty cycle 100 %
Power consumption 1.5 W
Holding force 490 N
Design Ship model, IP65
Connection Connection box
