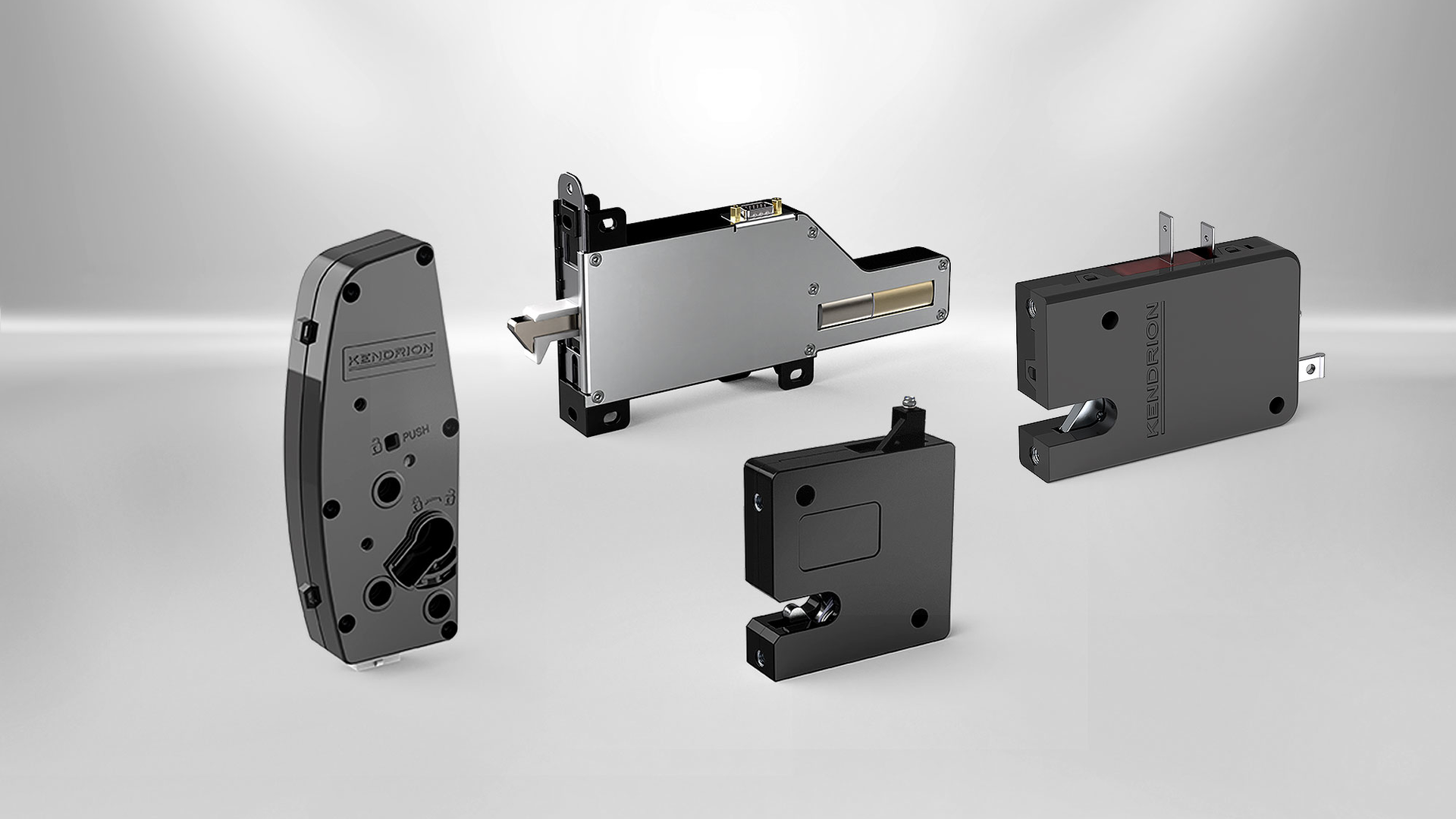

Door locks
Solenoid door locks with high locking forces
Kendrion solenoid door locks are based on many years of experience in the field of high-tech locking systems. They are characterized by very high locking forces and favor a fast and reliable unlocking.
Do you need help choosing the right product? Use our product guide now.
Products
(4)
|
Title
|
Type
|
Usage of the locking
|
Way of locking
|
Nominal voltage (V)
|
Duty cycle (%)
|
Power consumption (W)
|
Max. static holding force (N)
|
Max. load force for electrical unlocking (N)
|
Connection
|
Snap-in function
|
Emergency opener
|
Operating temperature
|
Dimensions
|
Service life
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

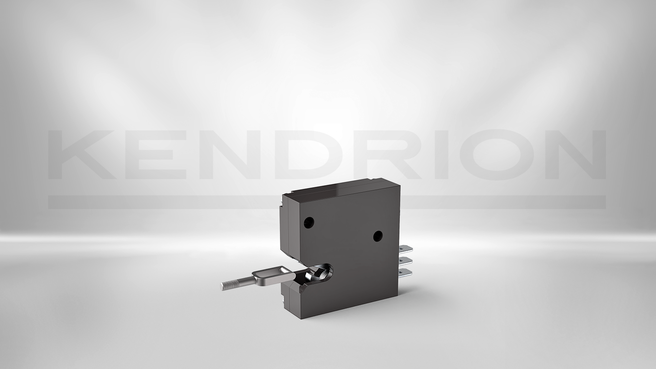

Ultra Compact Door Lock | Ultra Compact Lock | Snap in / linear | Self-locked / monostable | 1.7 | - | 0 | 5000 | - | - | - | Lever behind the lock | - | 45 x 45 x 15 mm | 10, 000 switching cycles | |
|

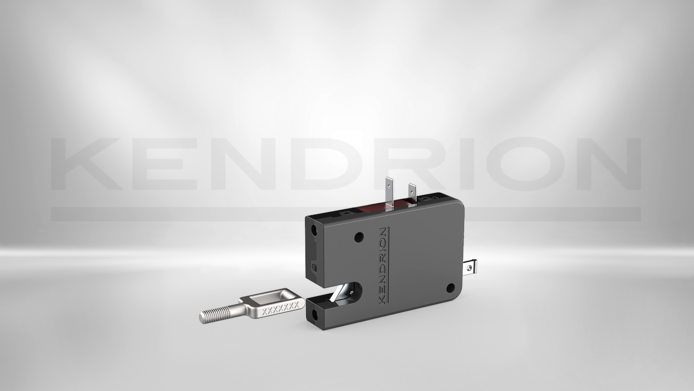

Solenoid Door Lock, Self-Locked (SL) | SL-7010-F-24V DC 2%ED | Snap in / linear | Self-locked / monostable | 24 | 2 | 36 | 1600 | 400 | Lead 18 cm | Yes | Yes | 0 - 80 °C | 70 x 70 x 18 mm | - | |
|
|

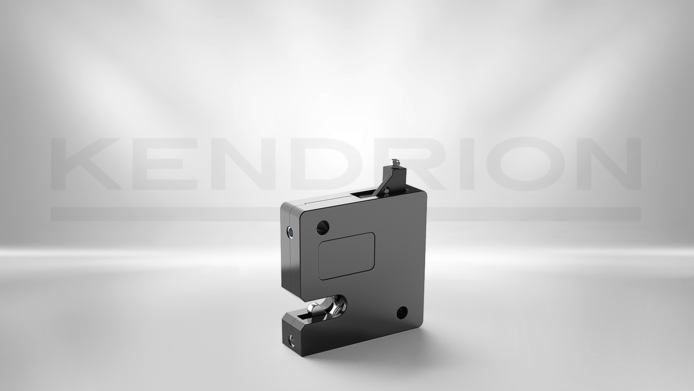

Solenoid Door Lock, Active-Locked (AL) | AL-7011-F-24V DC 10%ED | Snap in / linear | Active-locked / bistable | 24 | 10 | 36 | 1600 N | 400 | Lead 18 cm | Yes | Yes | 0 - 80 °C | 70 x 70 x 18 mm | - | |
|

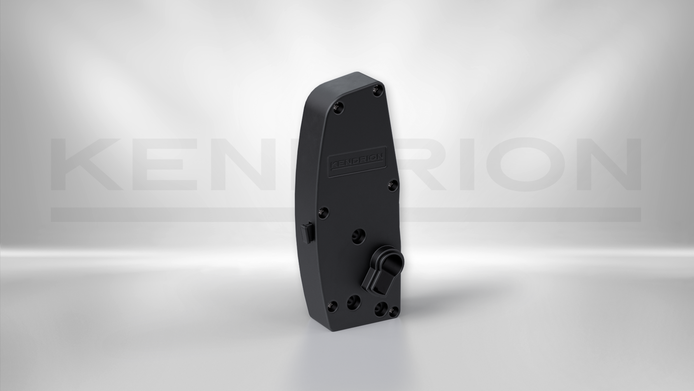

Rotary Door Lock | RL 24V DC | Rotating lock / cam lock | Active-locked / bistable | 24 | 2 | 24 | 400 | 400 | TE Connectivity VAL-U-LOK 1-2296207-0 | No | Yes | 0 - 80 °C | 174 x 70 x 32 mm | - |
