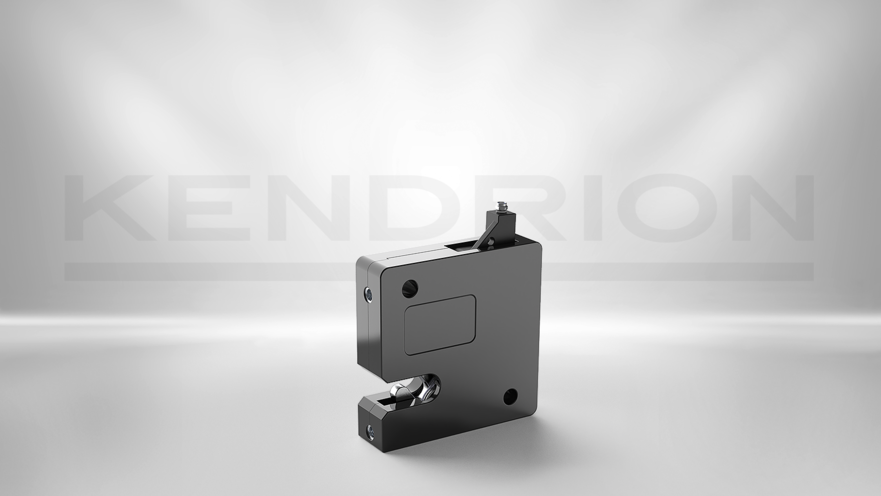

Solenoid Door Lock, Self-Locked (SL)
SL-7010-F-24V DC 2%ED
1
2
The compact solenoid lock SL convinces with a very high static holding force. The solenoid door lock integrates a high-performance linear solenoid, which has monostable design. The monostable design enables that the door can be locked every time when the solenoid is not energized. In order to unlock, the solenoid needs to be energized for a short time.
Technical details
| Description | Value |
|---|---|
| Usage of the locking | snap in / linear |
| Way of locking | self-locked / monostable |
| Nominal voltage | 24 V |
| Duty cycle | 2 % |
| Power consumption | 36 W |
| Max. static holding force | 1600 N |
| Max. load force for electrical unlocking | 400 N |
| Connection | Lead 18 cm |
| Snap-in function | Yes |
| Emergency opener | Yes |
| Operating temperature | 0 - 80 °C |
| Dimensions | 70 x 70 x 18 mm |
