Flow regulators and check valves
Check valves, throttle valves and quick exhaust valves

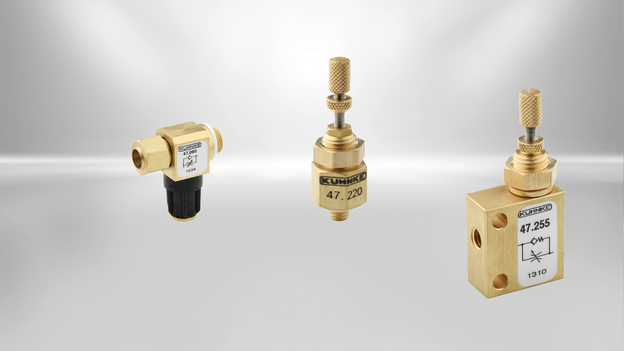

Logic valves can be used to implement pneumatic shut-off, flow and check functions in a simple way. Kendrion offers function fittings like flow regulators integrated in a tube fitting or one-way flow restrictors integrated in a banjo fitting are available with different connection options as M5 or G1/8. Customized special designs are available on request.
The Kendrion check and flow control valves were formerly known under the name Kuhnke.
Products
(24)
|
Title
|
Type
|
Pressure range (bar)
|
Nominal orifice (mm)
|
Medium
|
Type of pneumatic connection
|
Valve type
|
Ambient temperature (°C)
|
Materials
|
Identification number
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Logic Element and Unit (also dual-pressure Valve) | 47.002 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: Al, seal: NBR | - | |
|
OR Unit (also shuttle valve) | 47.003 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: Al, seal: NBR | - | |
|

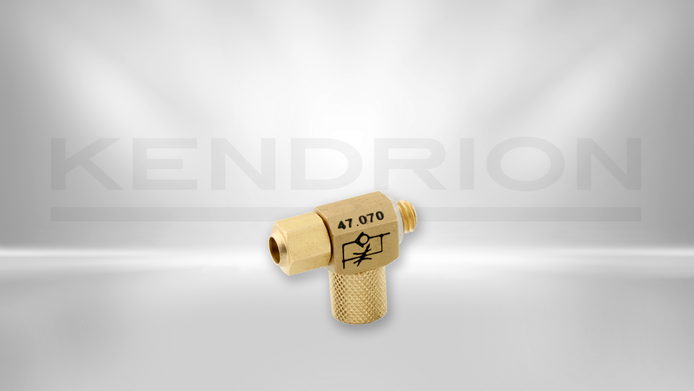

One-Way Flow Restrictor (incl. nut) | 47.070 | 0 - 12 | 2 | Neutral gases | M5, tube 5 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|
One-Way Flow Restrictor (incl. nut) | 47.071 | 0 - 12 | 2 | Neutral gases | M5, tube 5 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|

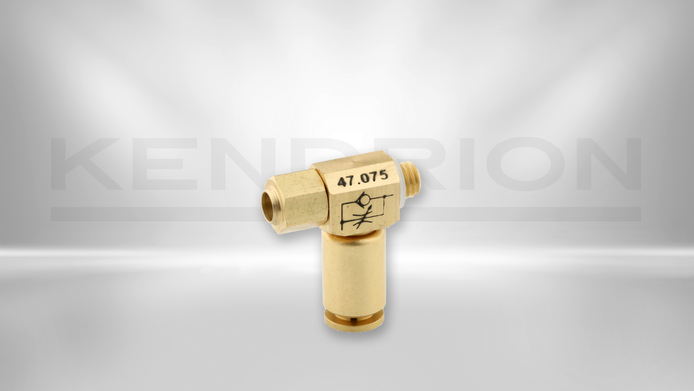

One-Way Flow Restrictor (with push-in fitting) | 47.075 | 0 - 12 | 2 | Neutral gases | M5, tube 4x1 (4 x 0.65) | Check valves and flow regulators | -10 ... +70 | - | - | |
|
One-Way Flow Restrictor (with push-in fitting) | 47.076 | 0 - 12 | 2 | Neutral gases | M5, tube 4x1 (4 x 0.65) | Check valves and flow regulators | -10 ... +70 | - | - | |
|

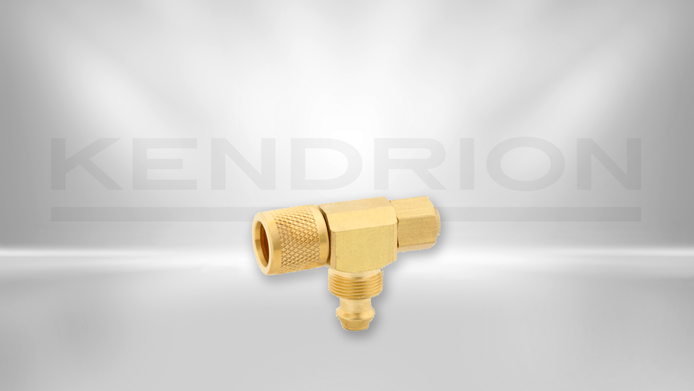

One-Way Flow Restrictor (incl. nut) | 47.080 | 0 - 12 | 2 | Neutral gases | M5, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|
One-Way Flow Restrictor (incl. nut) | 47.081 | 0 - 12 | 2 | Neutral gases | M5, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|

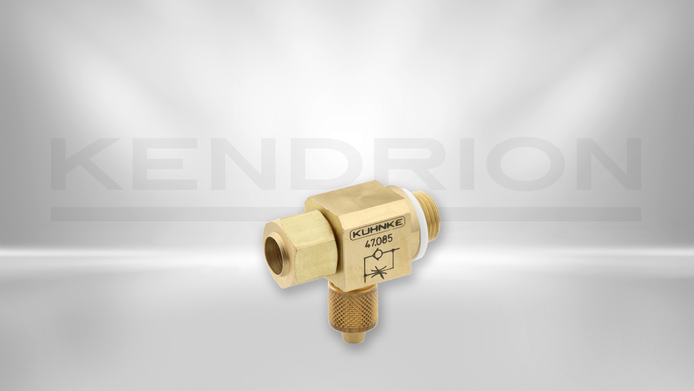

One-Way Flow Restrictor (incl. nut) | 47.085 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|
One-Way Flow Restrictor (incl. nut) | 47.086 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|

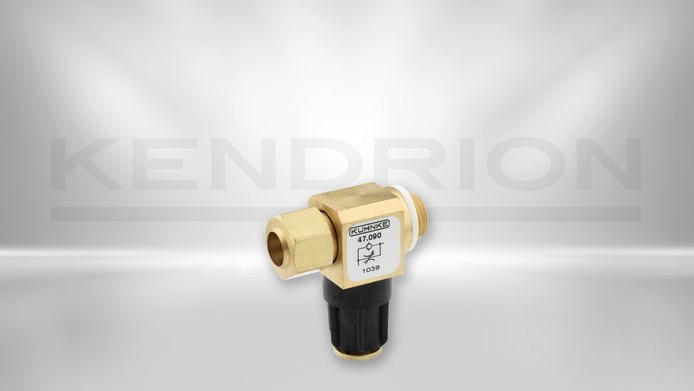

One-Way Flow Restrictor (with push-in fitting) | 47.090 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | |
|

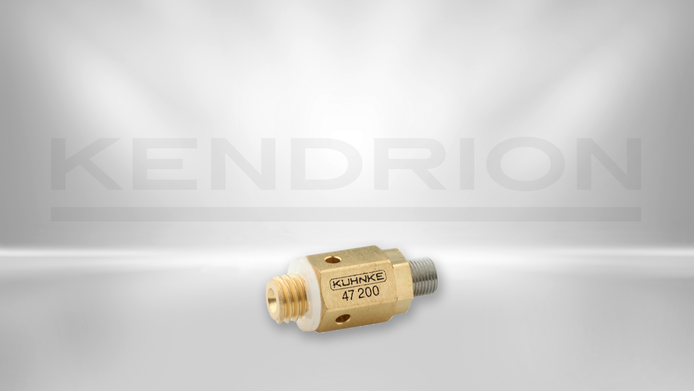

Outlet Restrictor | 47.200 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
Restrictor | 47.220 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|

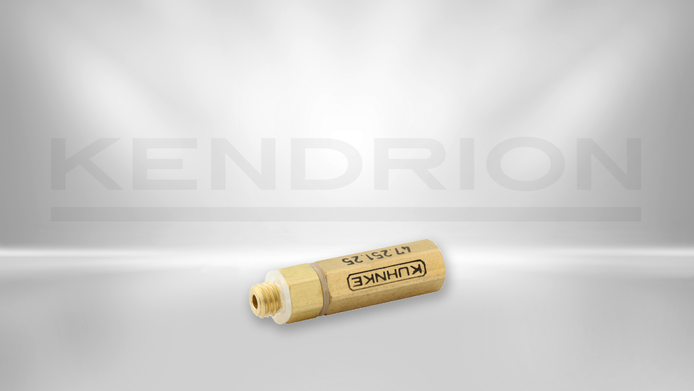

One-Way Flow Restrictor (with fixed orifice 0.07 mm) | 47.251.07 | 0.5 - 8 | 0.07 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
One-Way Flow Restrictor (with fixed orifice 0.10 mm) | 47.251.10 | 0.5 - 8 | 0.10 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
One-Way Flow Restrictor (with fixed orifice 0.16 mm) | 47.251.16 | 0.5 - 8 | 0.16 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
One-Way Flow Restrictor (with fixed orifice 0.20 mm) | 47.251.20 | 0.5 - 8 | 0.20 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
|
One-Way Flow Restrictor (with fixed orifice 0.25 mm) | 47.251.25 | 0.5 - 8 | 0.25 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
One-Way Flow Restrictor (with fixed orifice 0.40 mm) | 47.251.40 | 0.5 - 8 | 0.40 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
|
One-Way Flow Restrictor (with fixed orifice 0.60 mm) | 47.251.60 | 0.5 - 8 | 0.60 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | |
|
|
One-Way Flow Restrictor | 47.255 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - |
