Oscillating solenoids
Efficient oscillating solenoids for diverse requirements
Oscillating solenoids perform important functions in industrial plants such as loading, conveying, packing, dosing and piping. To offer an optimal solution for every requirement, Kendrion develops different versions of the drive systems with an AC or pulsed DC signal. The special manufacturing process of the oscillating solenoids ensures that the electromagnets work more efficiently and still deliver the same performance. Oscillating solenoids from Kendrion are important drive components in feeding technology for the automated and orderly provision of workpieces, but are also used in sorting and conveying technology.
Need some help? Try our new Oscillating Solenoid Product Guide.
Products
(71)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Nominal air gap (mm)
ascending
descending
|
Oscillating frequency (rpm)
ascending
descending
|
Length (mm)
ascending
descending
|
Width (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Thermal class
ascending
descending
|
Area of application
ascending
descending
|
Apparent Power (VA)
ascending
descending
|
Connection
ascending
descending
|
Load weight
ascending
descending
|
Mounting
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

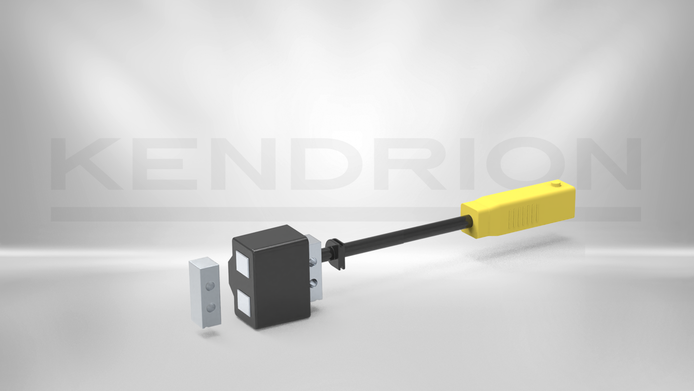

Vibratory feeder coil OAC003
|
OAC003.523053 | 230 | 2 | 6000 | 29 | 42 | 40 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 15 | - | - | - | to the product |
|

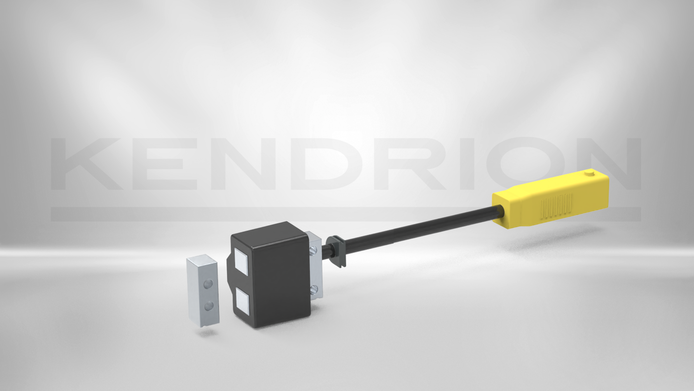

Vibratory feeder coil OAC003
|
OAC003.500055 | 230 | 1 | 6000 | 29 | 42 | 40 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 19 | - | - | - | to the product |
|
Vibratory feeder coil OAC005
|
OAC005.501601 | 230 | 1 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 60 | - | - | - | to the product |
|
Vibratory feeder coil OAC005
|
OAC005.500026 | 230 | 1 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 70 | - | - | - | to the product |
|

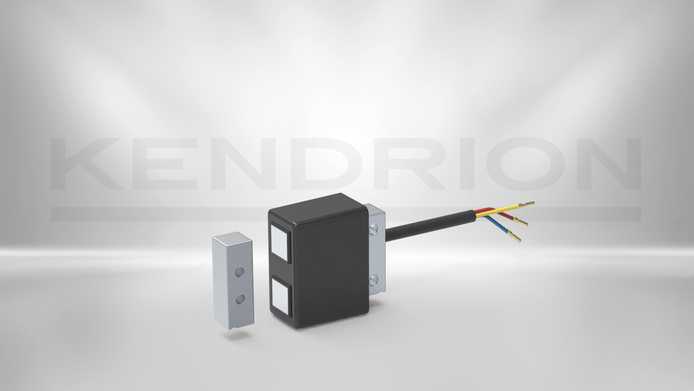

Vibratory feeder coil OAC005
|
OAC005.508201 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 92 | - | - | - | to the product |
|
Vibratory feeder coil OAC005
|
OAC005.508205 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 92 | - | - | - | to the product |
|
Vibratory feeder coil OAC005
|
OAC005.510800 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | to the product |
|
|

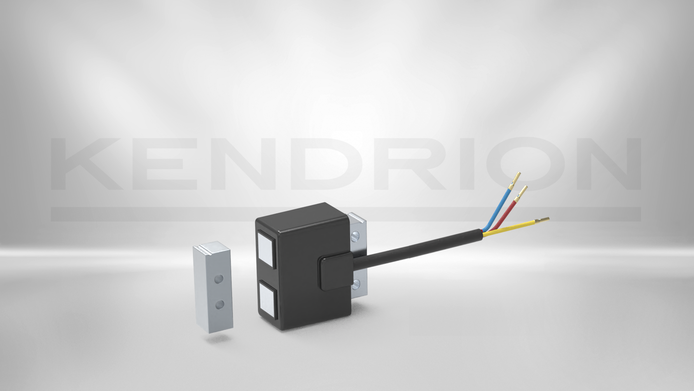

Vibratory feeder coil OAC005
|
OAC005.500038 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | to the product |
|

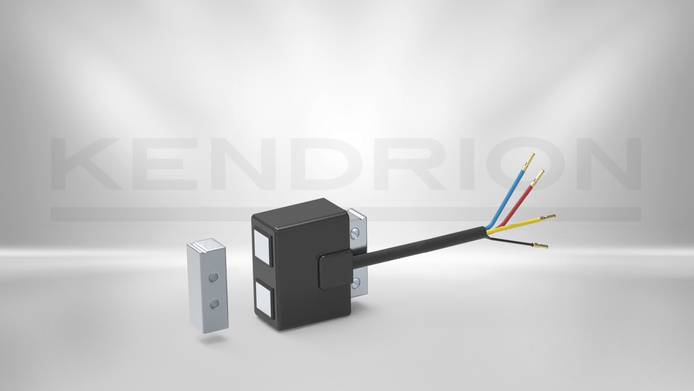

Vibratory feeder coil OAC005
|
OAC005.500039 | 230 | 0.8 | 6000-7200 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | to the product |
|

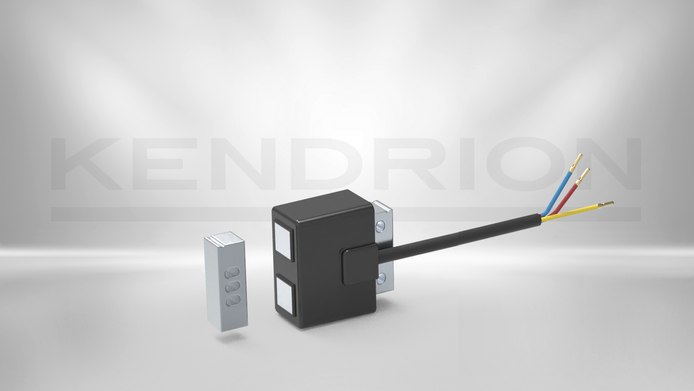

Vibratory feeder coil OAC005
|
OAC005.510841 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | to the product |
|

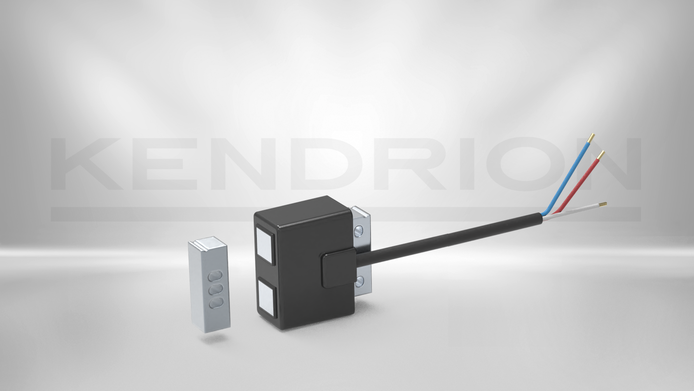

Vibratory feeder coil OAC005
|
OAC005.500065 | 230 | 1.5 | 6000 | 31 | 60.5 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 100 | - | - | - | to the product |
|

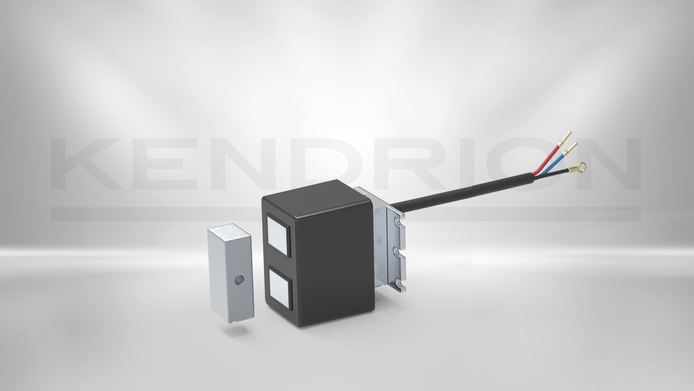

Vibratory feeder coil OAC006
|
OAC006.000300 | 230 | 2.5 | 6000 | 42 | 64 | 63 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 70 | - | - | - | to the product |
|

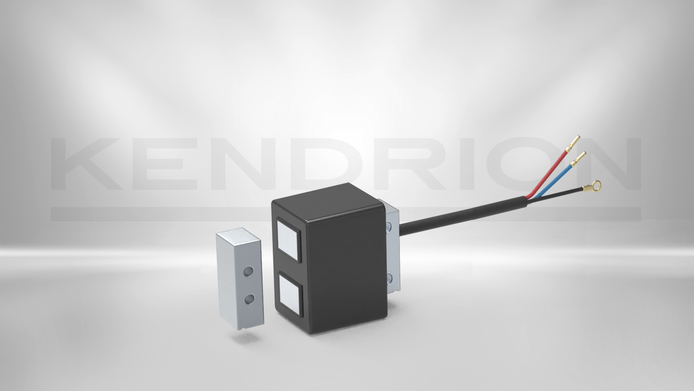

Vibratory feeder coil OAC006
|
OAC006.513021 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | to the product |
|

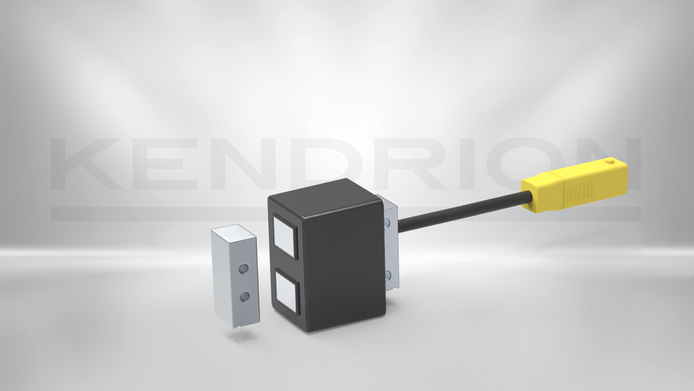

Vibratory feeder coil OAC006
|
OAC006.500060 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | to the product |
|

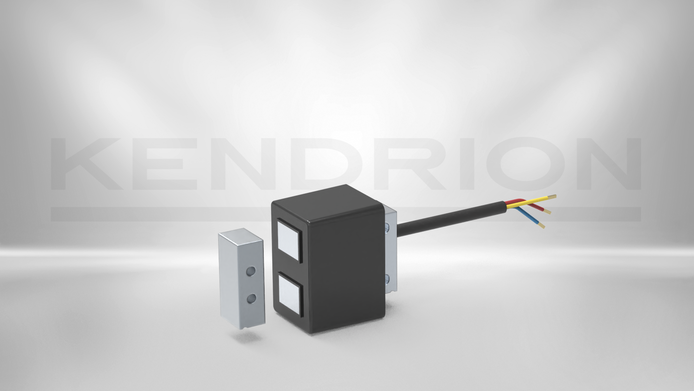

Vibratory feeder coil OAC006
|
OAC006.500170 | 230 | 2.5 | 6000 | 42 | 64 | 60 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 78 | - | - | - | to the product |
|

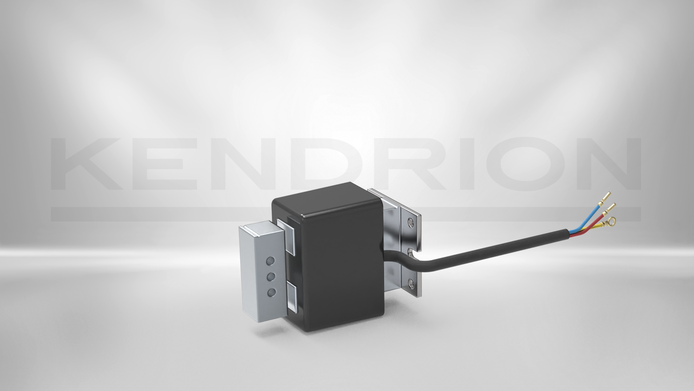

Vibratory feeder coil OAC007
|
OAC007.012301 | 230 | 3 | 6000 | 44 | 77 | 77 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 136 | - | - | - | to the product |
|

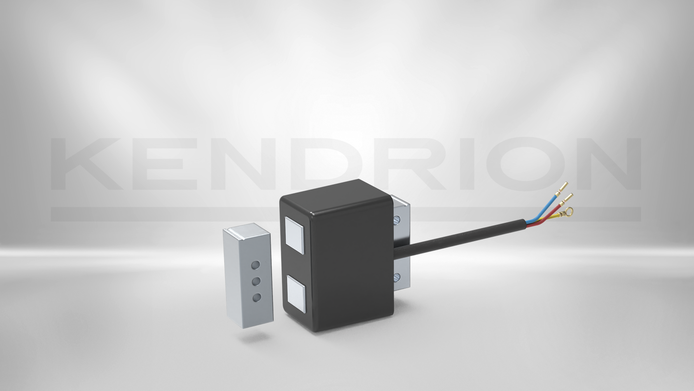

Vibratory feeder coil OAC007
|
OAC007.271501 | 230 | 3 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 136 | - | - | - | to the product |
|

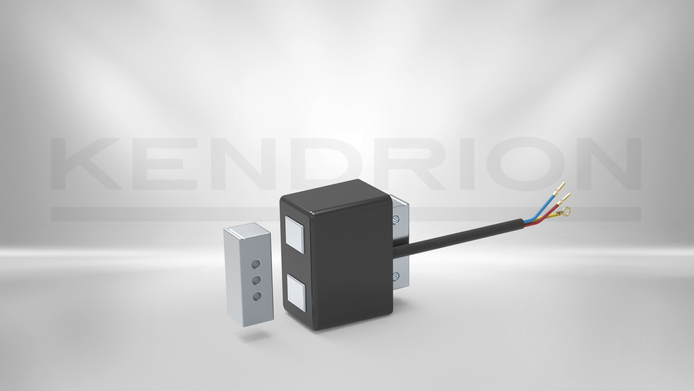

Vibratory feeder coil OAC007
|
OAC007.276201 | 230 | 3 | 3000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 162 | - | - | - | to the product |
|
Vibratory feeder coil OAC007
|
OAC007.509002 | 230 | 1 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 175 | - | - | - | to the product |
|
Vibratory feeder coil OAC007
|
OAC007.509003 | 230 | 1 | 6000 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 175 | - | - | - | to the product |
|
Vibratory feeder coil OAC007
|
OAC007.522500 | 230 | 1.2 | 6000-7200 | 44 | 77 | 74 | Y 90 | Material feeding & transport – Oscillating solenoid (OAC) | 253 | - | - | - | to the product |
