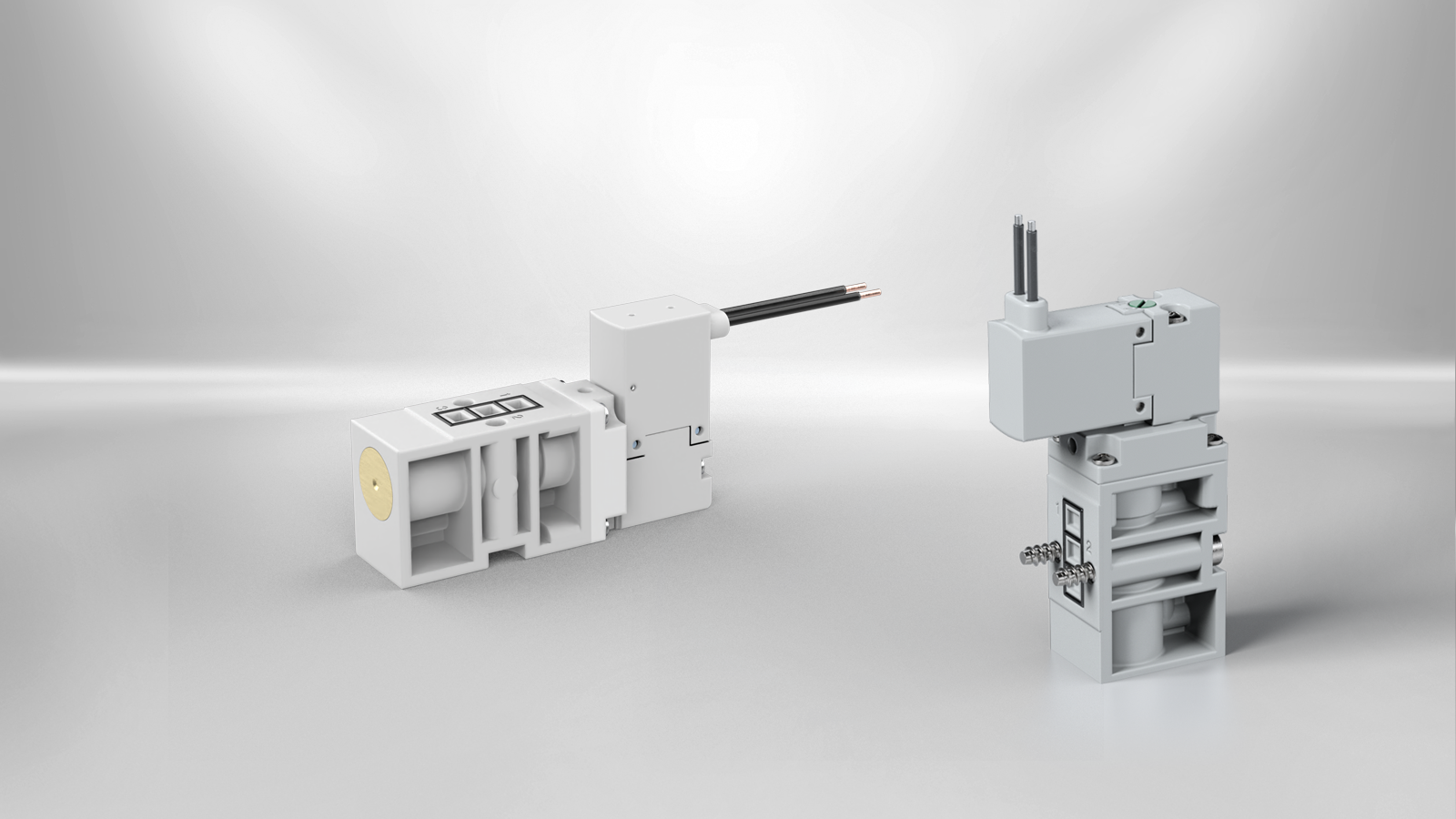

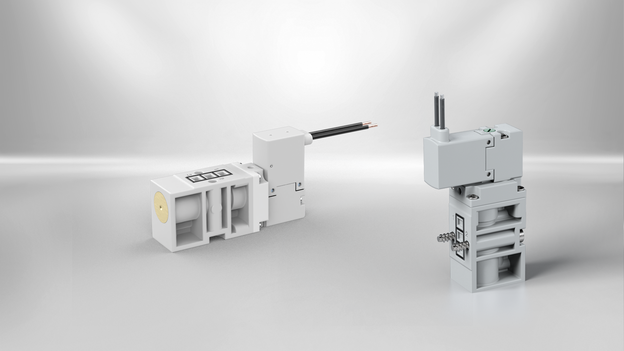

Pilot-operated solenoid valves
Solenoid valve for high flow rates at low electrical power
Pilot operated solenoid valves from Kendrion are cost effective and versatile. The solenoid valves are mainly used where high flow rates have to be switched with a low electrical power. The power consumption when regulating air flows of more than 270 l/min is just 1 W. They are a proven solution in single- and double-seat process valves for the liquid handling industry.
On request, the solenoid valves can be offered as completely equipped functional units and with customer-specific adaptations.
Pilot operated solenoid valves from Kendrion were formerly known under the name Kuhnke.
Products
(12)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Function
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Nominal orifice (mm)
ascending
descending
|
Type of electric connection
ascending
descending
|
Kv-value (l/min)
ascending
descending
|
Size (mm)
ascending
descending
|
Actuation type
ascending
descending
|
Duty cycle (% ED)
ascending
descending
|
Medium
ascending
descending
|
Nominal power (W)
ascending
descending
|
Nominal voltage (V DC)
ascending
descending
|
Nominal current (mA)
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Returning mechanism
ascending
descending
|
Protection class
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Valve type
ascending
descending
|
Materials
ascending
descending
|
Actuation
ascending
descending
|
Manual override
ascending
descending
|
Identification number
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

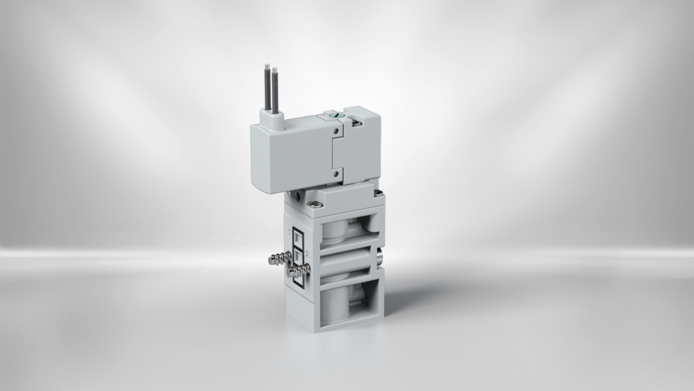

Solenoid valves, pilot operated Type 63.1V
|
63.150.50V 12VDC | 3/2-way NC | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.161.50 12VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.153.50V 12VDC | 3/2-way NO | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.150.50V 24VDC | 3/2-way NC | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.153.50V 24VDC | 3/2-way NO | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.160.50V 12VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.163.50V 12VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.164.50 12VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.160.50V 24VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.161.50 24VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.163.50V 24VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
|
Solenoid valves, pilot operated Type 63.1V
|
63.164.50 24VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
