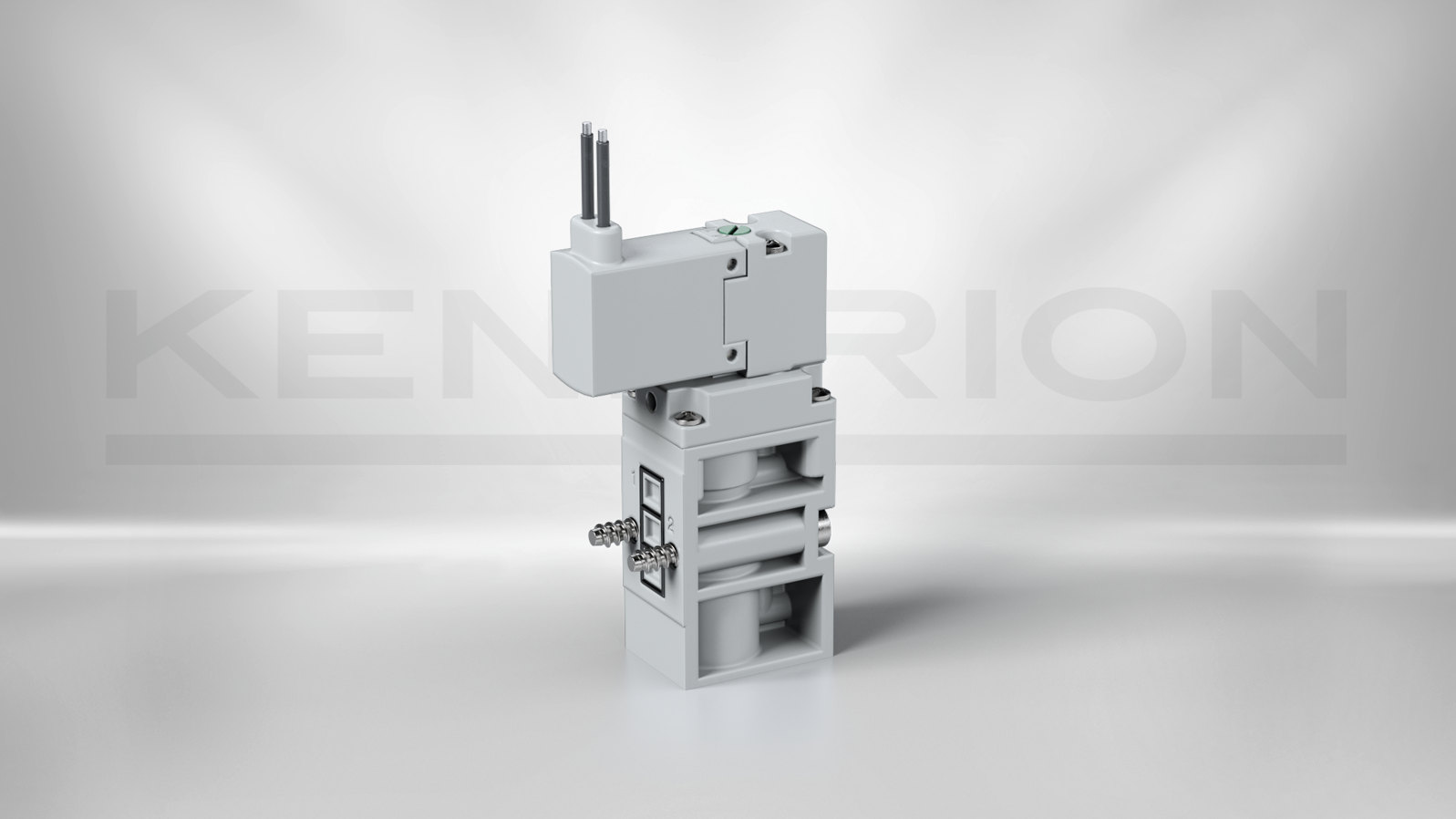

Solenoid valves, pilot operated Type 63.1V
63.153.50V 24VDC
15 mm width, different electrical connection possibilities. Manual override optional, offered as rotary knob to be adjusted via flat-tip screwdriver or as "paddle" for the use without additional tools
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NO |
| Pressure range | 2-8 bar |
| Nominal orifice | 2.6 mm |
| Type of electric connection | Plug without diode |
| Kv-value | 3.2 l/min |
| Size | 15 mm |
| Actuation type | elektrisch betätigt |
| Duty cycle | 100 % ED |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 1.0 W |
| Nominal voltage | 24 V DC |
| Nominal current | 42 mA |
| Type of pneumatic connection | Flange |
| Returning mechanism | Spring |
| Protection class | IP51 |
| Ambient temperature | -20... +60 °C |
| Valve type | Poppet valve |
| Materials | Housing PBT, Seal NBR |
| Actuation | pilot controlled |
| Manual override | Usable with flat-tip screwdriver |
