CIO CANopen
8DI/10DO/4AI-I/2AI-U/2AO-I/3AO-U/5Pt/2Thermo
611 220 87

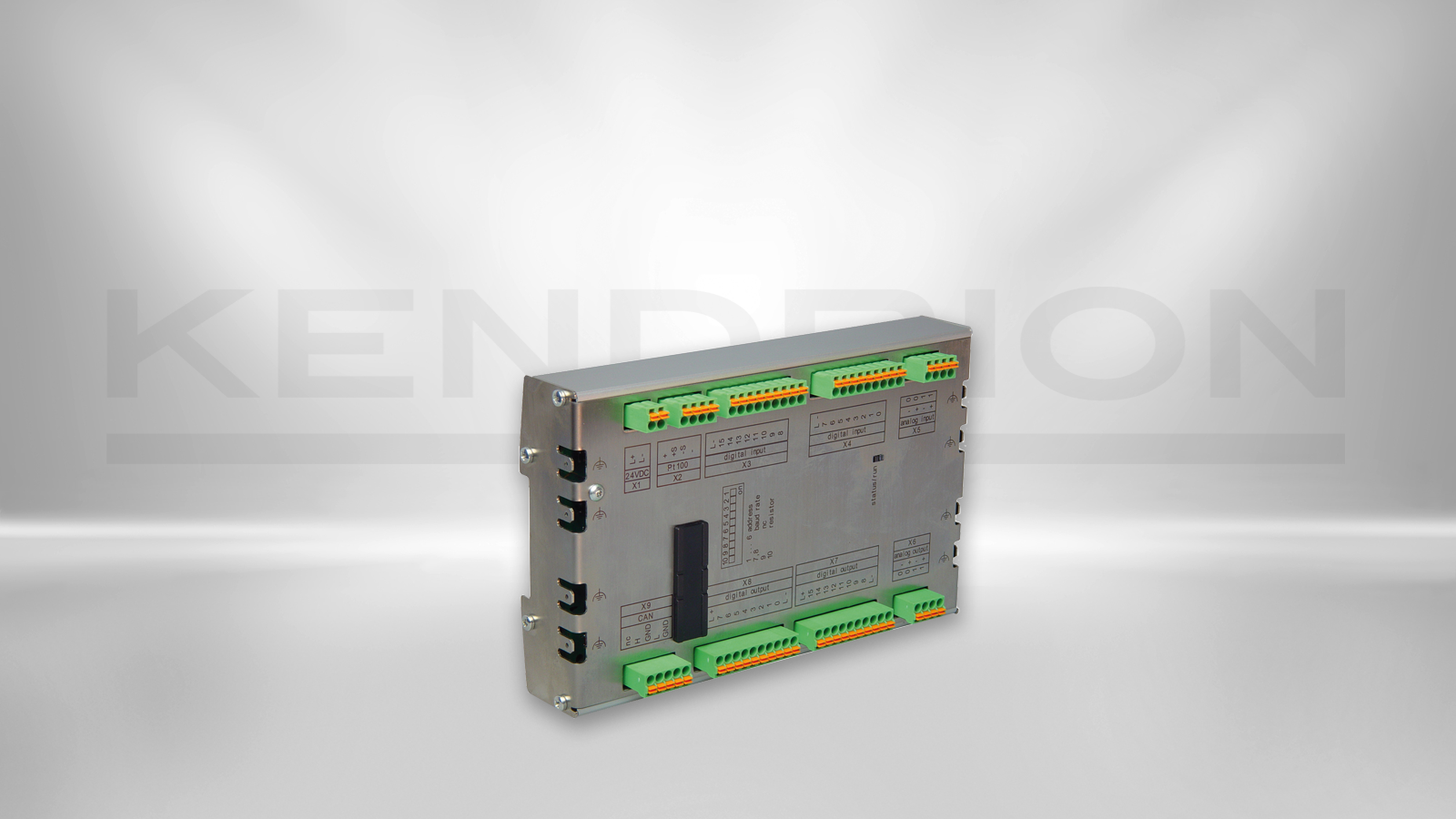

The Kuhnke CIO compact I / O with CANopen fieldbus interface contains various digital and analog input and output signals in a compact housing for the DIN rail. The robust design allows the use in machine and apparatus construction.
- Compact control cabinet module
- Integrated I/Os: 8DI/10DO/4AI-I/2AI-U/2AO-I/3AO-U/5Pt/2Thermo
- CANopen fieldbus interface
Technical details
| Description | Value |
|---|---|
| Configuration | 8DI/10DO/4AI-I/2AI-U/2AO-I/3AO-U/5Pt/2Thermo |
| Function | I/O system with CANopen field bus |
| Model | Control cabinet modul |
| Product status | Standard product |
| Field bus interfaces | CANopen |
| Interfaces | CANopen |
| Digital I/Os (integrated) | 8 DI 5 ms, 10 DO 0,5A |
| Analogue I/Os (integrated) | 4AI-I, 4AI-U, 2AO-I, 3AO-U, 5Pt100, 2Thermo |
| Type of connection | multi-pin plug connector |
| Status indication | system messages |
| Housing material | plastic tray with stainless steel cover |
| Dimensions (W x H x D) | 170 mm x 115 mm x 48 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V (-20% / +25%) |
| Operating temperature | 0 ... +55 °C |
