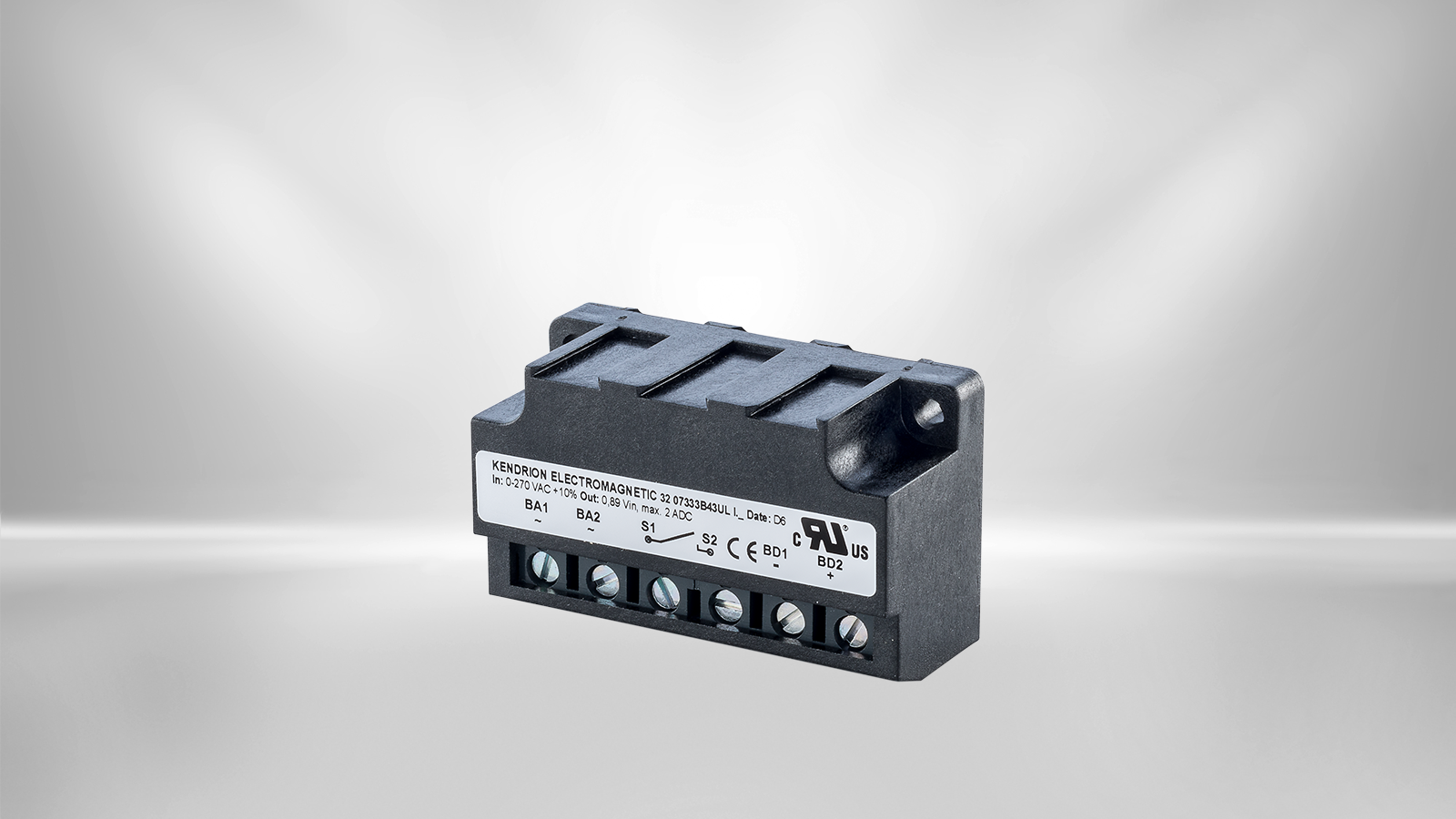

Overexcitation Rectifier - Universal Collection
32 17321B00
These rectifiers with time controlled bridge/half-wave changeover are ideal for installation in the connection boxes of brake motors, brakes and solenoids with high dynamic requirements. Accessories include flying leads and mounting hardware so that installation on DIN rails is also possible. Encapsulated versions for an extended operating temperature range are available as options. In case of additional DC side fast disconnection, the induction voltage induced by inductive loads is internally limited.
Features
- Energy savings up to 75%
- All rectifier and switching types can be combined in a single housing
- Variety of mounting & connection options
- Universal use with all brakes up to size 16, depending on power consumption
- Drives with high cycle rates
- Ideal for brakes with long maintenance intervals and low intrinsic heating
- Separate use with brakes and magnets
Technical details
| Description | Value |
|---|---|
| Rectifier type | Overexcitation Rectifier |
| Input voltage range | 220 bis 500 V |
| Max. current | 3,0/1,5 A |
| Quick shut down | yes over external contact |
| Overexcitation time | 0,25 s |
| Temperature range | -20…80°C |
| Connector type | Screw Terminal + Brainds |
| Certification | - |
| Output voltage | Uin x 0,89 / 0,45 V |
