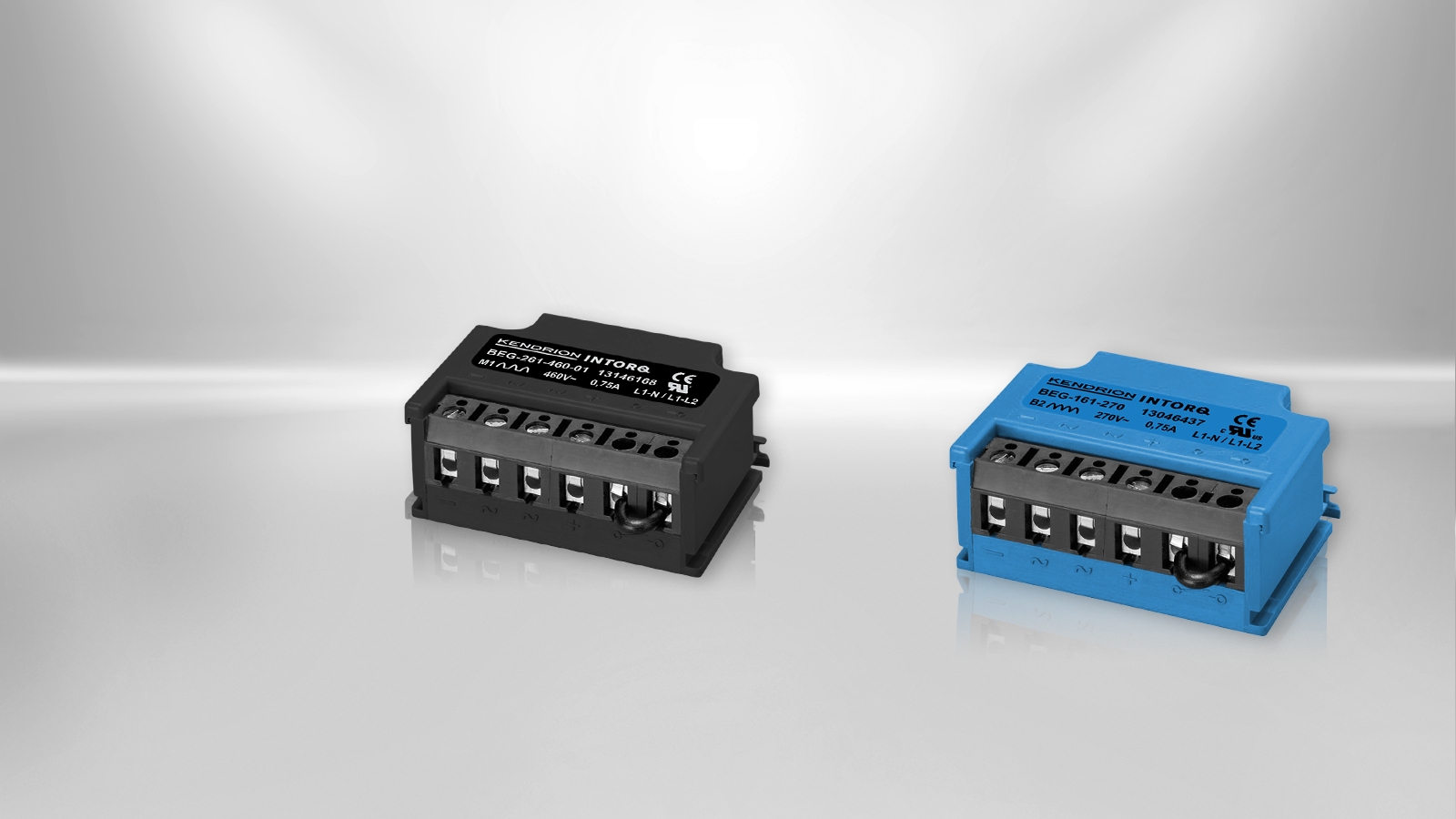

Electronic modules for brakes
The product range of Kendrion contains a variety of electronic components for the control of electromagnetic actuators such as brakes and clutches. A variety of the properties of actuators can be considerably improved using control modules. Reaction times are significantly optimised by overexcitation functions and fast shutdown.
Lowering of the holding voltage improves the thermal behaviour of the actuator and saves energy. There are suitable electronic modules available for different classes of actuators. Depending on the mounting conditions, there are a variety of connection concepts.
Kendrion as a result provides the optimum complementary control electronics for electromagnetic brakes and clutches for all applications.
Products
(46)
|
Title
|
Type
|
Rectifier type
|
Input voltage range (V)
|
Max. current (A)
|
Quick shut down
|
Overexcitation time (s)
|
Temperature range
|
Connector type
|
Certification
|
Output voltage (V)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

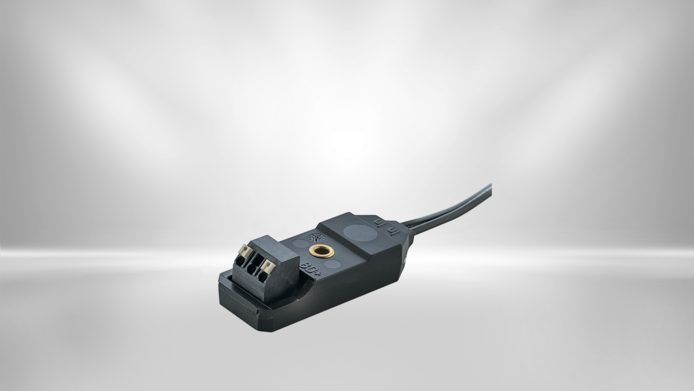

Overexcitation Rectifier - Slim Collection | 32 77101B53 | Overexcitation Rectifier | 100 bis 240 | 2, 0/1, 0 | yes | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Slim Collection | 32 17101B53 | Overexcitation Rectifier | 100 bis 240 | 2, 0/1, 0 | no | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Slim Collection | 32 77101B50 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Slim Collection | 32 17101B50 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | no | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | |
|
|
Bridge Rectifier - Slim Collection | 32 07103B53 | Bridge Rectifier | 0 bis 240 | 0, 8 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | |
|
|
Bridge Rectifier - Slim Collection | 32 67103B53 | Bridge Rectifier | 100 bis 240 | 0, 8 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | |
|
|
Bridge Rectifier - Slim Collection | 32 07103B50 | Bridge Rectifier | 0 bis 500 | 0, 7 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | |
|
|
Bridge Rectifier - Slim Collection | 32 67103B50 | Bridge Rectifier | 220 bis 500 | 0, 7 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | |
|
|
Half-Wave Rectifier - Slim Collection | 32 07102B53 | Half-Wave-Rectifier | 0 bis 240 | 0, 5 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 45 | |
|
|
Half-Wave Rectifier - Slim Collection | 32 07102B50 | Half-Wave-Rectifier | 0 bis 500 | 0, 5 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 45 | |
|
|
PWM-Module - Slim Collection | 34 10125C01 | PWM Module | 24 bis 48 | 4, 0/2, 0 | no | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 16, 8 VDC | |
|
|
PWM-Module - Slim Collection | 34 70125C01 | PWM Module | 24 bis 48 | 4, 0/2, 0 | yes | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 16, 8 VDC | |
|
|
PWM-Module - Slim Collection | 34 10125C02 | PWM Module | 24 bis 48 | 4, 0/2, 0 | no | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 12 VDC | |
|
|
PWM-Module - Slim Collection | 34 70125C02 | PWM Module | 24 bis 48 | 4, 0/2, 0 | yes | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 12 VDC | |
|

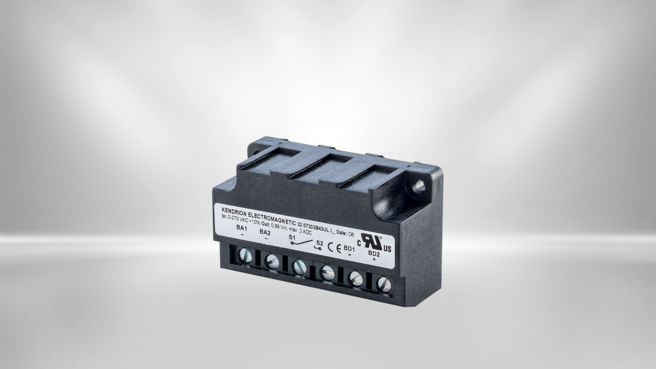

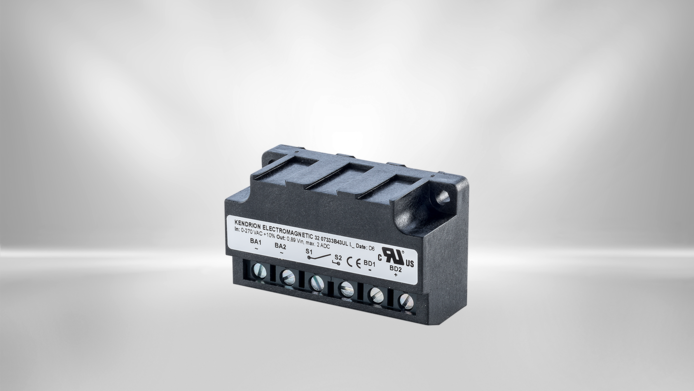

Overexcitation Rectifier - Universal Collection | 32 17320B00 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 17320B03 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 17320B13 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 0, 5 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 17320B23 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 1, 1 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 17321B00 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal + Brainds | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 17321B00 | Overexcitation Rectifier | 220 bis 500 | 3, 0/1, 5 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal + Brainds | - | Uin x 0, 89 / 0, 45 | |
|
|
Half-Wave Rectifier - Universal Collection | 32 07322B40 | Half-Wave-Rectifier | 0 bis 500 | 2 | yes over external contact | - | -20…80°C | Screw Terminal | - | Uin x 0, 45 |
