PWM-Module - Slim Collection
34 70125C02

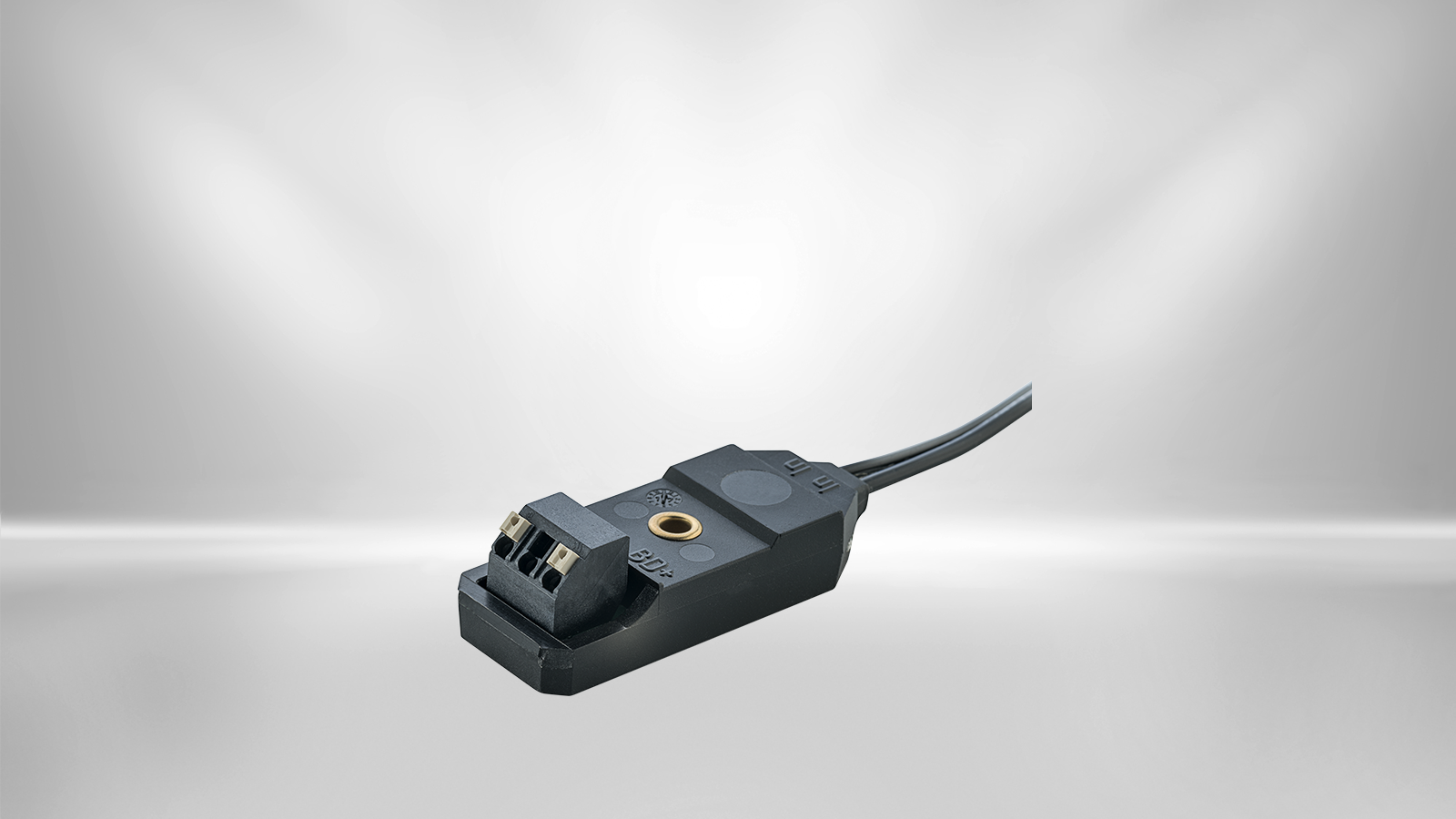

Thanks to its extremely compact design, the overexcitation rectifier can be installed in very restricted space. The module features a central bore for screw fixing inside the terminal box. The Slim Collection DC operates as a time-controlled PWM amplifier (pulse width modulation).
Features
- Very small design
- Cost-effective
- Versatile options for assembly and connection through central hole
- Overexcitation function
- Integrated fast shutdown
- Energy savings up to 75%
- Customised holding voltage possible
- Dimensions (LxWxH): 60x24x19 mm
Technical details
| Description | Value |
|---|---|
| Rectifier type | PWM Module |
| Input voltage range | 24 bis 48 V |
| Max. current | 4,0/2,0 A |
| Quick shut down | yes |
| Overexcitation time | 0,2 s |
| Temperature range | -20…80°C |
| Connector type | Spring Clamp |
| Certification | UL (ab Q2/2022) |
| Output voltage | 12 VDC V |
