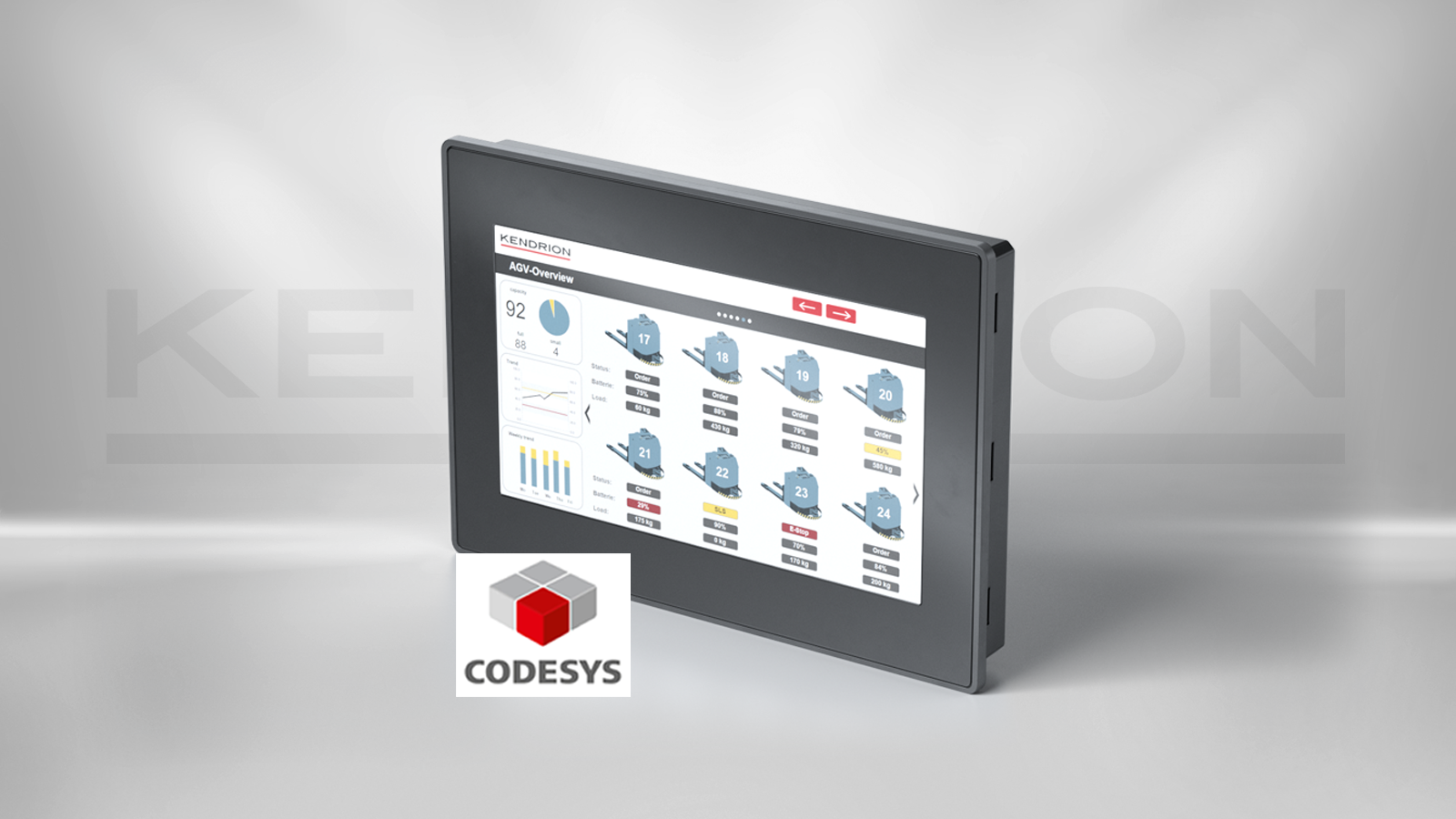

Kuhnke Vico 1004
CODESYS HMI
67780020
The Kuhnke Vico 04 series is a powerful indicator with an industrial design for the realisation of modern operating concepts. The installed CODESYS HMI software package offers the possibility to visualise data from one or more CDESYS controllers on a remote Kuhnke Vico 04. The visualisation is developed either independently or together with the PLC application in the free CODESYS Development System.
The Kuhnke Vico 04 series is based on a powerful ARM Cortex-A8 processor combined with a resistive touch display. All components are robust and have long-term availability.
-
widescreen display with LED backlight
-
ARM Cortex-A8 processor technology with graphics acceleration
-
Industrial construction
-
Visualisation with CODESYS Development System
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS HMI |
| Function | Touch Panel, CODESYS V3 HMI |
| Model | Panel front Built-in unit |
| Product status | Standard product |
| Display | 10.1" wide |
| Resolution | 1024 x 600, WSVGA |
| Processor | ARM Cortex-A8 - 1 Ghz |
| Operating system | Linux |
| Software | CODESYS Development System |
| Number of tags | Unlimited |
| Interfaces | 1 x LAN, 1 x USB, 1 x RS-232/485/422 |
| Housing material | Plastic with inlay foil |
| Data memory | Flash disk 4 GB |
| Dimensions (W x H x D) | 282 x 197 x 35 mm |
| IP-Protection Class | IP 66 / IP 20 |
| Status indication | - |
| Supply voltage | 24 VDC / (10 VDC … 32 VDC) |
| Temperature range | 0 ... +55°C |
