High Power Linear Solenoid LHP035
44030018

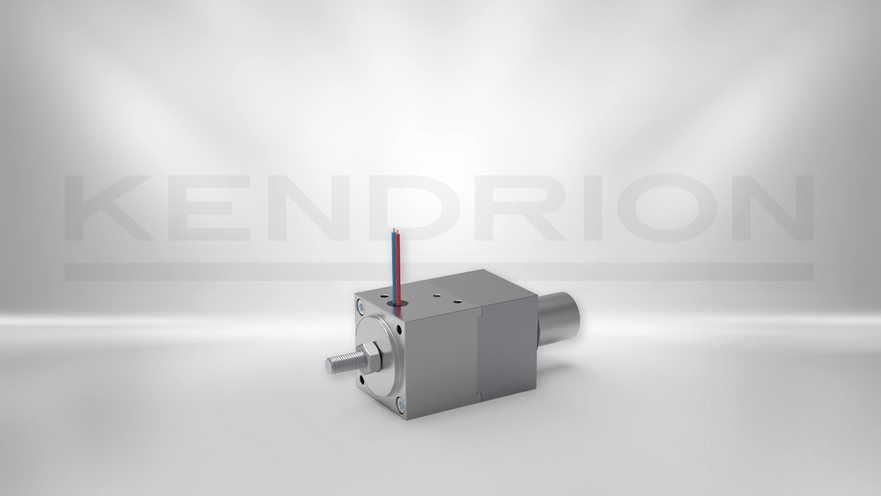

The LHP035 is a square linear solenoid in a robust steel housing, which can be actuated either by pushing or by pulling. The solenoid convinces in various applications with smallest space requirement at high forces. The LHP035 series can be configured with different duty cycles (5, 25, 40 and 100% ED) and different stroke variants (5, 10, 15, 20 mm) depending on the application. The plug (= IP40), sealing ring and bellows (=IP54) ensure an increased degree of protection. Resetting can be performed by means of an optional integrated spring. Special voltage variants of the solenoid are also available on request. Due to its square design, particularly high forces and simple mounting characterize the high-performance linear solenoid. In addition, the strong solenoid convinces with short switching times and a long service life of up to 10 million switching cycles. The configuration options of the LHP035 are versatile.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 23.78 W |
| Stroke | 10 mm |
| Inital force | 12.4 N |
| Nominal voltage | 24 V |
| End force | 65 N |
| Return spring | No |
| Dimensions (length, width, height) | 60 x 35 x 35 mm |
| Length | 60 |
| Width | 35 |
| Height | 35 |
| Design | No |
| Protection class | IP 40 |
| Thermal class | F 155 |
| Connection | Leads / cable |
| Solenoid weight | 450 g |
| Armature weight | 110 g |
| Product Line | High Power Linear Solenoids |
