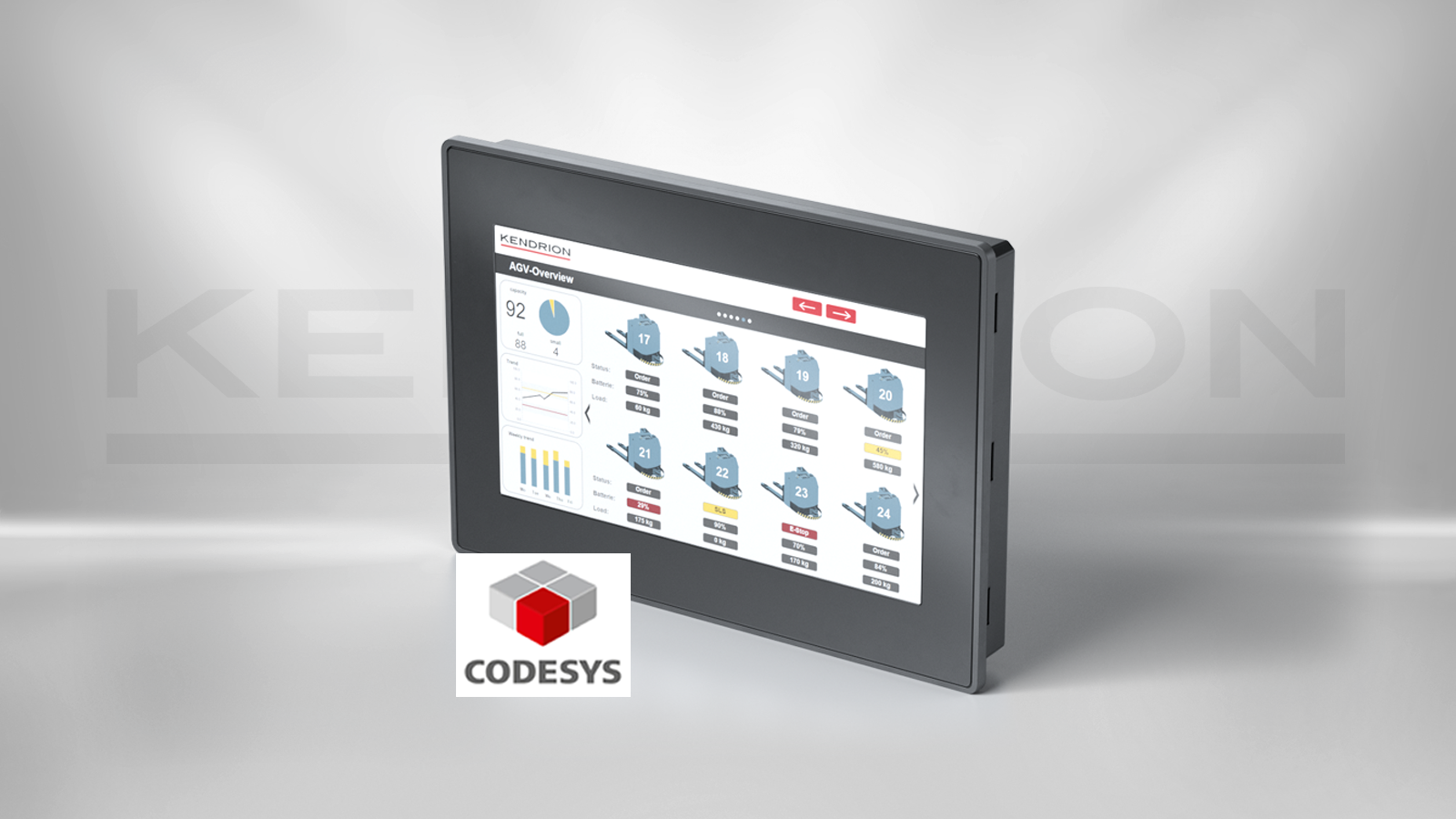

Kuhnke Vico 1004
CODESYS PLC
677 800 26
The new Kuhnke Vico 04 series is a powerful display unit with an industrial design and enables modern operating concepts. The installed CODESYS PLC software package offers the possibility to use control functions in addition to visualisation. The visualisation is developed together with the PLC application in the free CODESYS Development System. The device communicates with the external fieldbus components via EtherCAT, OPC UA and Modbus.
The Kuhnke Vico 04 series is based on a powerful ARM Cortex-A8 processor combined with a resistive touch display. All components are robust and have long-term availability.
- widescreen display with LED backlight
- Industrial construction
- Visualisation and Control with CODESYS V3
- Programming via WLAN prepared
Technical details
| Description | Value |
|---|---|
| Configuration | Control panel with CODESYS PLC |
| Function | HMI with control function |
| Model | Panel mounted device |
| Product status | Standard product |
| Display | 10.1" wide |
| Resolution | 1024x600, (WSVGA) |
| Processor | ARM Cortex-A8 - 1 GHz |
| Operating system | Linux |
| Software | CODESYS V3 Soft PLC, TargetVisu, WebVisu |
| Main memory | 512 |
| Non-volatile memory | Flash |
| Data memory | Flash |
| Drive | Flash disc 4 GB |
| Interfaces | 1 x Ethernet 10/100Mbit, 1 x RS-232, 1 x USB 2.0 host, max 500 mA |
| Field bus interfaces | Modbus RTU, Modbus TCP, EtherCAT, OPC UA |
| Housing material | plastic body with black, seamless film cover |
| Dimensions (W x H x D) | 282 x 197 x 35 mm |
| Supply voltage | 24 VDC / (10 VDC … 32 VDC) |
| Temperature range | 0 ... +50°C |
| Certifications | CE, cULus |
