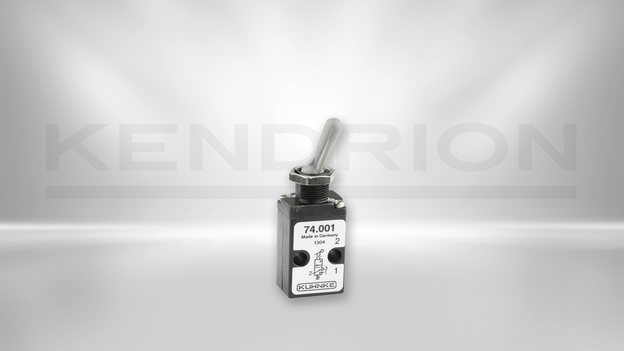

Mechanically Actuated Valve Type 74
74.001
This poppet valve has exclusively been designed to be used in control units. Because of its hexagonal shape, it requires only a minimum of space. There are different actuating modes (plunger, pushbutton, toggle lever, two way / one way lever with or without control panel actuators).
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NC |
| Pressure range | 0 - 12 bar |
| Nominal orifice | 2 mm |
| Kv-value | 1.3 l/min |
| Actuation type | mechanically actuated, toggle lever |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Type of pneumatic connection | M5 |
| Returning mechanism | Spring |
| Ambient temperature | -10 ... +60 °C |
| Valve type | Poppet valve |
| Materials | Housing: zinc, seal: NBR |
| Actuation | directly controlled |
| Identification number | 52931 |
