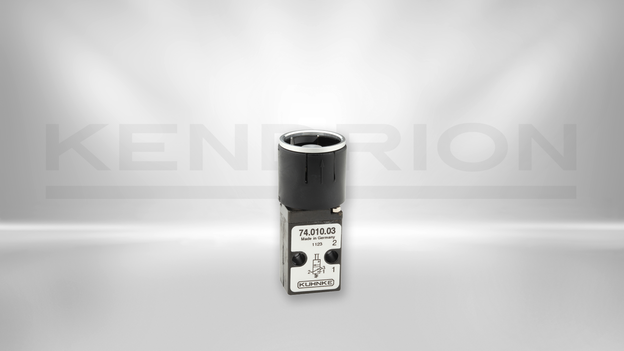

Mechanically Actuated Valve Type 74
74.010.03
This poppet valve has exclusively been designed to be used in control units. Because of its hexagonal shape, it requires only a minimum of space. There are different actuating modes (plunger, pushbutton, toggle lever, two way / one way lever with or without control panel actuators).
Technical details
Description | Value |
---|---|
Function | 3/2-way NC |
Pressure range | 0 - 12 bar |
Nominal orifice | 2 mm |
Kv-value | 1.3 l/min |
Actuation type | mechanically actuated, preparation for actuators |
Medium | Filtered (5 µm), lubricated and non lubricated air |
Type of pneumatic connection | M5 |
Returning mechanism | Spring |
Ambient temperature | -10 ... +60 °C |
Valve type | Poppet valve |
Materials | Housing: zinc, seal: NBR |
Actuation | directly controlled |
Identification number | 96088 |
