Rod grippers
Compact rod grippers with high holding forces
Kendrion offers permanent magnetic rod grippers in various sizes, materials and designs. They are made of AlNiCo, NdFeB and SmCo with housings of brass or steel. The rod grippers feature a high holding force with compact size and are used in many applications of different fields.
Special designs for different requirements can be realized on request.
Products
(91)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Thread
ascending
descending
|
Housing
ascending
descending
|
Shortened to (mm)
ascending
descending
|
Fitting Tolerance
ascending
descending
|
Measure "D" (mm)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rod gripper NdFeB
|
550 4027 50 | with internal thread | NdFeB | 1000 | 60 | 900 | 80 | M10 x 12 | steel | - | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4027 63 | with internal thread | NdFeB | 1700 | 65 | 1560 | 80 | M12 x 14 | steel | - | - | - | - | to the product |
|

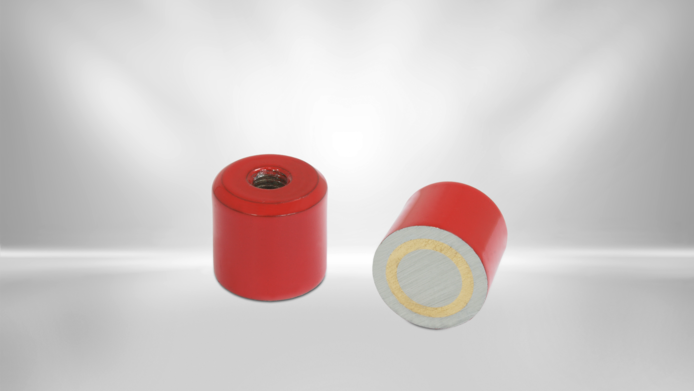

Rod gripper Alnico
|
550 4031 12 | with internal thread | AlNiCo | 20 | 16 | 15 | 220 | M4 x 7 | steel | - | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4031 17 | with internal thread | AlNiCo | 26 | 16 | 29 | 220 | M6 x 5 | steel | - | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4031 21 | with internal thread | AlNiCo | 40 | 19 | 50 | 220 | M6 x 7 | steel | - | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4031 27 | with internal thread | AlNiCo | 65 | 25 | 98 | 220 | M6 x 9 | steel | - | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4031 35 | with internal thread | AlNiCo | 150 | 30 | 205 | 220 | M6 x 9 | steel | - | - | - | - | to the product |
