Welcome to the KENDRION Rotary Solenoid ProductFinder!

Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of monostable and bistable rotary solenoids. Use our filter and narrow the search to fit your application.

Monostable or bistable design
Angle of rotation
Initial or final torque
Type of reset (spring or electrical)

Want to learn more about how Kendrion rotary solenoids work and their applications?

Visit our rotary solenoids website

Find the right product now!

+49 (0) 4523 402-0

sales-ics@kendrion.com

Contact now

Design	monostable
Rotation angle	45°
Inital torque	0.18 Ncm
End torque	0.44 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	0.06 Ncm
End torque	0.35 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	0.18 Ncm
End torque	1.2 Ncm

Go to product

Design	monostable
Rotation angle	45°
Inital torque	0.65 Ncm
End torque	1.6 Ncm

Go to product

Design	monostable
Rotation angle	45°
Inital torque	3.6 Ncm
End torque	9.3 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	0.8 Ncm
End torque	7.2 Ncm

Go to product

Design	monostable
Rotation angle	45°
Inital torque	6 Ncm
End torque	20 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	1.3 Ncm
End torque	15 Ncm

Go to product

Design	monostable
Rotation angle	45°
Inital torque	23 Ncm
End torque	40 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	6.2 Ncm
End torque	26 Ncm

Go to product

Design	monostable
Rotation angle	95°
Inital torque	1.8 Ncm
End torque	12.7 Ncm

Go to product

Design	bistable
Rotation angle	90°
Inital torque	1.2 Ncm
End torque	3.5 Ncm

Go to product

Design	bistable
Rotation angle	90°
Inital torque	1.2 Ncm
End torque	3.5 Ncm

Go to product

Design	bistable
Rotation angle	60°
Inital torque	1.5 Ncm
End torque	3.0 Ncm

Go to product

Design	bistable
Rotation angle	90°
Inital torque	1.2 Ncm
End torque	3.5 Ncm

Go to product

Design	bistable
Rotation angle	45°
Inital torque	1.7 Ncm
End torque	2.8 Ncm

Go to product

Design	monostable
Rotation angle	30°
Return mechanism	Electrical
Duty cycle	10 %

Go to product

Design	bistable
Rotation angle	30°
Return mechanism	Electrical
Duty cycle	10 %

Go to product

Design	bistable
Rotation angle	90°
Return mechanism	Electrical
Duty cycle	100 %

Go to product

Title ascending descending	Type ascending descending	Design ascending descending	Rotation angle ascending descending	Inital torque (Ncm) ascending descending	End torque (Ncm) ascending descending	Return mechanism ascending descending	Housing type ascending descending	Nominal voltage (V) ascending descending	Duty cycle (%) ascending descending	Power consumption (W) ascending descending	Thermal class ascending descending	Connection ascending descending	Dimensions ascending descending	Solenoid weight (g) ascending descending	Details

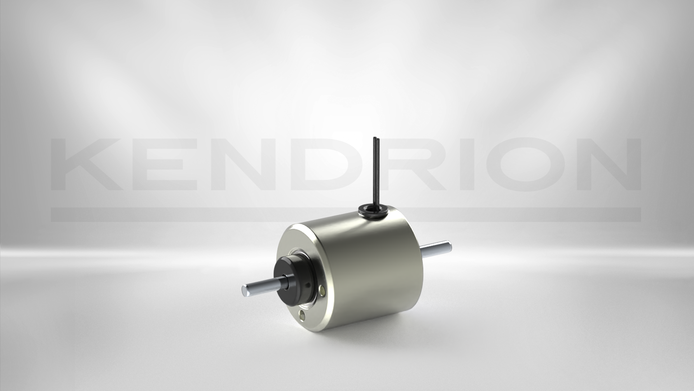

Rotary Solenoid Type D 2	D 24-BOR-F-DS9420-24 VDC 100 ED	monostable	45°	0.18	0.44	Spring return	round	24	100	3.8	B 130 °C	Leads 20 cm	Diameter 25 / Length 25 mm	75	to the product
Rotary Solenoid Type D 2	D 29-BOR-F-DS9420-24V DC 100 ED	monostable	95°	0.06	0.35	Spring return	round	24	100	3.8	B 130 °C	Leads 20 cm	Diameter 25 / Length 25 mm	75	to the product

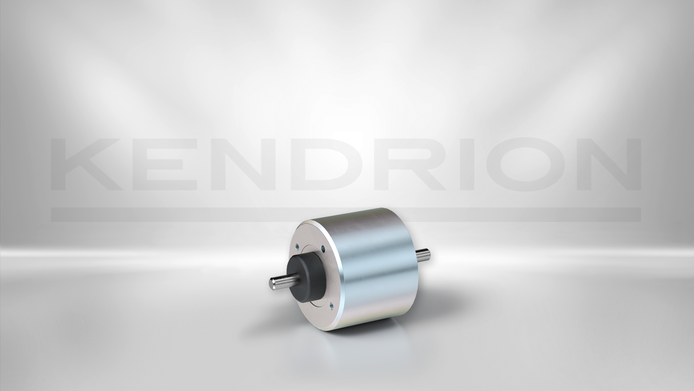

Rotary Solenoid Type D 3	D 39-BOR-F-DS9420-24V DC 100 ED	monostable	95°	0.18	1.2	Spring return	round	24	100	6	B 130 °C	Leads 20 cm	Diameter 35 / Length 27, 5 mm	150	to the product

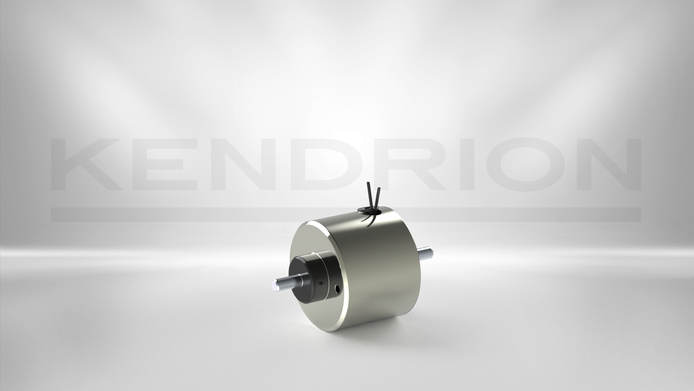

Rotary Solenoid Type D 3	D 34-BOR-F-DS9420-24V DC 100 ED	monostable	45°	0.65	1.6	Spring return	round	24	100	6	B 130 °C	Leads 20 cm	Diameter 35 / Length 27, 5 mm	150	to the product

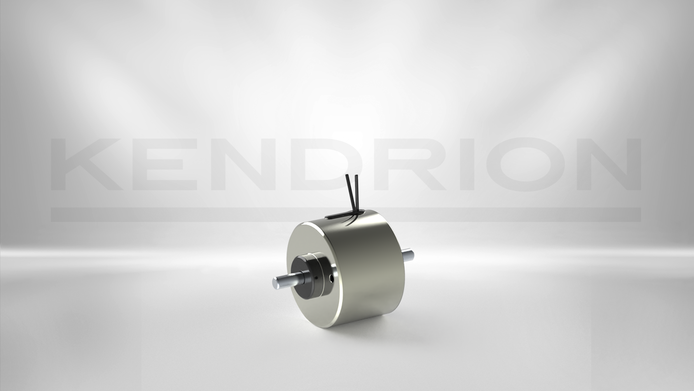

Rotary Solenoid Type D 5	D 54-BOR-F-24V DC 100 ED	monostable	45°	3.6	9.3	Spring return	round	24	100	10	B 130 °C	Leads 20 cm	Diameter 50 / Length 35 mm	380	to the product
Rotary Solenoid Type D 5	D 59-BOR-F-DS9420-24V DC 100 ED	monostable	95°	0.8	7.2	Spring return	round	24	100	10	B 130 °C	Leads 20 cm	Diameter 50 / Length 35 mm	380	to the product
Rotary Solenoid Type D 6	D 64-BOR-F-DS9420-24V DC 100 ED	monostable	45°	6	20	Spring return	round	24	100	13.4	B 130 °C	Leads 20 cm	Diameter 60 / Length 41, 5 mm	600	to the product

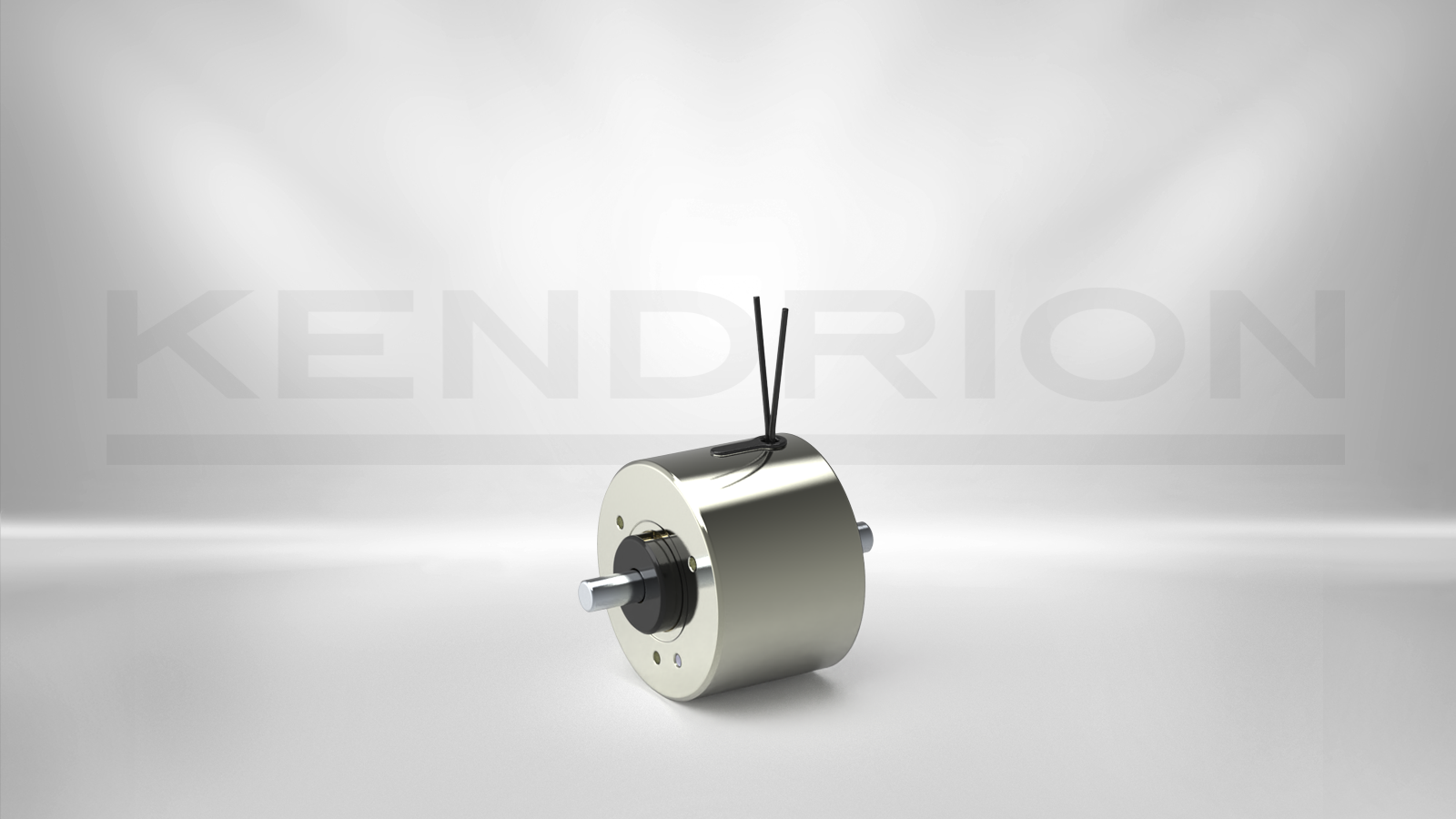

Rotary Solenoid Type D 6	D 69-BOR-F-DS9420-24V DC 100 ED	monostable	95°	1.3	15	Spring return	round	24	100	13.4	B 130 °C	Leads 20 cm	Diameter 60 / Length 41, 5 mm	600	to the product
Rotary Solenoid Type D 7	D 74-BOR-F-24V DC 100 ED	monostable	45°	23	40	Spring return	round	24	100	19.7	B 130 °C	Leads 20 cm	Diameter 75 / Length 53 mm	1400	to the product

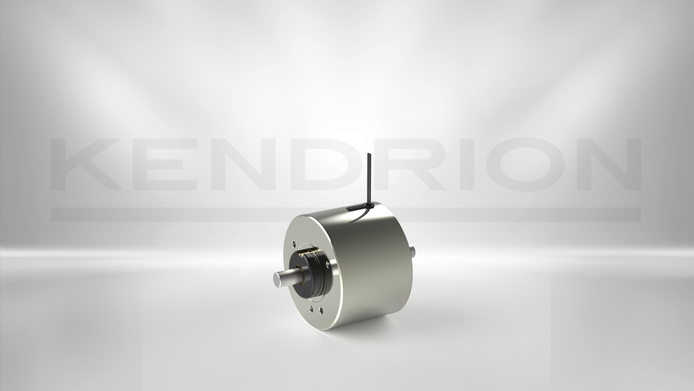

Rotary Solenoid Type D 7	D 79-BOR-F-DS9420-24V DC 100 ED	monostable	95°	6.2	26	Spring return	round	24	100	19.7	B 130 °C	Leads 20 cm	Diameter 75 / Length 53 mm	1400	to the product

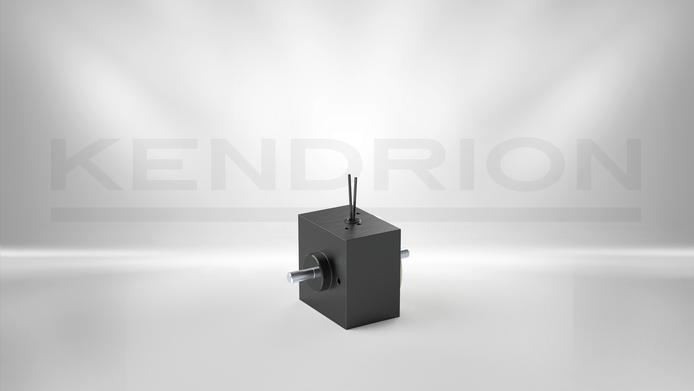

Rotary Solenoid Type E 5	E 59-BOR-F-DS9420-24VDC 100 ED	monostable	95°	1.8	12.7	Spring return	rectangular	24	100	19.2	B 130 °C	Leads 20 cm	50 x 50 mm / Length 35 mm	570	to the product
Compact Rotary Solenoid CDR	CDR030.000090 (with Hall sensor)	bistable	90°	1.2	3.5	Electrical	Rectangular	24	15	30	B 130° C	Leads 20 cm	30 x 30 mm / Length 46 mm	125	to the product
Compact Rotary Solenoid CDR	CDR030.000001	bistable	90°	1.2	3.5	Electrical	Rectangular	24	15	30	B 130° C	Leads 20 cm	30 x 30 mm / Length 46 mm	125	to the product
Compact Rotary Solenoid CDR	CDR030.000060 (with Hall sensor)	bistable	60°	1.5	3	Electrical	Rectangular	24	15	30	B 130° C	Leads 20 cm	30 x 30 mm / Length 46 mm	125	to the product

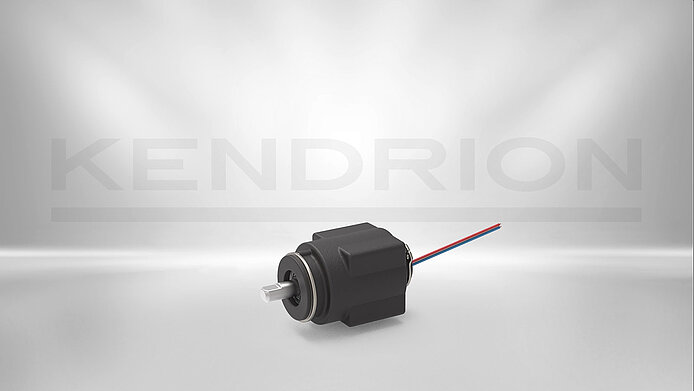

Compact Rotary Solenoid CDR	CDR030.000002 (with damper)	bistable	90°	1.2	3.5	Electrical	Rectangular	24	15	30	B 130° C	Leads 20 cm	30 x 30 mm / Length 46 mm	125	to the product
Compact Rotary Solenoid CDR	CDR030.000045 (with Hall sensor)	bistable	45°	1.7	2.8	Electrical	Rectangular	24	15	30	B 130° C	Leads 20 cm	30 x 30 mm / Length 46 mm	125	to the product
Rotary Solenoid PDM050	PDM050.000037	monostable	30°	-	-	Electrical	Round	24	10	100	B 130° C	Plug	Diameter 55 / Length 73 mm	-	to the product
Rotary Solenoid PDM050	PDM050.000039 (bistable)	bistable	30°	-	-	Electrical	Round	24	10	100	B 130° C	Plug	Diameter 55 / Length 73 mm	-	to the product

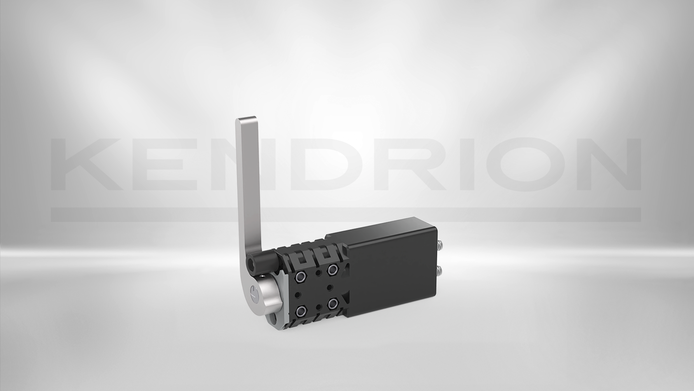

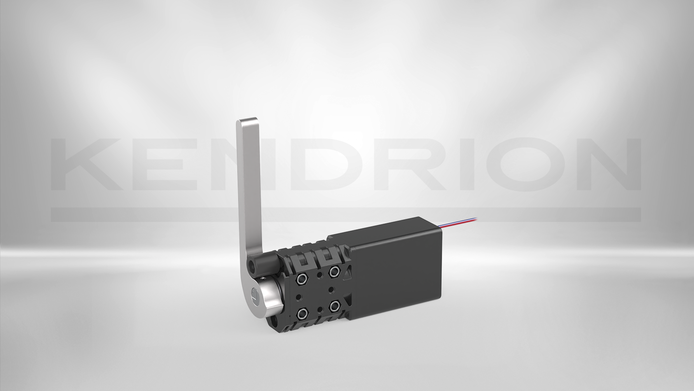

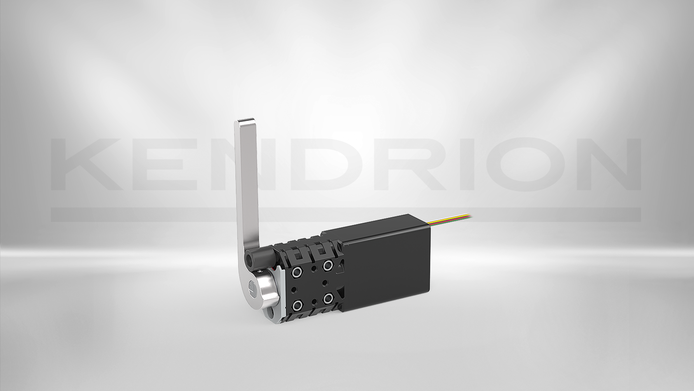

Rotary Solenoid BSM043	BSM043.000001	bistable	90°	-	-	Electrical	Rectangular	24	100	10	B 130° C	Leads 10 cm	43 x 26 mm / Length 117 mm	-	to the product
