Rubber-coated flat grippers
Flat grippers with rubber coat for reliable holding and gripping
Kendrion offers permanent magnetic flat grippers in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo. A rubber coating serves as mechanical protection. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the rubber-coated flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets with rubber coat are non-aging and have a high holding force.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(23)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Thread
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rubber-covered flat gripper NdFeB
|
550 4054 12 | with threaded bush | Neodym | 10 | 12 | 7 | 6 | M4 | 60 | rubber coated | - | 14.8 | 8 | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4054 22 | with threaded bush | Neodym | 50 | 22 | 6 | 13 | M4 | 60 | rubber coated | - | 11.5 | 8 | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4054 31 | with threaded bush | Neodym | 75 | 31 | 6 | 22 | M4 | 60 | rubber coated | - | 11.5 | 8 | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4054 43 | with threaded bush | Neodym | 85 | 43 | 6 | 30 | M4 | 60 | rubber coated | - | 10.5 | 8 | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4054 66 | with threaded bush | Neodym | 180 | 66 | 8.5 | 105 | M5 | 60 | rubber coated | - | 15 | 10 | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4054 88 | with threaded bush | Neodym | 420 | 88 | 8.5 | 192 | M8 | 60 | rubber coated | - | 17 | 12 | to the product |
|
Rubber-covered flat gripper NdFeB
|

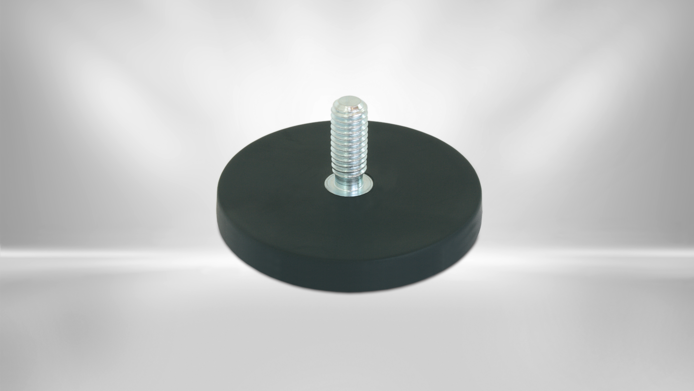

550 4055 22 | with threaded pin | Neodym | 50 | 22 | 6 | 11 | M4 | 60 | rubber coated | - | 12.5 | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4055 43 | with threaded pin | Neodym | 85 | 43 | 6 | 32 | M6 | 80 | rubber coated | - | 21 | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4055 66 | with threaded pin | Neodym | 180 | 66 | 8.5 | 107 | M8 | 80 | rubber coated | - | 23.5 | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4055 88 | with threaded pin | Neodym | 420 | 88 | 8.5 | 193 | M8 | 80 | rubber coated | - | 23.5 | - | to the product |
|
Rubber-covered flat gripper NdFeB
|

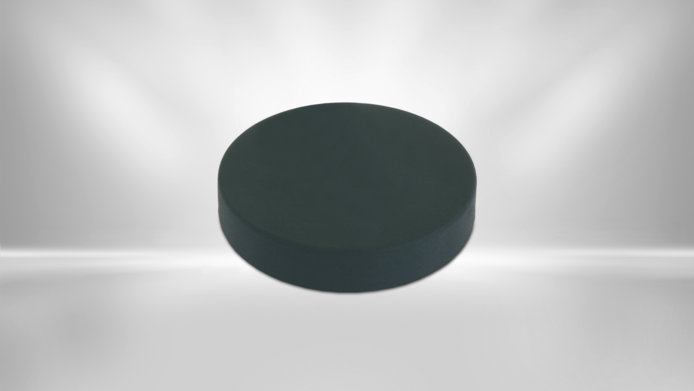

550 4056 22 | without thread | Neodym | 50 | 22 | 6 | 9.5 | - | 60 | rubber coated | - | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4056 31 | without thread | Neodym | 75 | 31 | 6 | 25 | - | 60 | rubber coated | - | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4056 43 | without thread | Neodym | 85 | 43 | 6 | 28 | - | 60 | rubber coated | - | - | - | to the product |
|
Rubber-covered flat gripper NdFeB
|

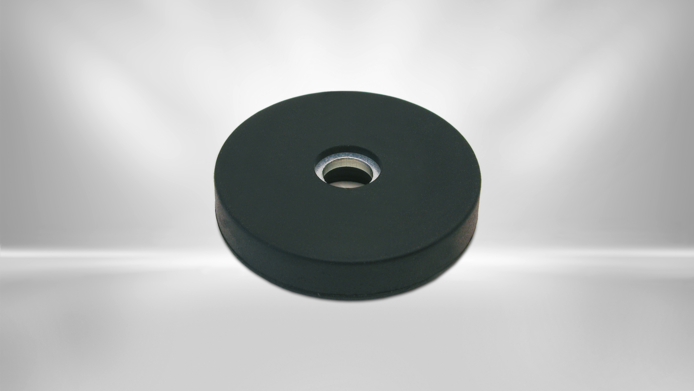

550 4057 22 | with cylinder bore | Neodym | 35 | 22 | 6 | 8 | - | 60 | rubber coated | 8.2 | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4057 31 | with cylinder bore | Neodym | 75 | 31 | 6 | 20 | - | 60 | rubber coated | 9 | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4057 43 | with cylinder bore | Neodym | 85 | 43 | 6 | 27 | - | 60 | rubber coated | 12.8 | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4057 57 | with cylinder bore | Neodym | 175 | 57 | 7.6 | 77 | - | 60 | rubber coated | 25.3 | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4057 66 | with cylinder bore | Neodym | 210 | 66 | 8.5 | 100 | - | 60 | rubber coated | 25 | - | - | to the product |
|
Rubber-covered flat gripper NdFeB
|

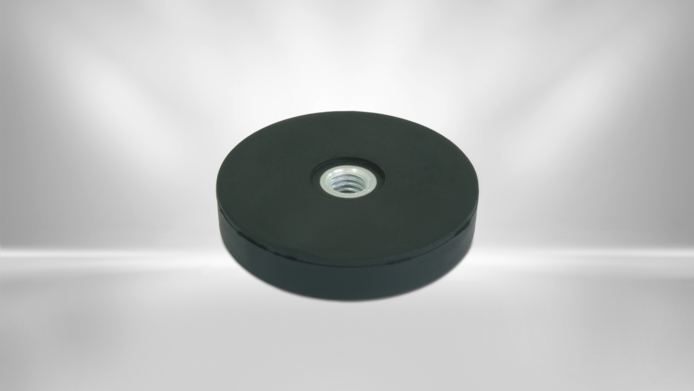

550 4058 22 | with internal thread | Neodym | 35 | 22 | 6 | 9 | M4 | 60 | rubber coated | - | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4058 31 | with internal thread | Neodym | 75 | 31 | 6 | 21 | M5 | 60 | rubber coated | - | - | - | to the product |
|
|
Rubber-covered flat gripper NdFeB
|
550 4058 43 | with internal thread | Neodym | 85 | 43 | 6 | 29 | M4 | 60 | rubber coated | - | - | - | to the product |
