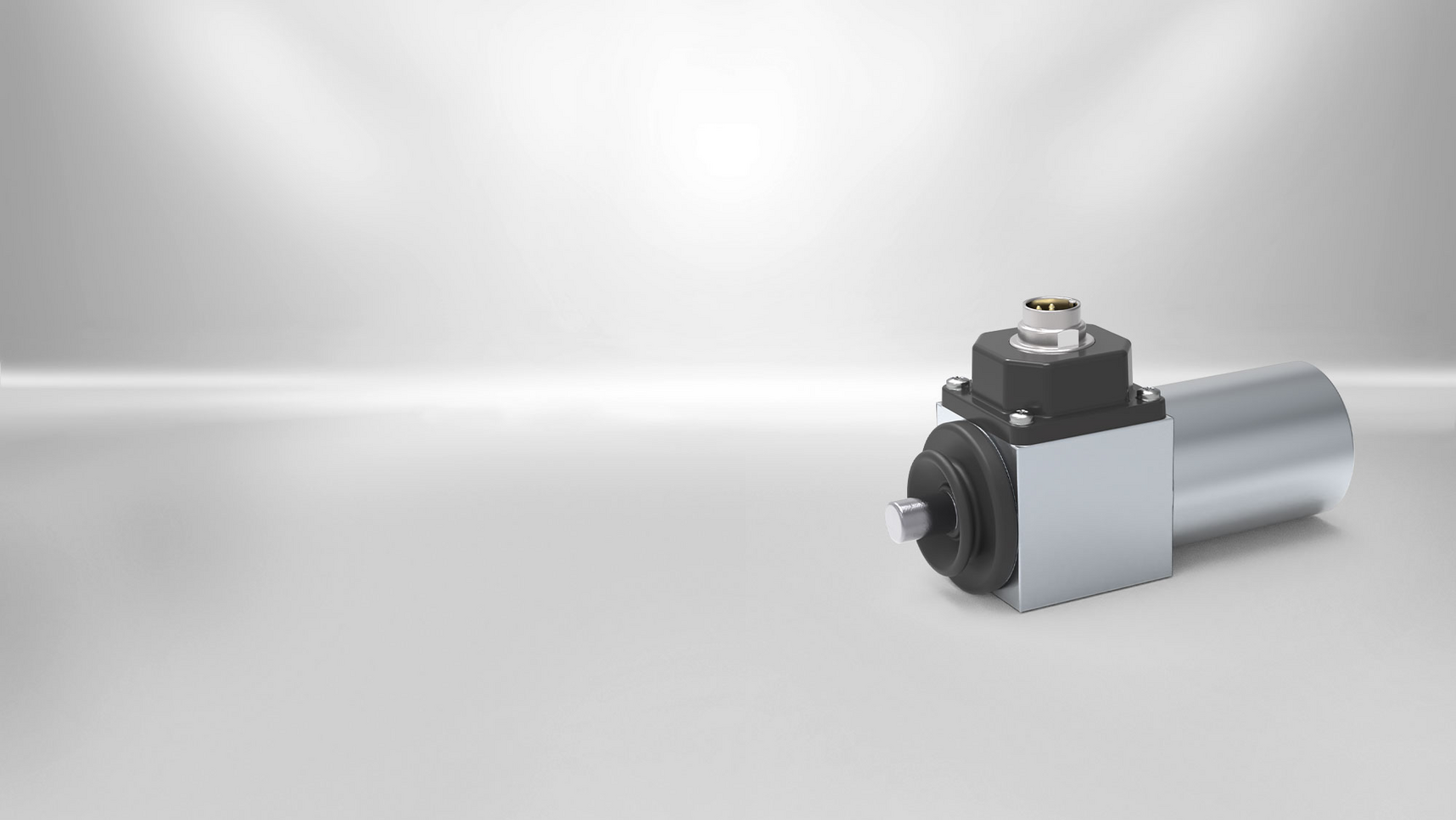

Locking solenoids with impressively high forces in a compact design.

Locking solenoids from KENDRION are locking units, especially for use in protective devices. During the development, special attention has been paid to a compact design, long service life, and high lateral force load-bearing capacity.
Electromagnetic locking units are used in safety devices of machines and all kinds of automation equipment, and as direct function in sequence controls.

Depending on the requirements, two types of solenoids are available.

1. Devices unlocked without voltage, in which a spring resets the locking bolt.
2. Devices locked without voltage, in which an electromagnetic force resets the locking bolt.

The locking magnets of the LLV series achieve a lateral force load-bearing capacity of up to 4,000N thanks to the separate installation of the magnet armature and locking bolts in maintenance-free bearings with high resistance to wear. The locking bolt is manufactured out of non-corrosive and non-magnetic stainless steel.

Integrated feedback of the locking function

The microswitch is built directly into the bolt housing and signals the respective position of the bolt approx. 0.5 mm to 1 mm after leaving the stroke starting position or before reaching the stroke end position.


Would you like to find out more about our locking solenoids?

You can find all the technical data, drawings and 3D models for our standard variants in our Productfinder.

To the productfinder

Benefits at a glance

  • Compact design
  • Universal mounting options
  • Integrated feedback of locking function
  • Available with high protection class
  • High radial force load-bearing capacity

Technical Data

Parameter Value
Supply Voltage 24 V DC / 230 V AC
Duty cycle 100 %
Stroke 8 - 15 mm
Force 0,5 - 50 N
Radial force 1.000 - 4.000 N
Thermal class F
Protection class device IP40 / IP64
Installation type By threaded holes at front and bottom side
Protection class connection IP40 / IP64
Accessories Female connector with/without integrated bridge rectifier
Connector plug
Locking pin housing
Diameter of Locking pin 10-16 mm

Downloads

Changes and errors reserved. All rights reserved by the respective copyright holders.

Brochures and Flyers
Catalogue | Locking Solenoids
pdf - 5 MB
Brochures and Flyers
Technical Explainations | Electromagnets & Actuators
pdf - 2 MB
Datasheet | Locking solenoid with limit switches LLV0500014
pdf - 703 KB
Brochures and Flyers, Datasheets
Digital Brochure | Locking Line: Products and Applications
pdf - 11 MB
