Product Information

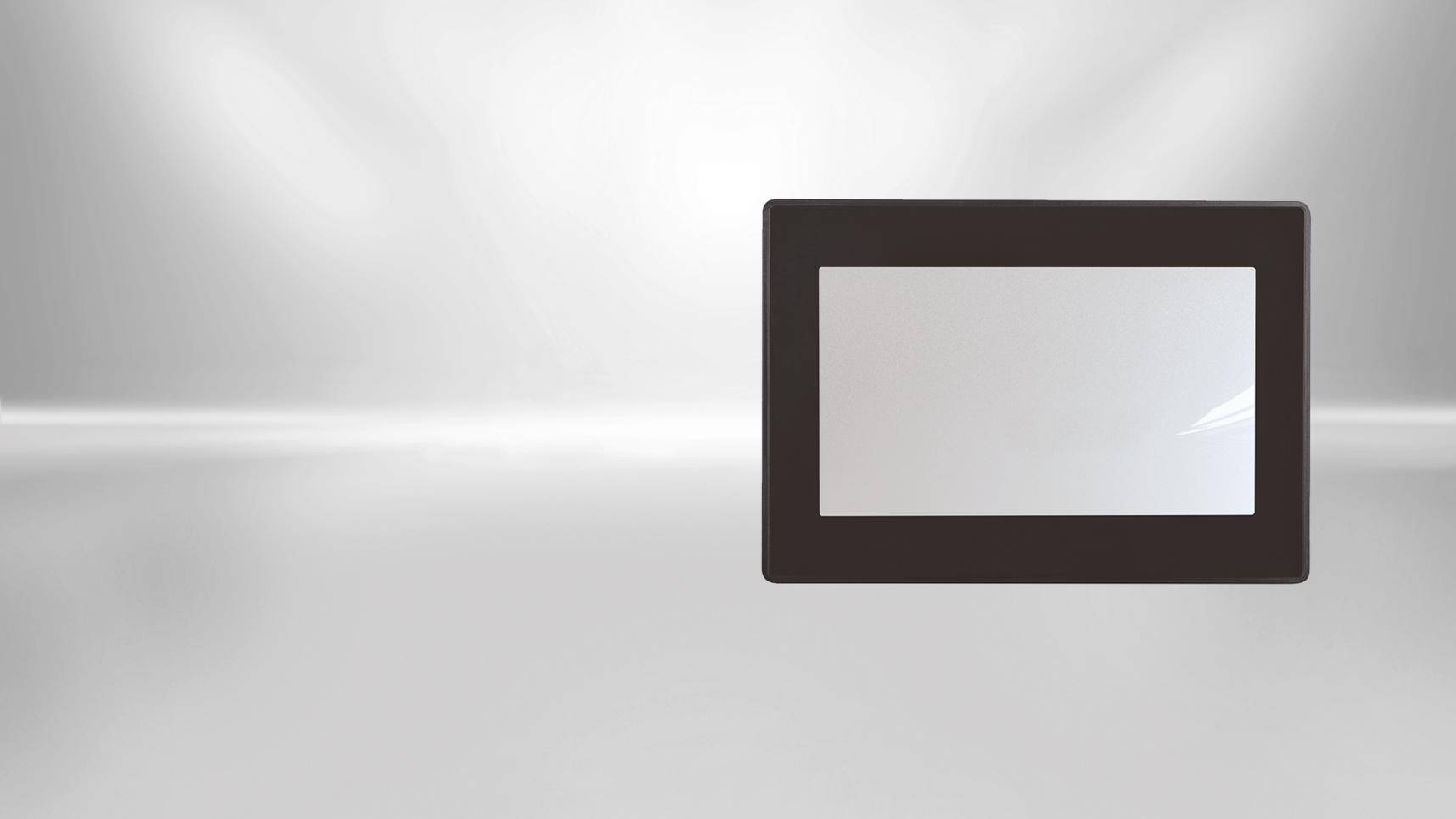

With the new single or multi-touch capable web terminal Vico Web it is now possible to display HTML5 visualisations, web pages or other displays. The standard web terminal has an integrated web browser and requires no further programming.

The visualisation is provided by the web server. An HTML5 capable browser runs on the Vico WEB. This can connect with several different CODESYS-compatible controllers with WebVisu. The connection to the various web servers is made via the HTML protocol, so there are no additional costs or additional licenses. All modern visualisation functions of CODESYS Web Visualisation are supported. The display of process data from the web server is very practical, especially for extensions or modernisations with additional visualisation and operating devices.

The Vico Web family comprises several devices with scalable processor and display technology from 4.3 to 10 inches and also complements existing machine concepts in an excellent way to create modern automation solutions that are available everywhere. They all have an industry-oriented device design and are available for long-term use.







Benefits at a glance

  • Widescreen display with LED backlight
  • Fanless processor technology
  • ARM Cortex-A8 processor technology with graphics acceleration
  • Industrial interfaces
  • Visualization with installed Chromium internet browser
  • Seamless sealing against dust, dirt and spray water (front side)

General Technical Specifications

Parameter Value
Type Vico 04
Display size / resolution 4,3" / 480 x 272 (PSP)
7" / 800 x 480 (WVGA)
10,1" / 600 x 480 (1024x600, WSVGA)
Touch screen 4-wire analogue resistive
Backlight LED white
Processor ARM Cortex-A8 - 1 GHz
Software Chromium (open source internet browser)
Drives 4 GB Flash
Networks Ethernet 10/100 Mbit – RJ45
Interfaces RS-232, RS-485, USB,
Operating voltage 24 V DC
Operating temperature 0°C ... +50°C
Protection class: Front: IP 66; rear: IP 20
Front panel Plastic front panel with black insert foil, seamless sealing against dust, dirt and splash water

Datasheet Download

Datasheets
Datasheet | Web Terminal with 4.3'', 7'' and 10.1'' (Kuhnke Vico 04 Web)
pdf - 646 KB
