Product Information

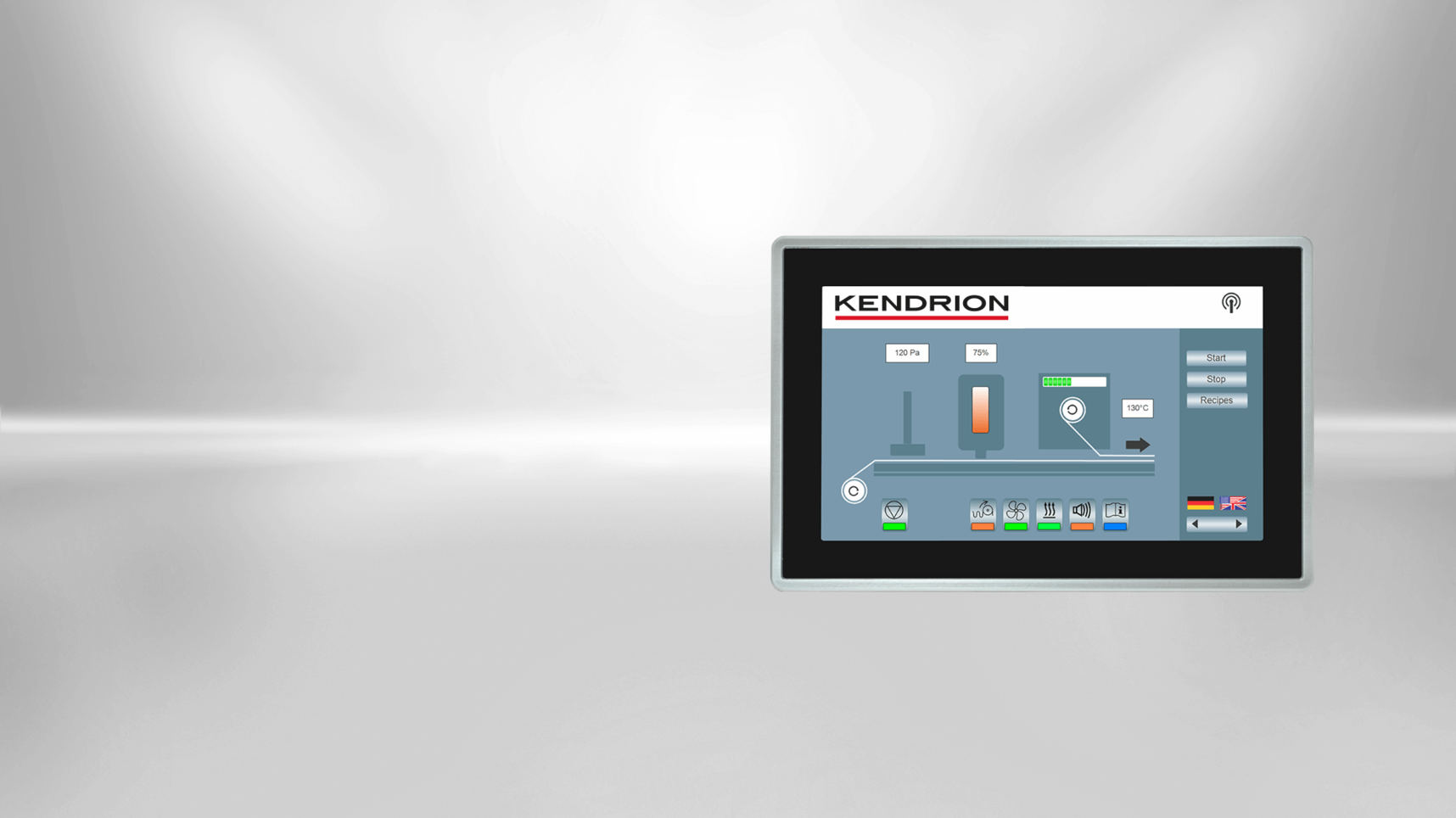

The Scout panel PLC by KENDRION combines visualisation, touch control and control electronics in one unit. Modern fieldbus interfaces and a CODESYS V3 PLC turn Scout by KENDRION into a cost-effective control system for industrial applications.

The fanless PLC with touch panel Ventura Scout using PXA processor technology combines compactness with durability and performance. Modern fieldbus interfaces, CODESYS PLC and non-volatile memory enables the use of the Ventura Scout as an inexpensive industrial control for machines and plants.

The edge-free and seamless polyester front foil has a high chemical resistance to cleaning agents and solvents. With its small mounting depth, Scout is particularly suitable for operating and control tasks in confined spaces.



Benefits at a glance

  • Touch front without edges
  • Industrial standard
  • CODESYS V3

General Technical Specifications

Parameter Value
Type Scout
Display size / Resolution 4.3" / 480 x 272 (PSP)
7" / 800 x 480 (WVGA)
10.4" / 600 x 480 (VGA)
12.1" / 800 x 600 (SVGA)
15" / 1024 x 768 (XGA)
Touch screen 4-wire analogue resistive
Backlight White LED, service life > 50000 h (at 50% max. brightness)
Processor 32 Bit
Non-volatile memory 8 ... 128 KB
Drives Flashdisk, SD-Card Slot, SSD
Operating system Windows® Embedded CE 6.0 / WEC7
Software CODESYS V3 Soft SPS, Visualisation software
Interfaces RS-232, RS-485, USB 2.0, (integrated I/Os)
Network Ethernet 10/100 Mbit
Fieldbus interface CAN galvanically isolated, EtherCAT over Ethernet
Supply voltage 24 V DC
Operation temperature 0 °C ... +50 °C
Housing IP 20, galvanized steel sheet casing
Front panel IP 65, aluminum with seamless film cover, protection against dust, dirt and splash water

Datasheet Download

Datasheets
Datasheet | HMI with Control Function (Kuhnke Vico 04 PLC)
pdf - 667 KB
Datasheets
Datasheet | Panel PLC with 7'' Touch (Kuhnke Scout 706)
pdf - 673 KB
Datasheets
Datasheet | Panel PLC with 10.1'' Multitouch (Kuhnke Scout MT 1006)
pdf - 665 KB
Datasheets
Datasheet | Touch Panel PLC with 12.1'' (Kuhnke Scout 1206)
pdf - 655 KB
