Small but with big functions

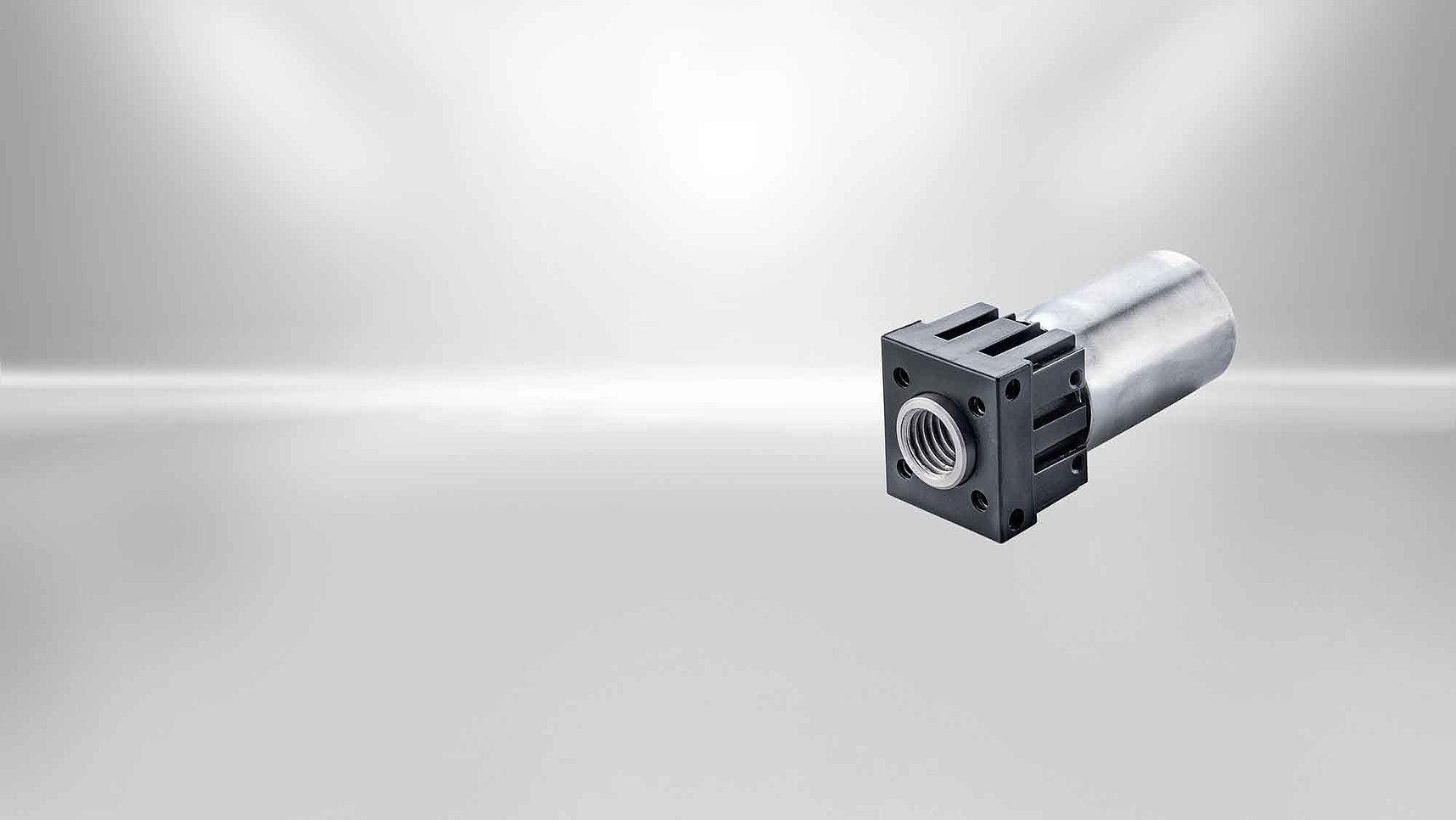

The bistable locking magnet LLB impresses with its diverse possibilities - battery operation, position monitoring, and emergency unlocking.

In addition to high security and quality, the compact bistable locking magnet LLB offers many other advantages. The magnet can be operated with a battery for mobile applications such as locking toolboxes or hospital side tables. Due to its energy-saving functional principle - only a short current increase is required for locking - at least 50,000 switching operations can be achieved with a battery.
The LBB can be equipped with a Hall sensor for end position detection. The functionality of the bistable lock can thus be safely monitored. Manual emergency unlocking can also be ensured as an option.

Energy-saving design

The bistable locking unit is based on a lifting magnet that can be operated via a power supply unit as well as a battery. The locking bolt is held open with the help of a return spring. When the power is supplied, the magnet triggers, and the bolt is extended. The locking bolt is kept currentless in the closed state by the force of a permanent magnet. Depending on the version, the solenoid can save up to 95% energy, but the bolt still reliably withstands lateral forces of 1.000 N.





Benefits at a glance

  • Low energy consumption
  • Battery operation possible
  • Compact and cost-optimal design

Technical Data

Parameter Value
Supply Voltage 24 V DC
optional: lithium battery 6 AM6 9V/1200mA
Duty cycle 25 %
Stroke 7 mm
Permanent magnetic Force 30 N
Radial force 1.000 N front side installation
500 N lateral installation
Protection class: connector / solenoid IP30 / IP00
Position detection (optional) Hall sensor
Minus switching, 5 - 30 V, max. 30 mA
Installation type By threaded holes at front and bottom side
Diameter Locking pin 15 mm

Downloads

Brochures and Flyers
Data Sheet | Bistable Locking Solenoid LLB
pdf - 255 KB
Brochures and Flyers
Technical Explainations | Electromagnets & Actuators
pdf - 2 MB
Brochures and Flyers, Datasheets
Digital Brochure | Locking Line: Products and Applications
pdf - 11 MB
Watchthe video
Find out why the locking solenoid LLB is suitable for battery operation, is energy-saving and combinable with RFID.
