Professional Laundry Lock
Kendrion is the specialist for customised locking technology. We develop and produce our door locks based on our many years of extensive experience in a wide variety of fields. The Professional Laundry Lock RL was developed especially for industrial washing machines, but is also suitable for other applications where a secure lock has to be guaranteed by means of a rotary bolt/primer.
Industrial washing machines
Baking ovens, combi steamers
Climate chamber, environmental test chamber
Laboratory steriliser, laboratory incubator
We offer a high degree of flexibility and can provide both custom-made products and a standard range.

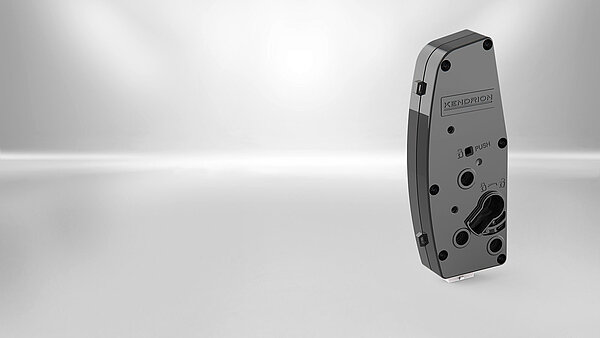

NEW: Professional Laundry Lock RL
Door locks of professional washing machines must be extremely robust and even in the event of improper operation, e.g. vandalism, they must ensure that the door cannot be opened during the washing process.
The new Professional Laundry Lock from KENDRION has been developed especially for industrial washing machines.
A mechanical lock in combination with a bistable solenoid, end position sensors for the closed and the locked position of the door, as well as central connectors and an emergency opener result in a highly compact unit. Technically high-quality plastics enable increased strength and a long product life at high ambient temperatures.
Technical Data
| Operating voltage | 24 V DC & 12 V DC (another voltage on request) |
| Duty cycle | 15% |
| Nominal power | 24 W (short impulse min. 100 ms and max. 2 s) |
| Dimension (Width x Length x Depth) | Width 70 mm, length 174 mm and depth 30 mm |
| Seal compression distance | 4 mm |
| Rotation angle | 60° |
| Mounting | Door lock installed on the left side. Door hinge on the right side |
| Seal compression | Up to 400 N |
| Sensors | 2 to 3 microswitches for detecting “door-closed” and “door locked” |
| Ambient temperature | 5 – 80° C |
| Lifetime | 30.000 cycles |
| Vibration resistance | Up to 14 g in all axis |
| Certificate | RoHS and UL-listed materials |
