Solenoid lock for professional in-store ovens

Kendrion is specialist for professional door locks

Kendrion is a specialist in the field of secure door locks. Locks installed in in-store ovens must be safe to use and at the same time offer high reliability.

Reliable door lock for hot air ovens

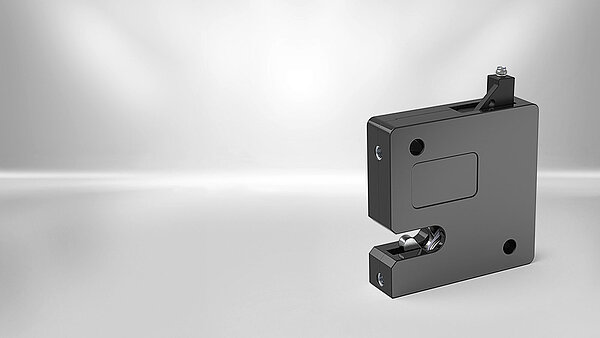

Kendrion has developed the SL7010 solenoid lock for reliable locking of the in-store baking oven. A linear solenoid enables simple activation and combines quick unlocking with pleasant acoustics. An integrated microswitch enables position sensing of the lock.

With a very high holding force of at least 1,600 N and shock resistance up to 100 g, Kendrion now offers a solenoid door lock focused on safety.

Quick facts: solenoid door lock

available function self-locking (SL) and active-locking (AL)
dimensions: 70x70x18mm
Max. static holding force: 1,600N
Max. load force for electrical unlocking: 400 N

Do you need more information?

To the Solenoid door locks

Download solution example

Brochures and Flyers

Application Report | Solenoid Lock for in-store ovens

PDF - 248 KB

Benefits at a glance

small size
intelligent locking mechanism
high locking force
Emergency release and surveillance the closed position
long service life

Solenoid Door Lock SL/AL

Our standard magnetic lock SL7010 is ideal for use in a wide range of industrial applications. It impresses with its long service life, its compact design and above all with its security features.

Single Stroke Solenoids

Single-stroke solenoids made in cost-efficient open-frames technology

Kendrion offers compact electromagnetic locks in an extremely robust design for the safe locking of industrial washing machines.

Door lock for washing machines

The combination of mechanical locking, power-reduced bistable linear solenoid, end position sensors as well as central plug and emergency opener results in a compact unit.

Motorized Door Locks

A combination of mechanical locking, motor drive unit, end position sensors, and electronics are implemented in the motorized door lock by KENDRION.

Product Guide

Need help choosing the right product?

Our new Product Guide takes you through the process of finding the product you need, step by step. Supported by intelligent questions, the guide will lead you to the perfect match. Finally, you will receive all the technical data and downloads available.

Start Guide
