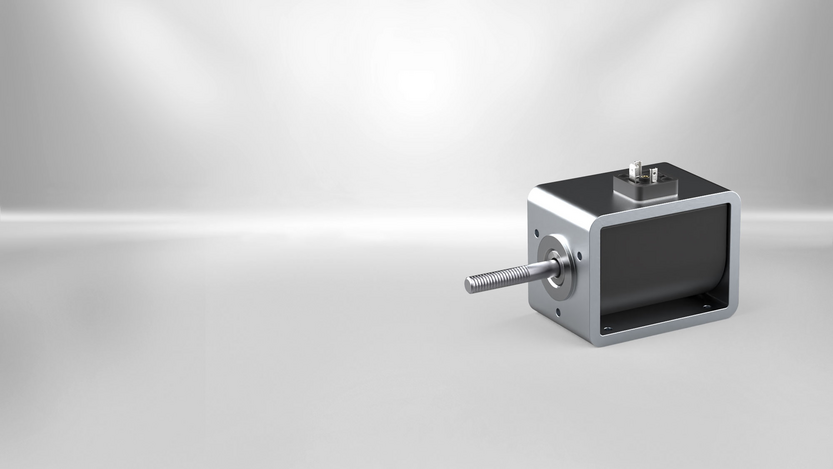

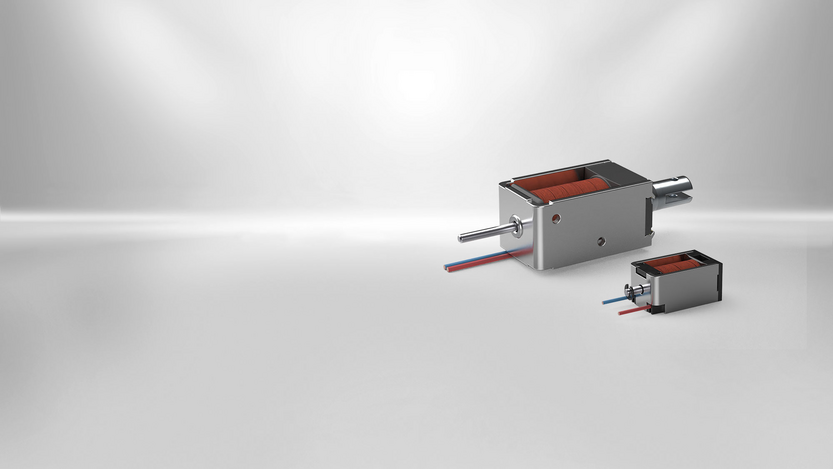

Single stroke solenoids from stock or tailored

KENDRION single stroke solenoids made in open-frames technology are available in a wide variety of versions. Our preferred types with push or pull solenoid or as combi type solenoid with integrated return spring are available in small quantities directly from stock.

Depending on the required quantity, solenoids can be tailored to the requirements of the respective application at low cost. Possible modifications include e.g. modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.





Benefits at a glance

  • Compact design
  • Low power consumption
  • High forces
  • Short switching times
  • Maintenance-free
  • Versatile in application

General Technical Specifications

Technical Data Value
Nominal voltage 24 V DC / 205 V DC and other voltages on request
Duty cycle 100% ED / 40 / 25 / 5% ED on request
Coil terminals Flying leads, standard length 10 cm / other dimensions on request
Nominal stroke 1.8 mm - 30 mm
Initial force 0.03 N - 35 N
Thermal stability E / B
Protection class solenoid IP 00
Protection class connection IP 00

Downloads

Brochures and Flyers, Solenoids & Actuators, Building Technology
Application report | Access Control turnstiles
pdf - 271 KB
Brochures and Flyers
Flyer | Overview Single Stroke Linear Solenoid H Line
pdf - 185 KB
English
